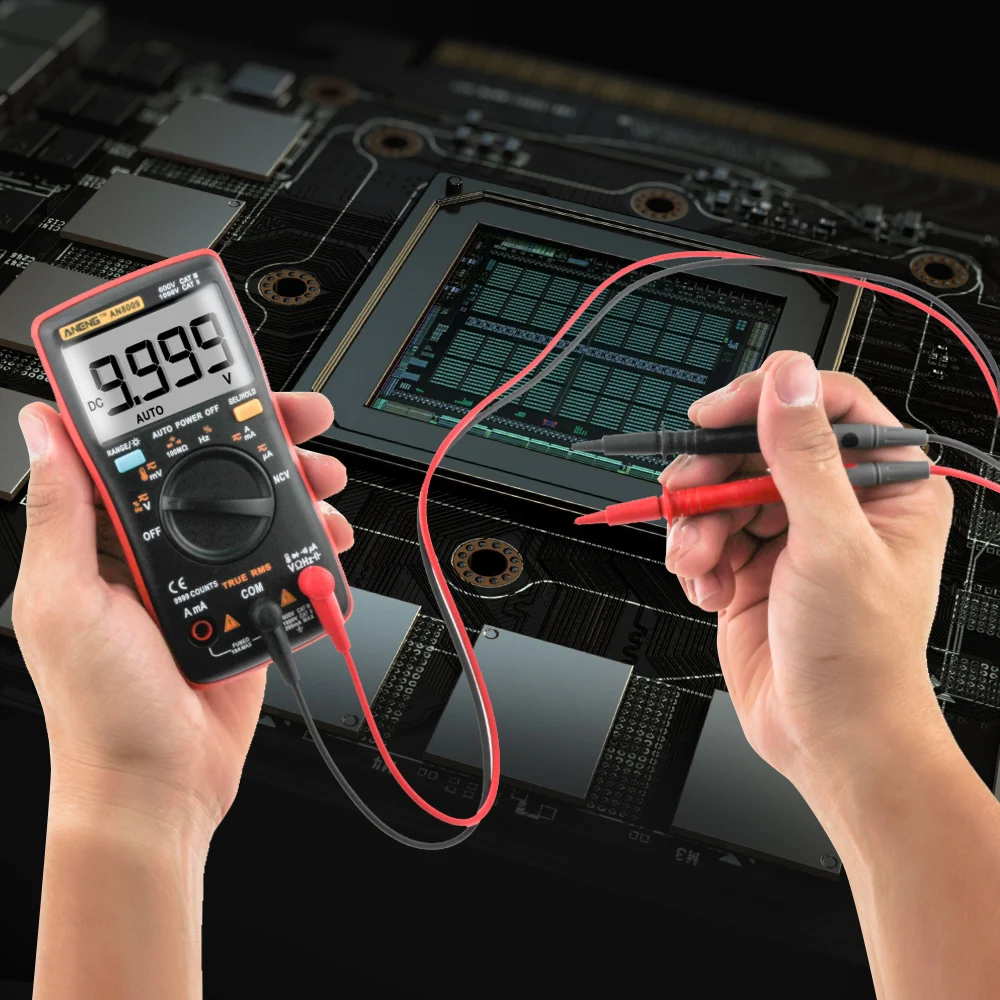

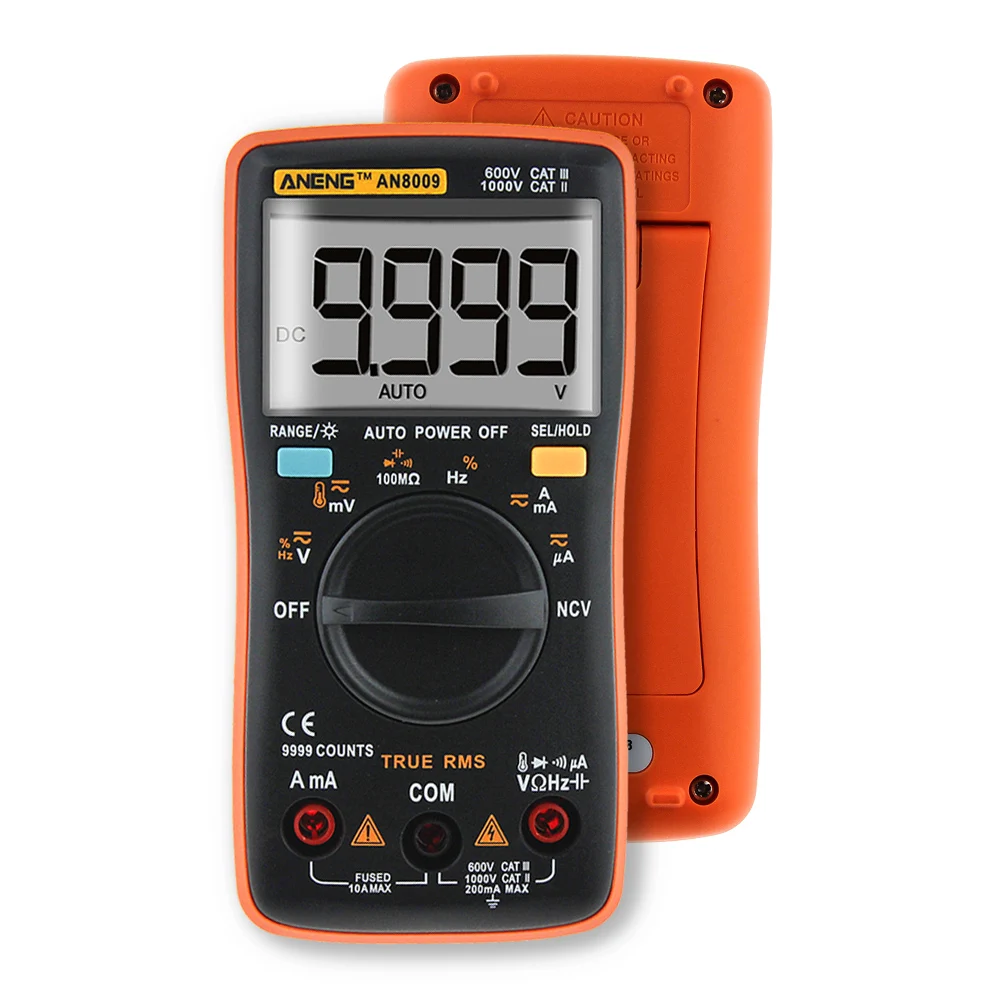

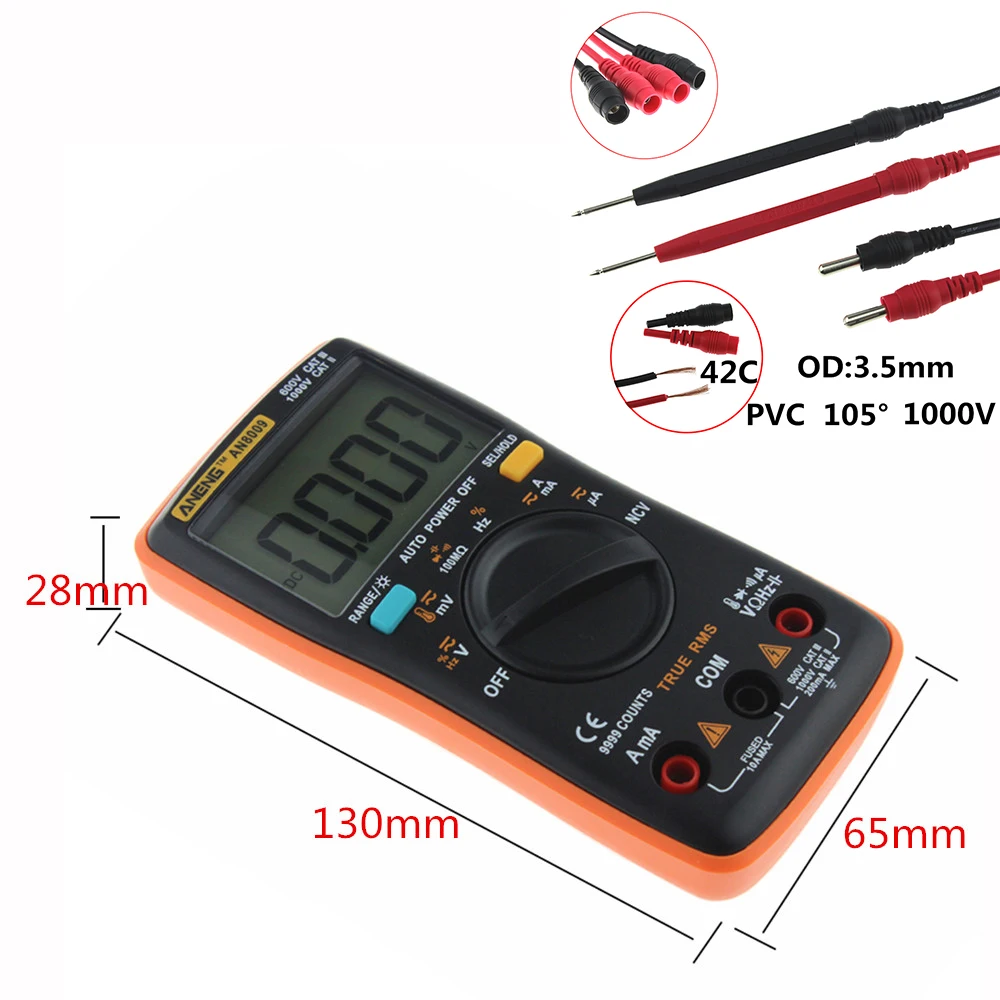

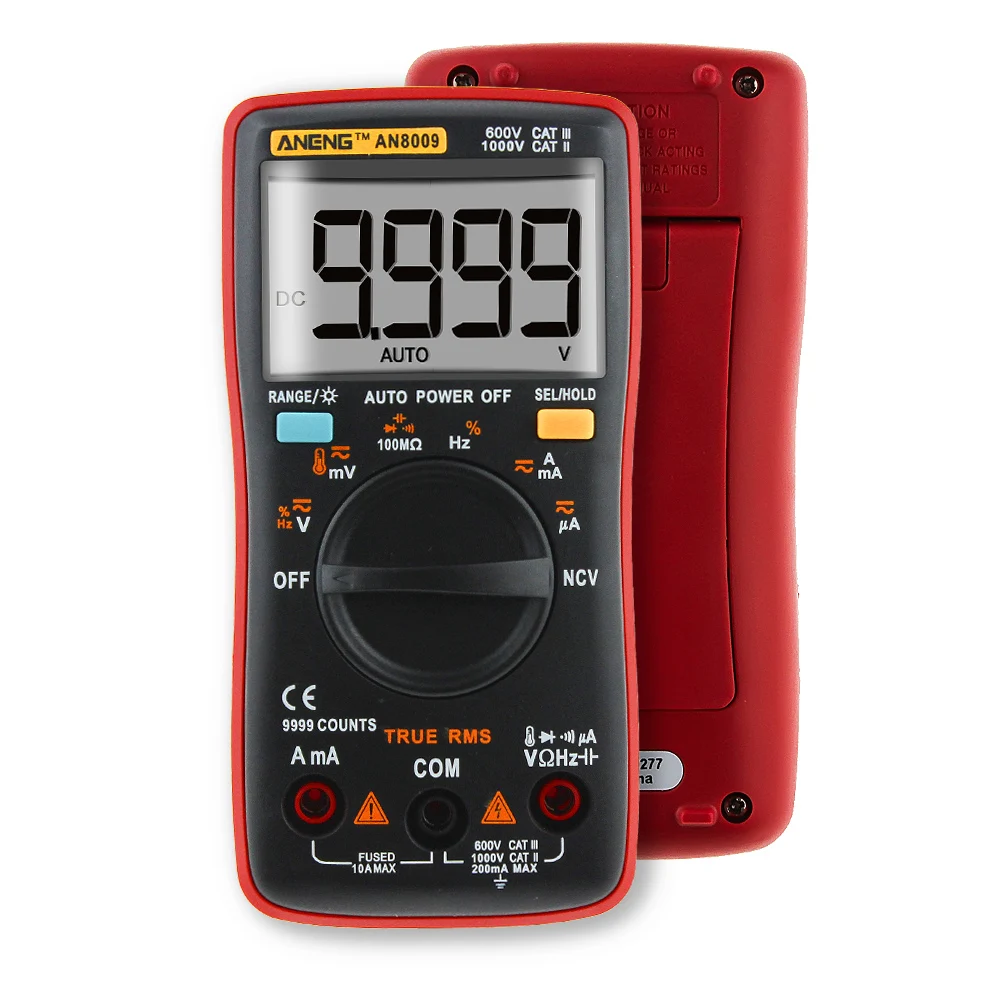

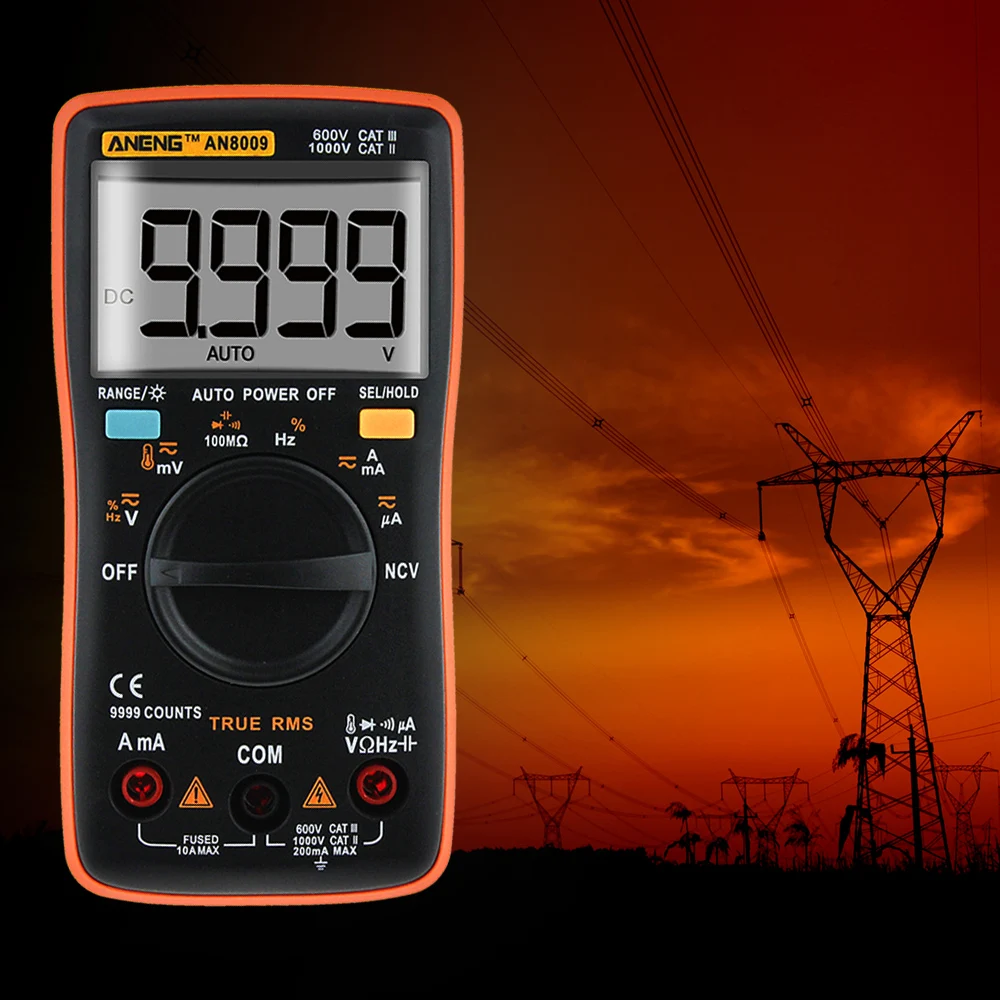

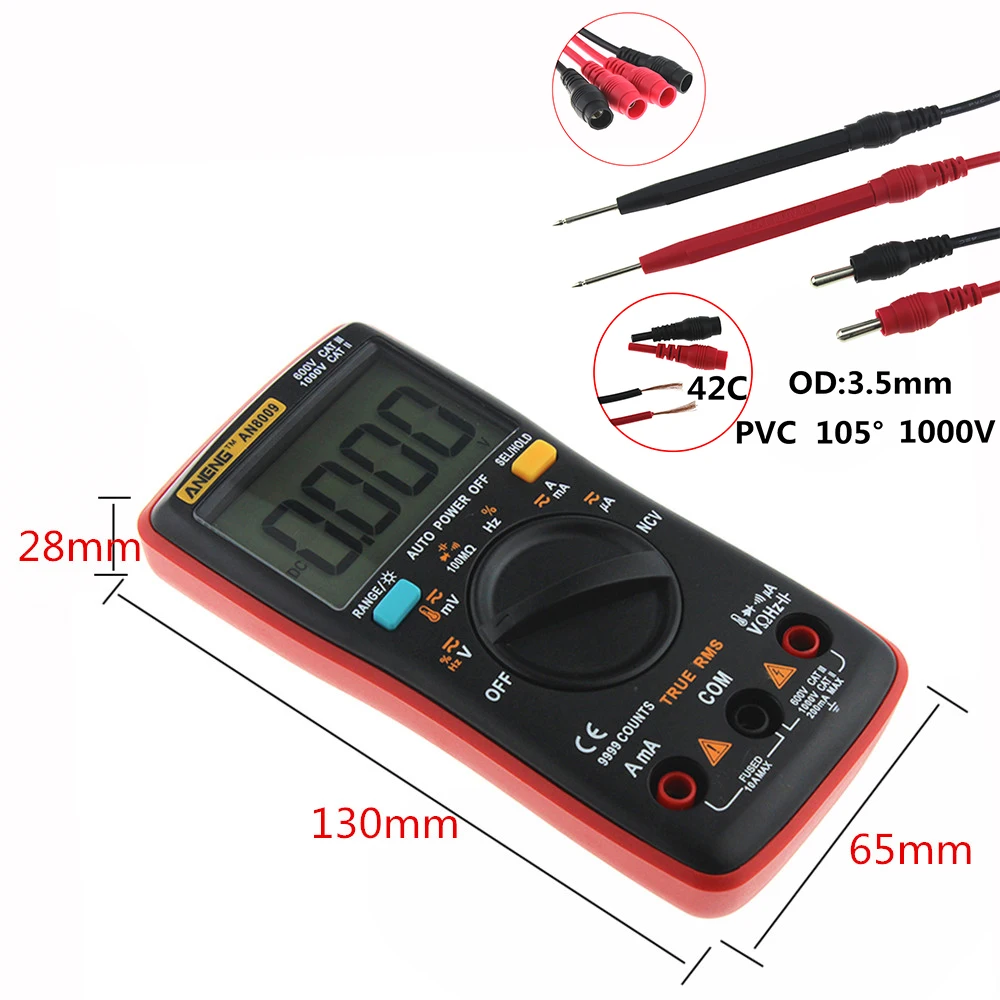

ANENG AN8009 is one of the first 9999 count, auto-range digital multimeter. This product is battery-powered with true-rms, LED display and backlight. Digital multimeter model can measure AC / DC voltage, DC Current, Resistance, Continuity, Diodes, Transistor hFE and so on. Portable, and easy to use. It can service well in fielf of maintenance of auto, electrical engineering and teachig lab, ect.

Features:

With large overview backlit LCD display, date can be shown clearly.

Backlight can make display easy to read in the dark condition.

Small size, portable with a pouch, you can take it to anywhere you need it.

Compact ergonomic design, looks very nice.

One-handed operation perfect choice for carry-on measuring.

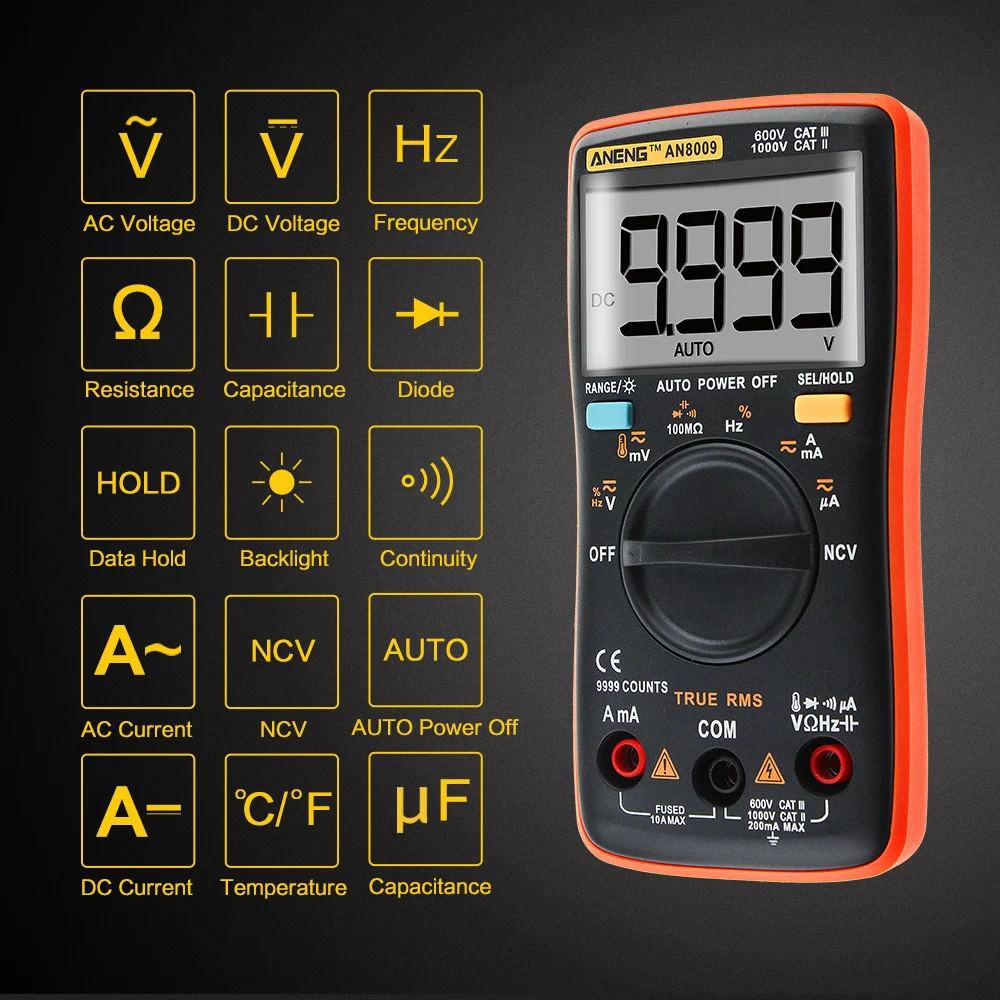

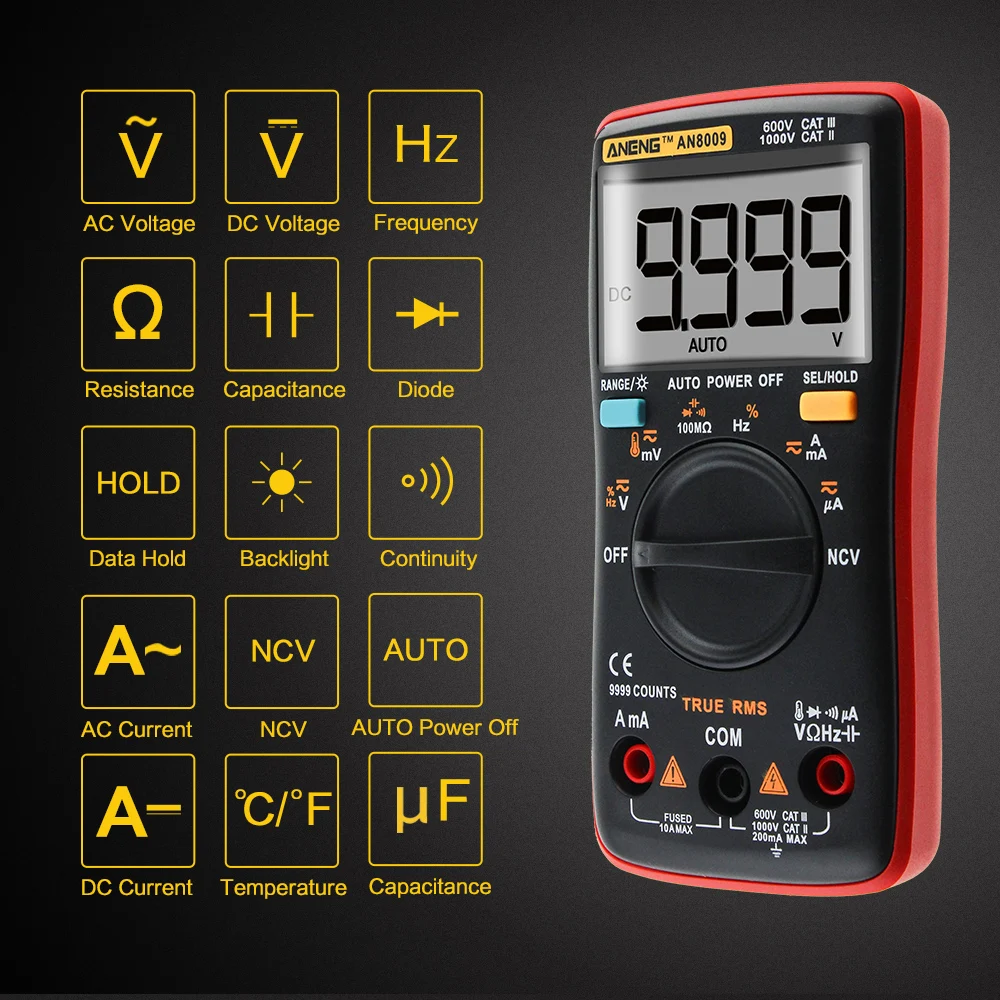

Allows for various electrical tests including Resistance, DC/AC Voltage and Current tests with a simple switch.

Easy to work, auto ranging accurately measures with self-calibration chip to make sure the accuracy and stability.

Specifications:

Brand Name: ANENG

Model Number: AN8009

Operating Temperature: 0 - 40 °

Operating Humidity: ≤75%RH

Storage Condition: -20~60°

Storage Humidity: ≤80%RH

DIY Supplies: Electrical

Operating Mode: Auto/Manual Ranging

Measuring Inductance Range: no

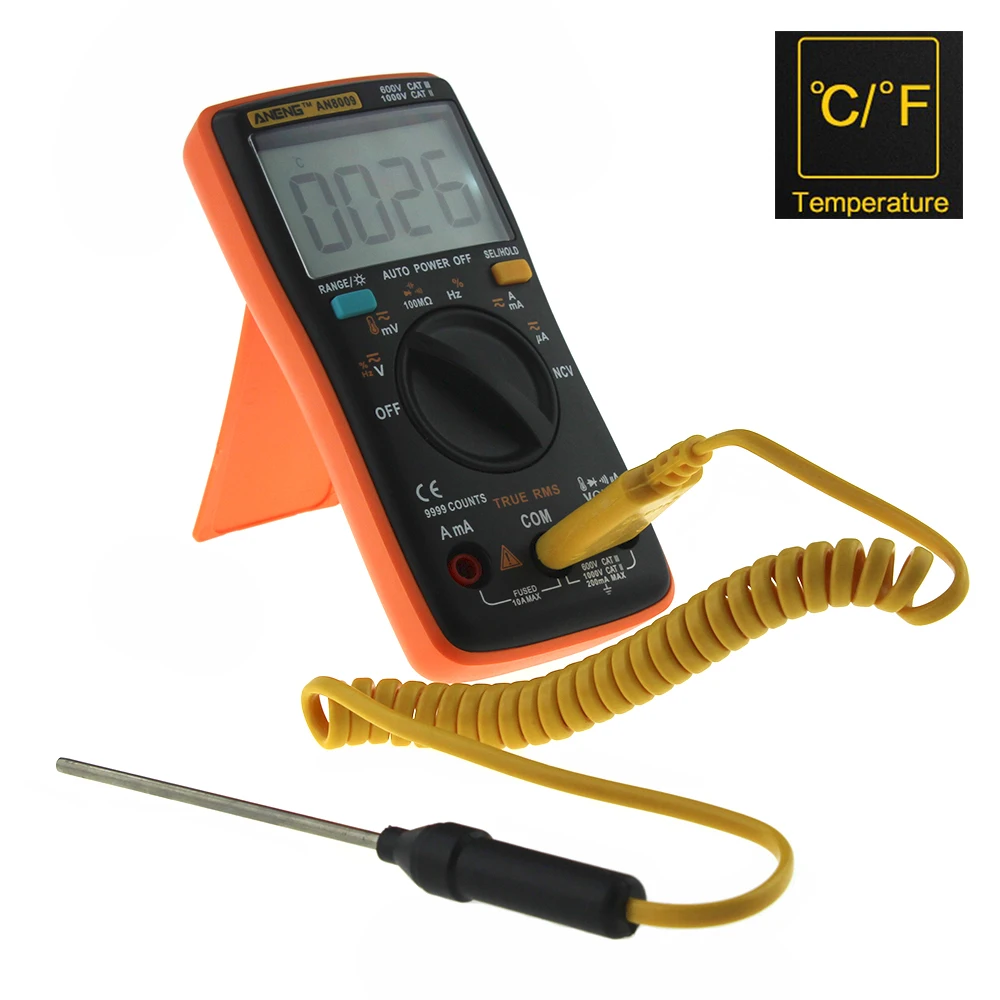

Measuring Temperature Range:  -20~1000 C/-4F-1832F

Measuring Capacitance Range: 9.99nF/99.99nF/999.9nF/9.99uF/99.99uF/999.9uF/9.999MF

Measuring Voltage Range: 999.9mV/9.999V/99.99V/999.9V

Measuring Current Range:60mA/600mA/10A

Measuring Resistance Range: 99.99/999.9/9.999k/99.99k/999.9K/999.9M

Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz

Square Wave Output: 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/ 900Hz/1000Hz/200

DC/AC Voltage(mV): 9.999mV/99.99mV

DC/AC Voltage(V): 999.9mV/9.999V/99.99V/750ACV(999.9DCV)

DC/AC Current (mA&A): 999.9mA/9.999A

DC/AC Current (uA): 99.99μA/999.9μA

Display Type: Digital Display

Diode Test: Yes

Continuity: Yes

Duty Cycle: 1%-99%

Sample Rate: 3 times per second

Power: 2 * 1.5V AAA batteries(Not Included)

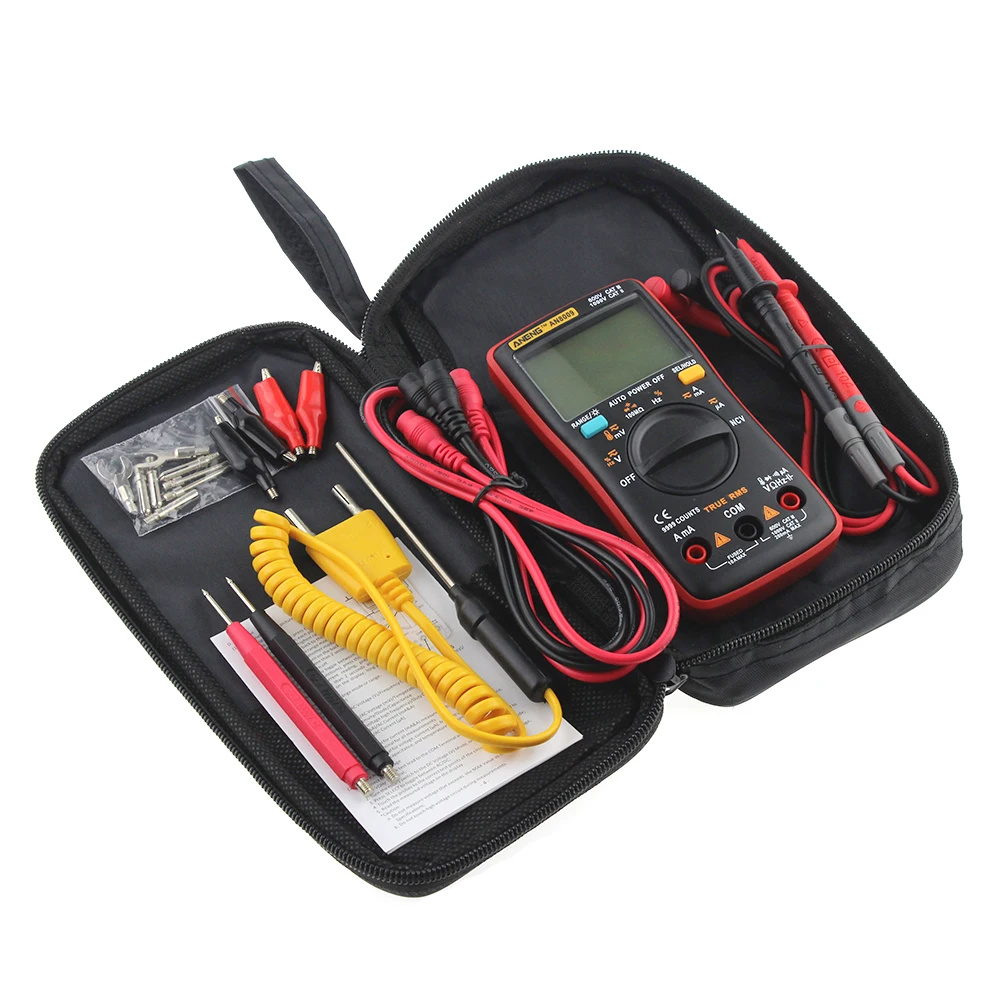

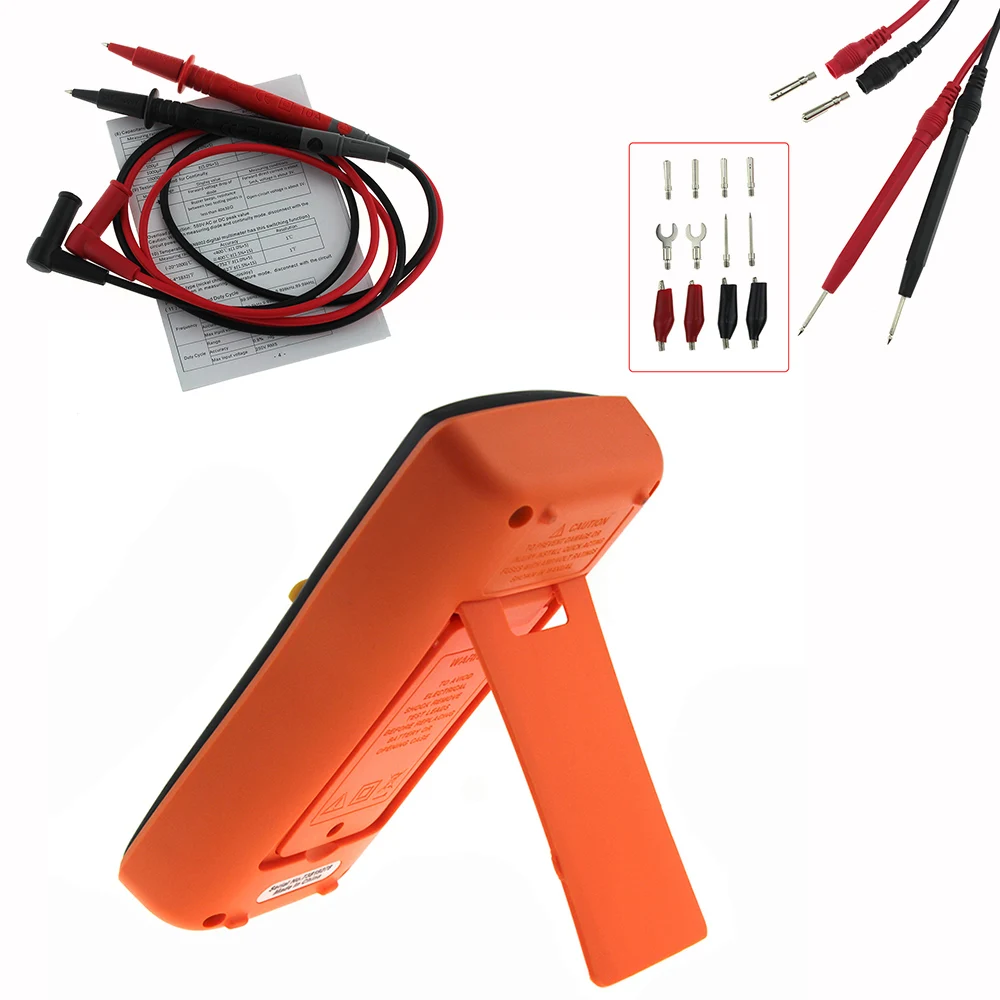

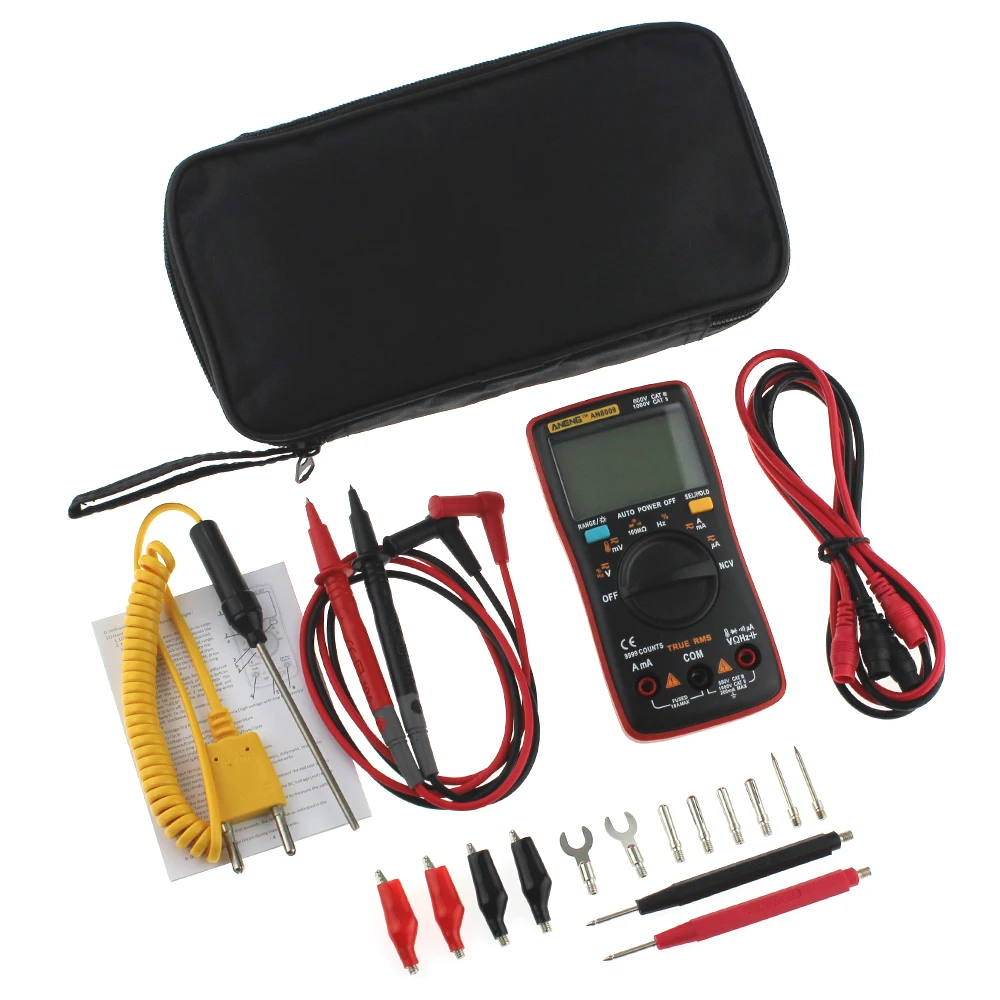

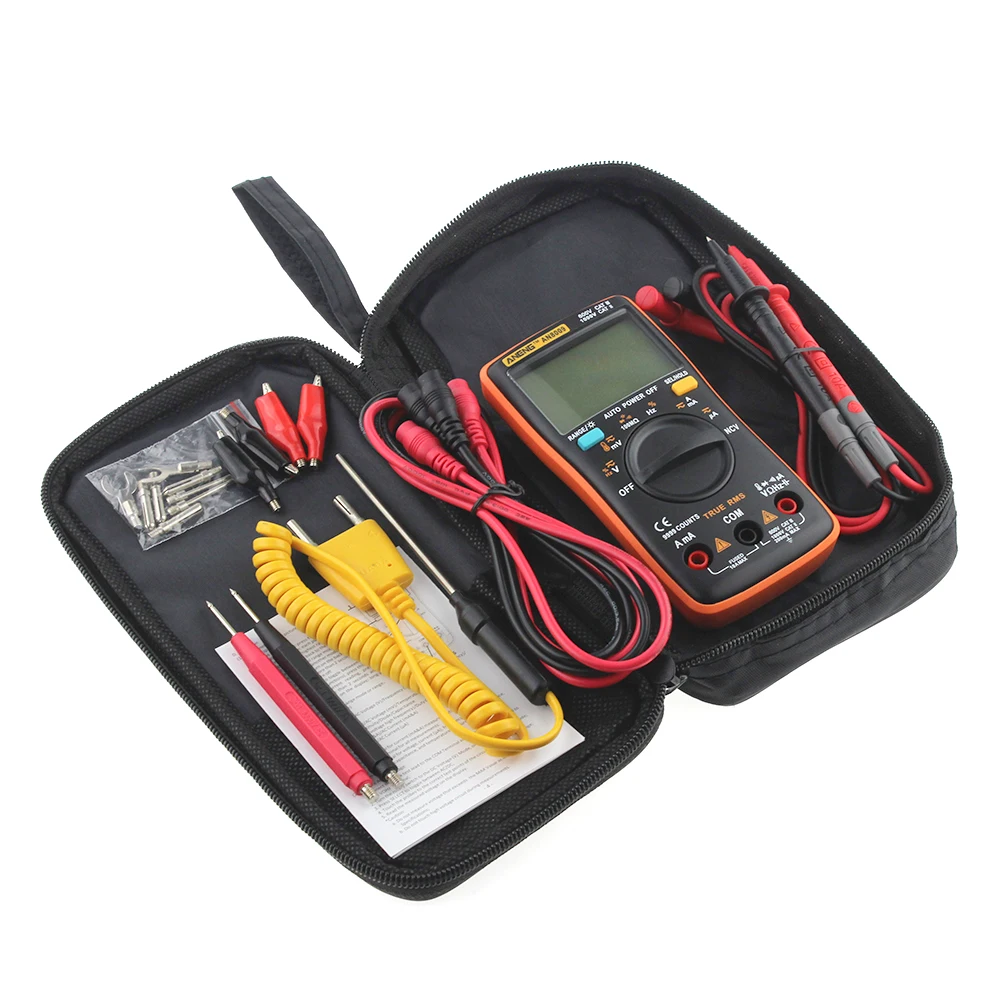

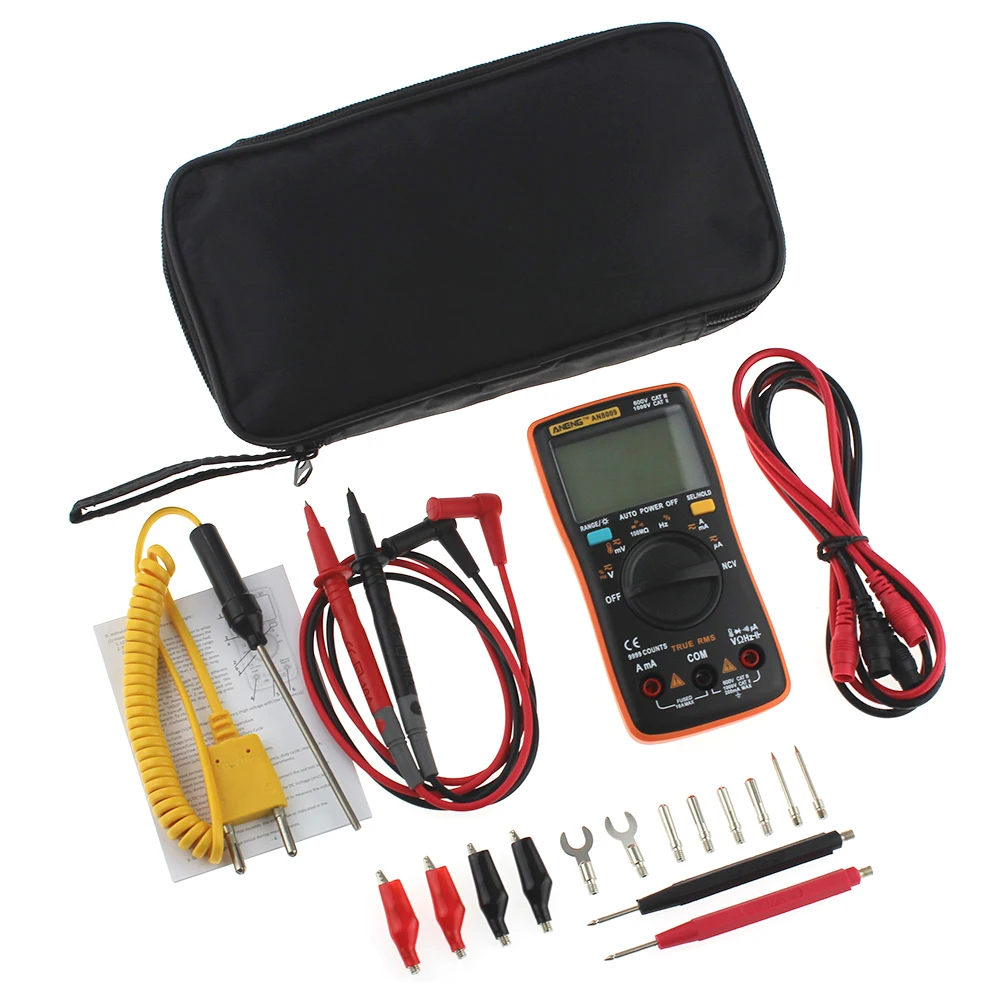

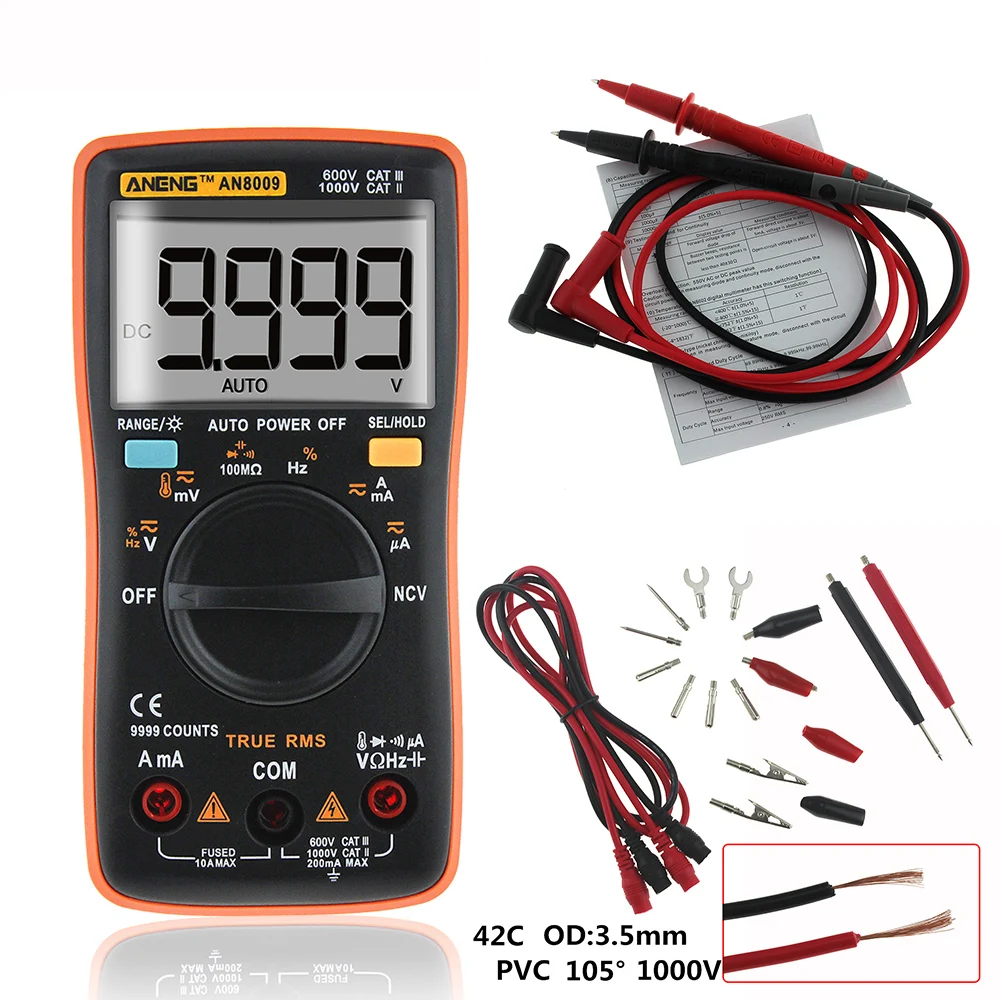

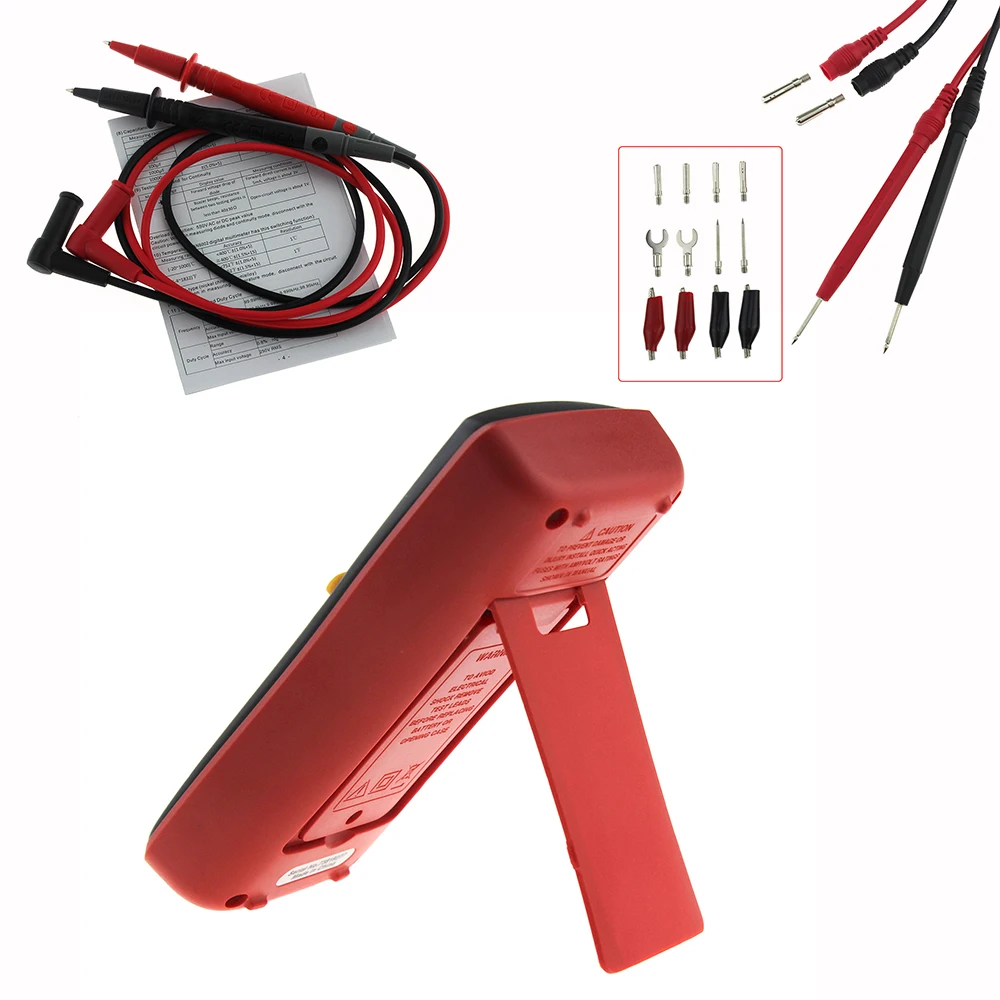

Package included:

1 x Multimeter

1 x Test lead+temperature sensor

1 x User Manual

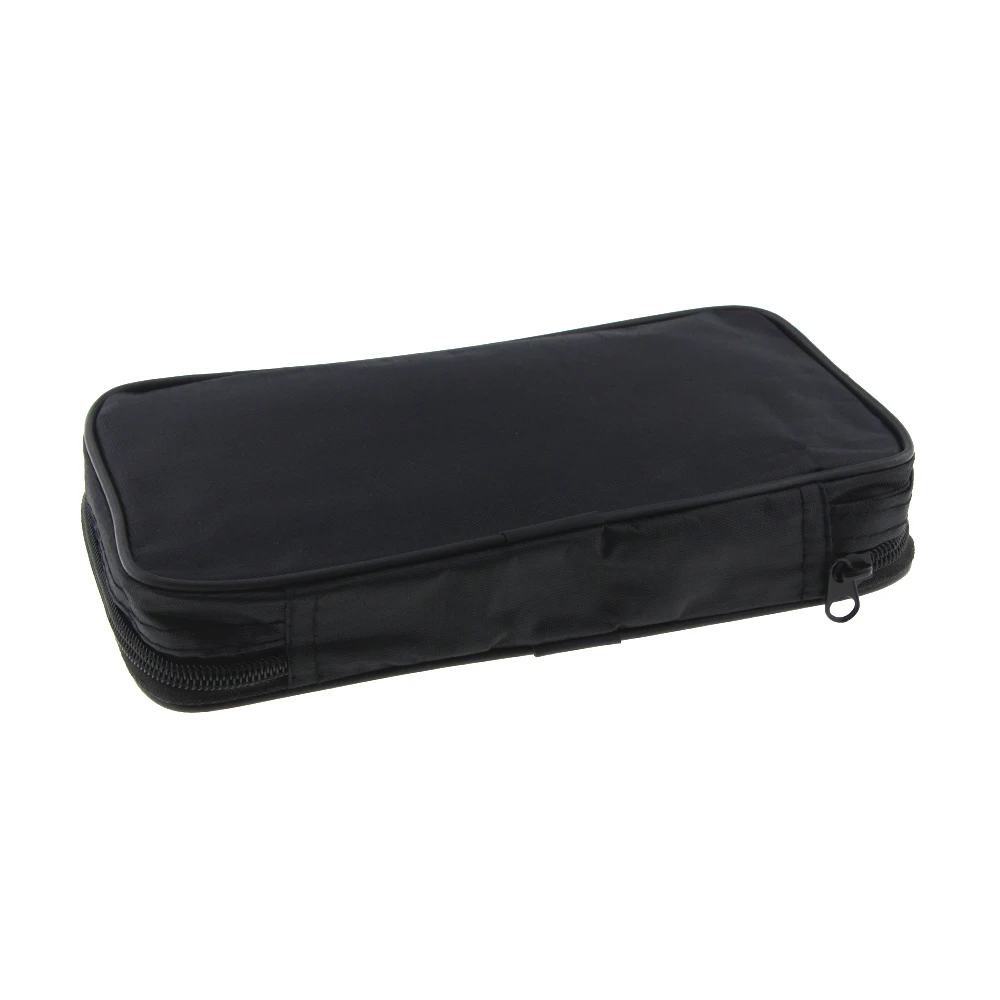

1 x Storage bag

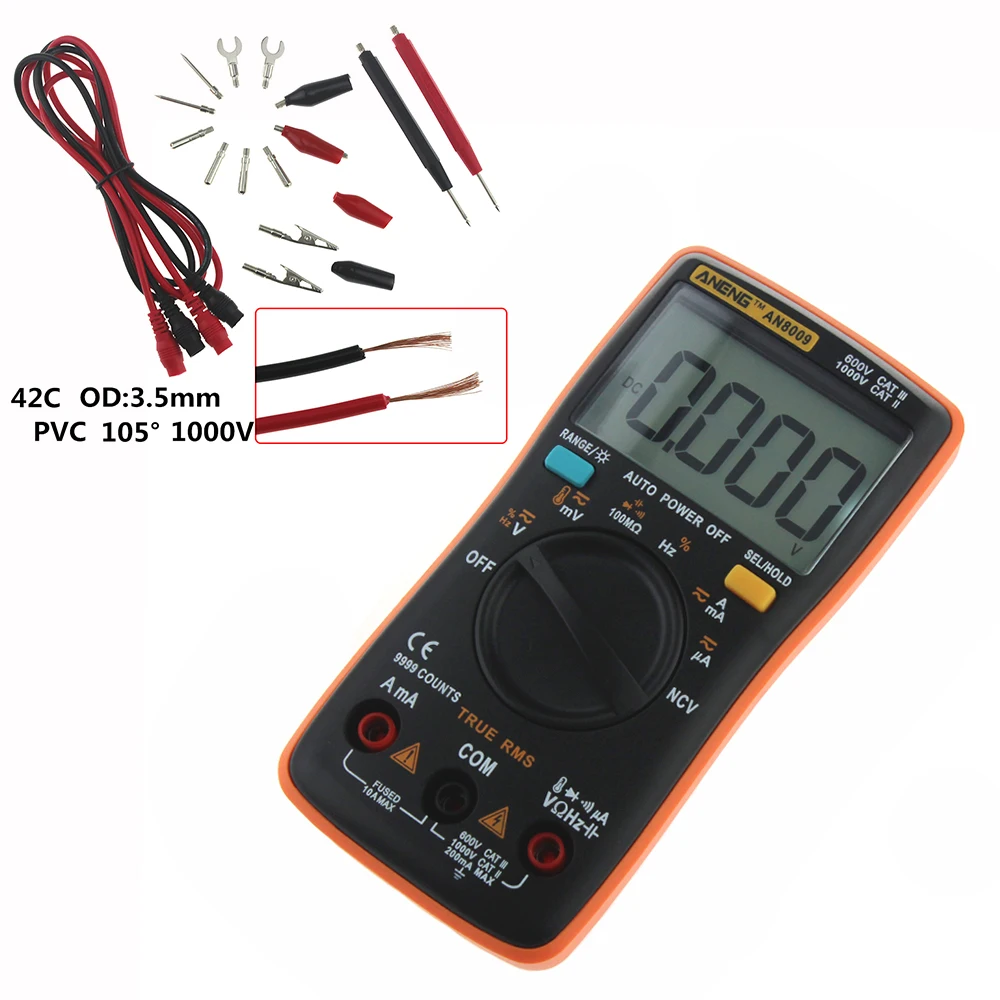

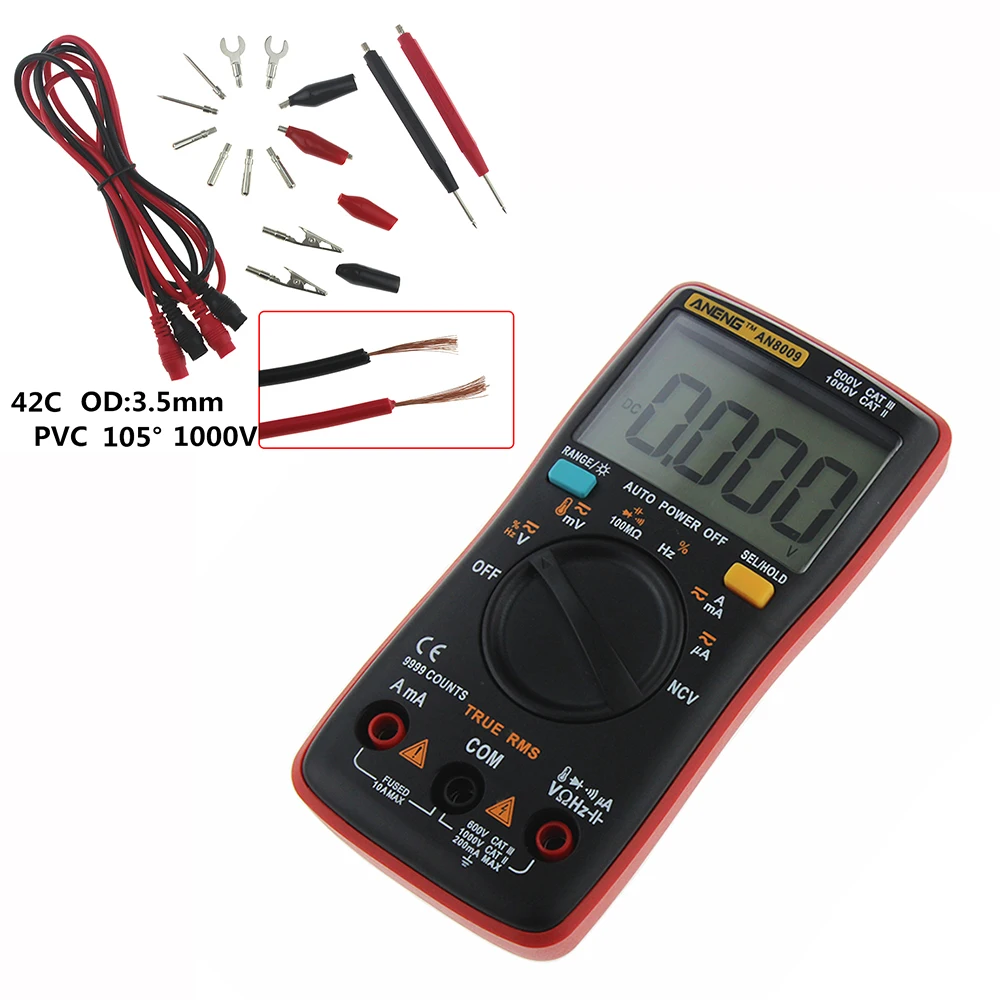

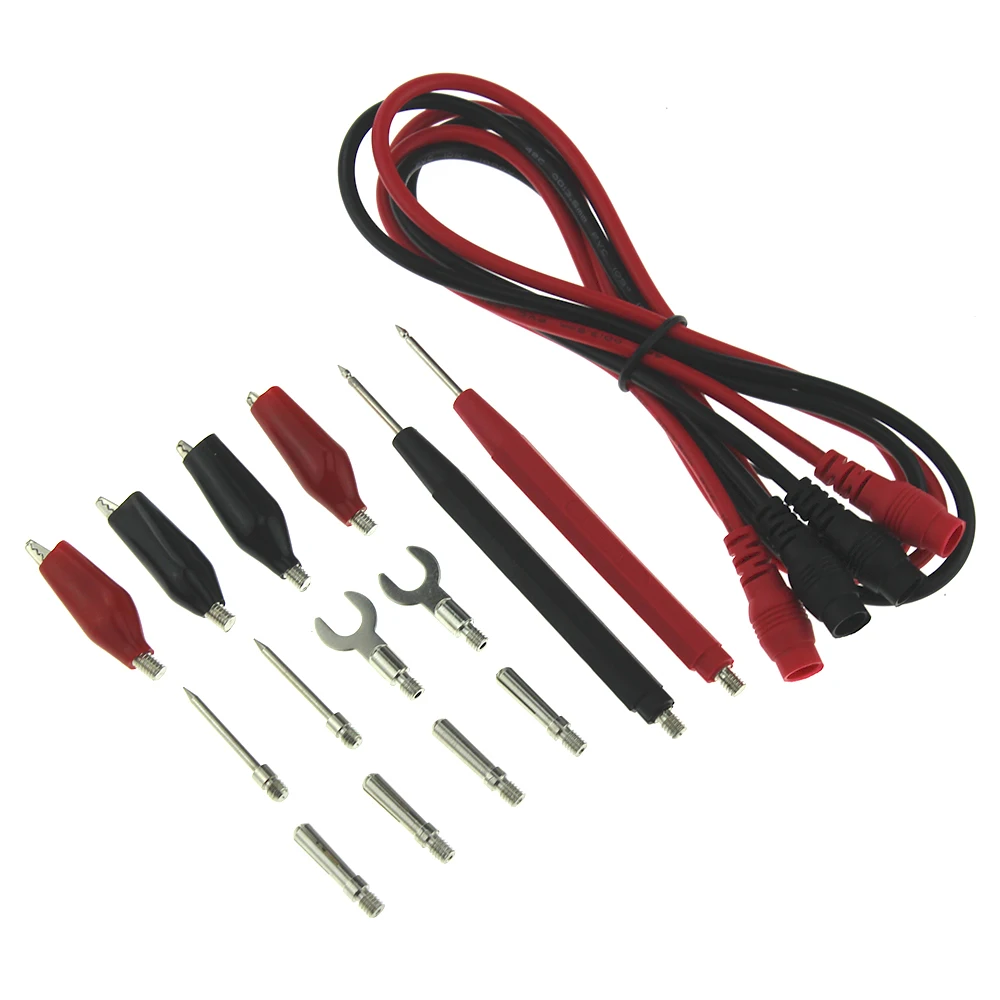

1 x  16pc Test probe

Warning:

1. Do NOT exceed the “maximum value” indicated in the Specification;

2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;

3. Do NOT use the product when the batteries or the battery cover is not placed properly;

4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.

5.Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.

'
