Digital Multimeter 4000 Count TRMS Auto Range Multimeter AC/DC Voltage/Current Resistance Diode Continuity 1.5V 9V Battery Test with 5 Colors Multimeter Leads

Description:

This multimeter is an innovative, high performance,highly reliable, full-featured, large-screen display, handheld,4000 true RMS digital multimeter.

This brand new multi-functional multi meter with high precision and high performance MCU processor can measure DC/AC voltage/current, resistance. It can also test NCV(non-contact voltage), diode and continuity. With a bracket on the back, convenient to place it on the table and read the values. and can be widely used in schools, research institutes, factories, companies and other social areas.

Features:

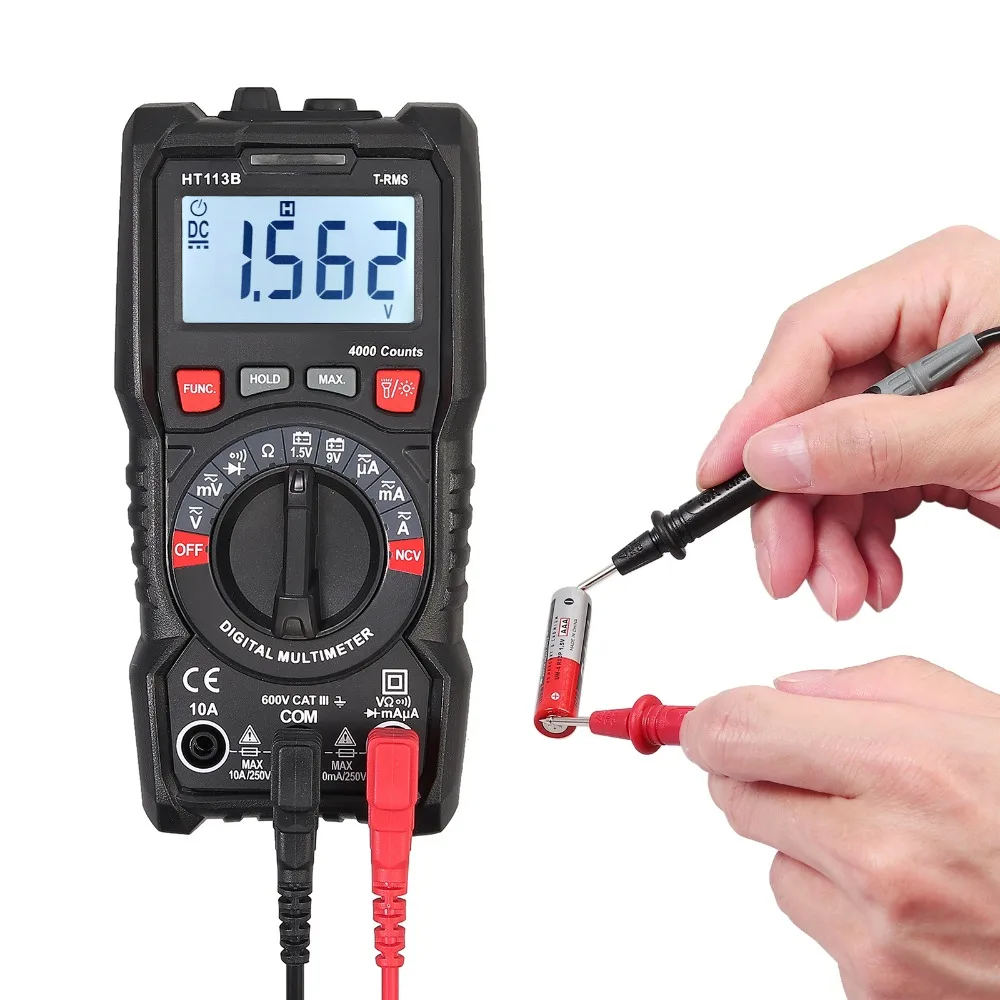

4000 Counts & Multi-function: Max. display value 4000 counts and test AC/DC voltage, DC/AC current, NCV, resistance, 1.5V/9V battery test, continuity, diode with true RMS and full-featured design.

Precision Circuit Board & Overload Protection - With over load protection, quickly identifies existing voltage, shielding interference & continuity test can be 60Ω. Show "OL" on the LCD if overload.

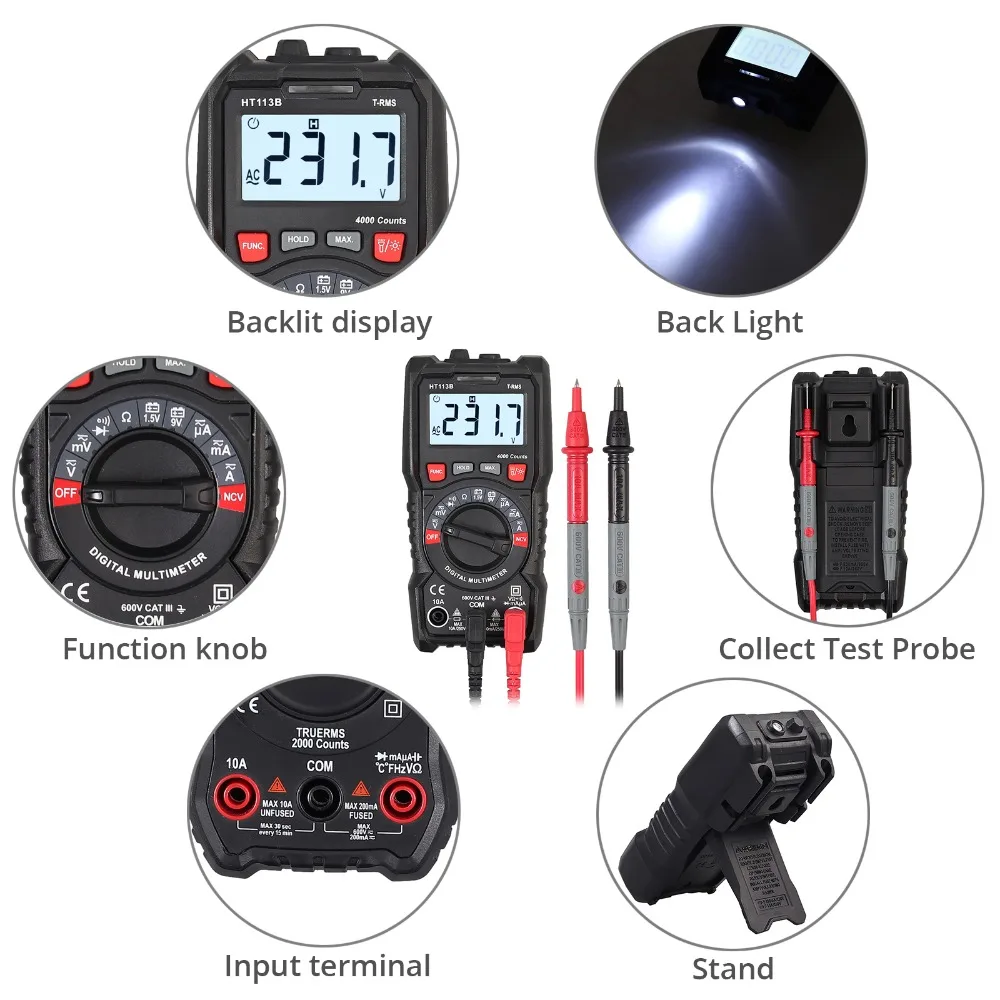

More Functions Selection: NCV test with visual and audible alarm ensure your life safety, with low battery indication, maximum measurement, data hold, auto power off function and full symbol display clearly.

Easy to Use & Clear to Read: Easy to operate, accurate readings, low power consumption, perfect home tool for the laboratory, home, factory, etc. Protected by rubber for drop protection.

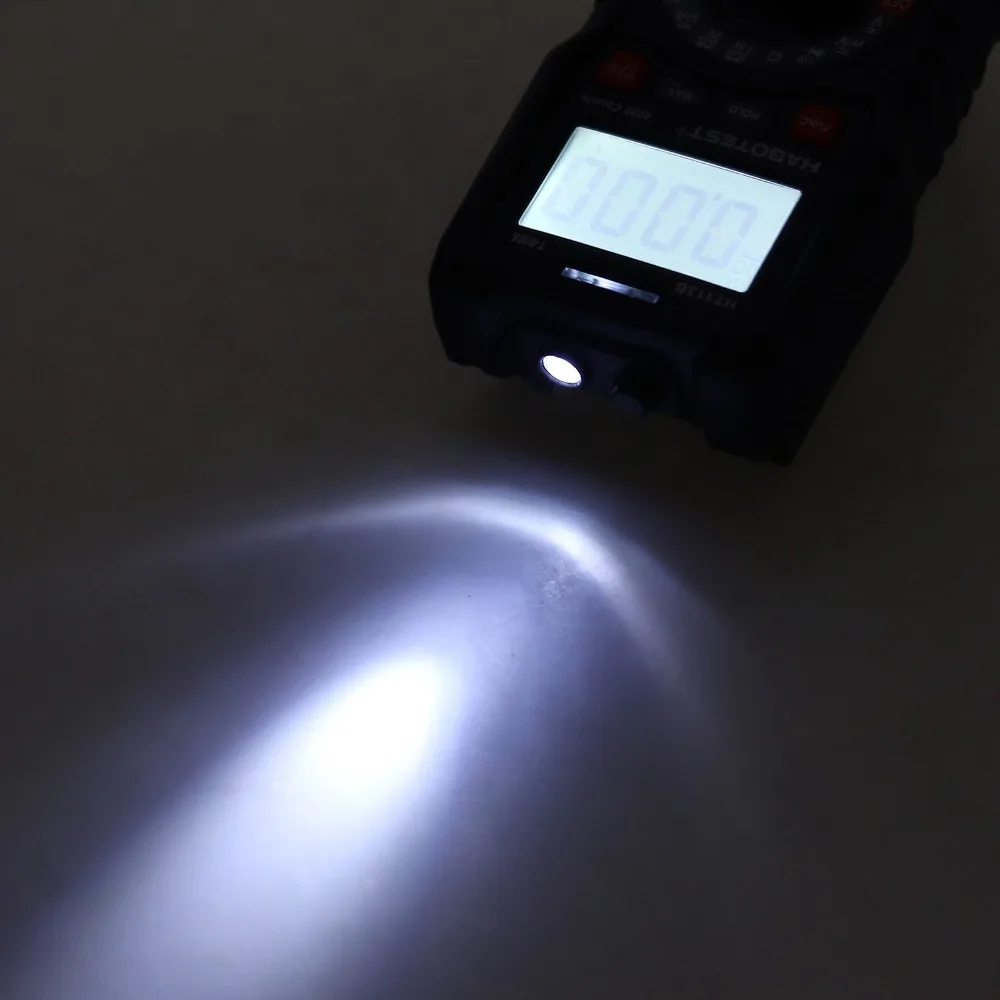

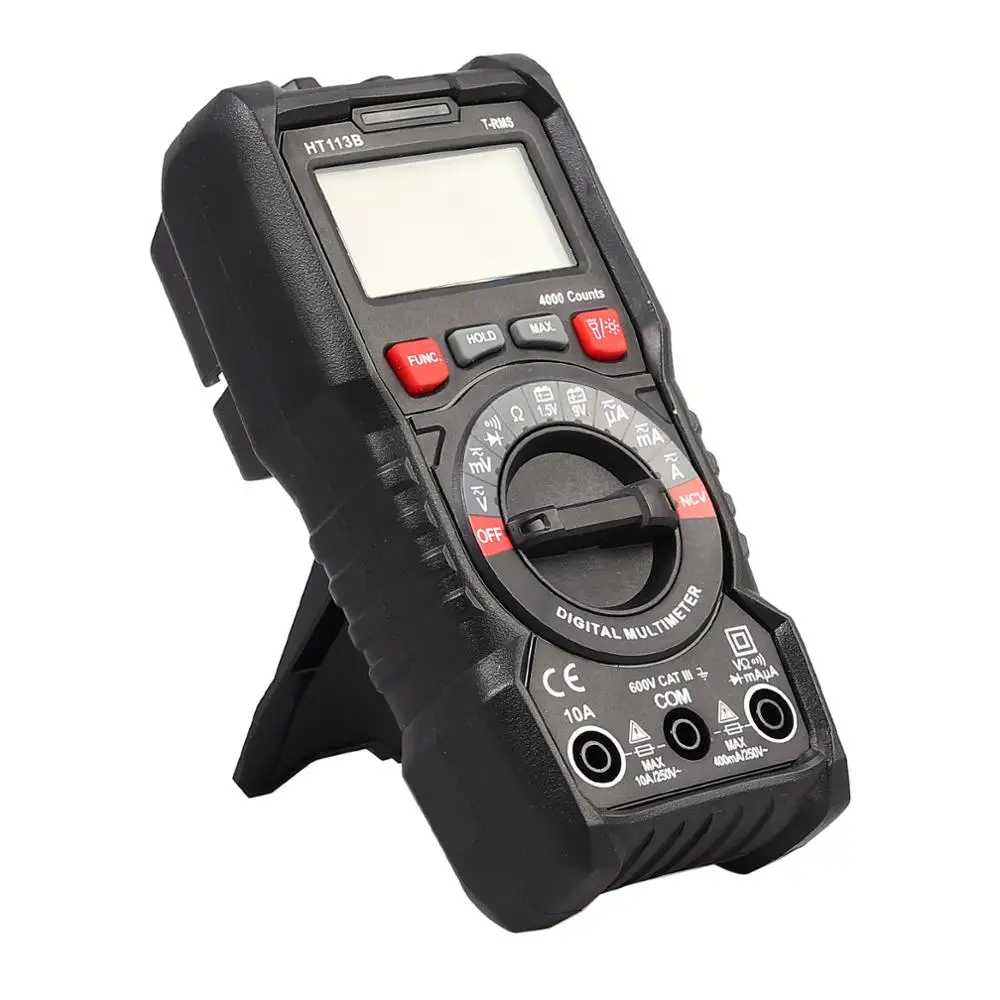

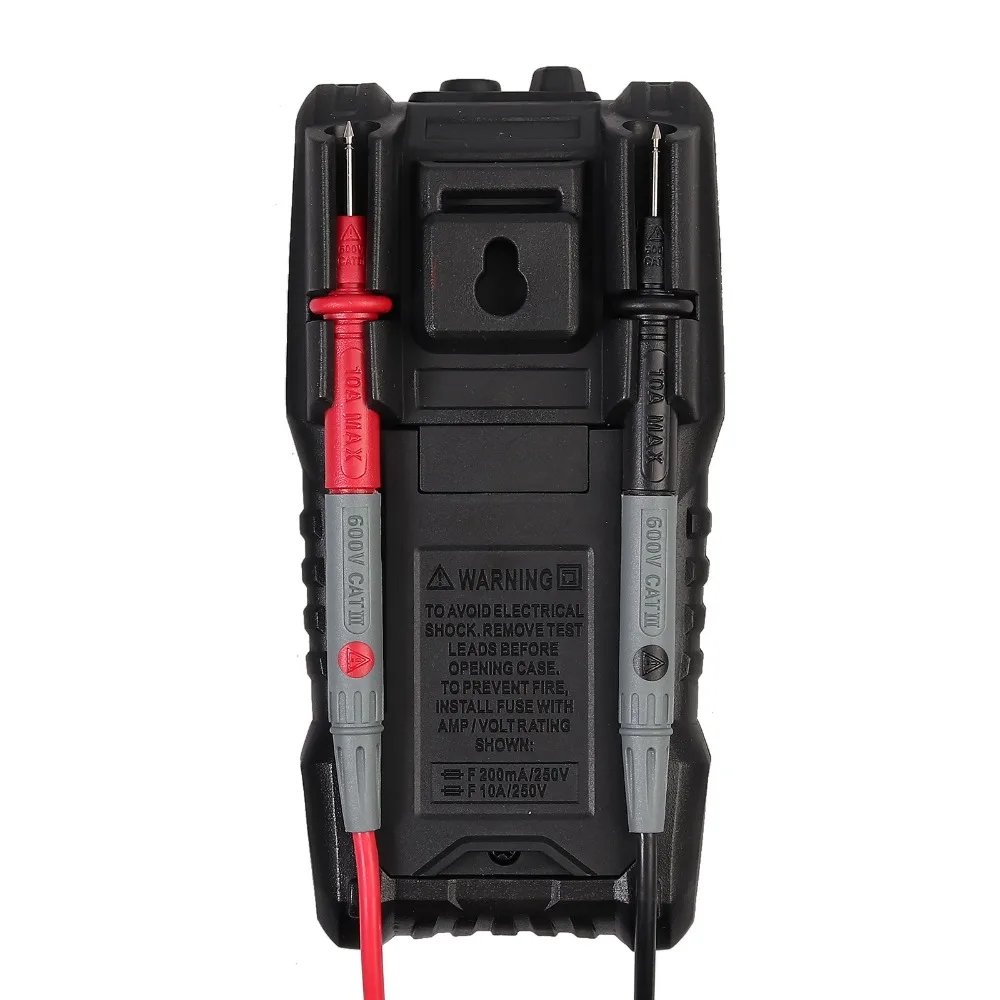

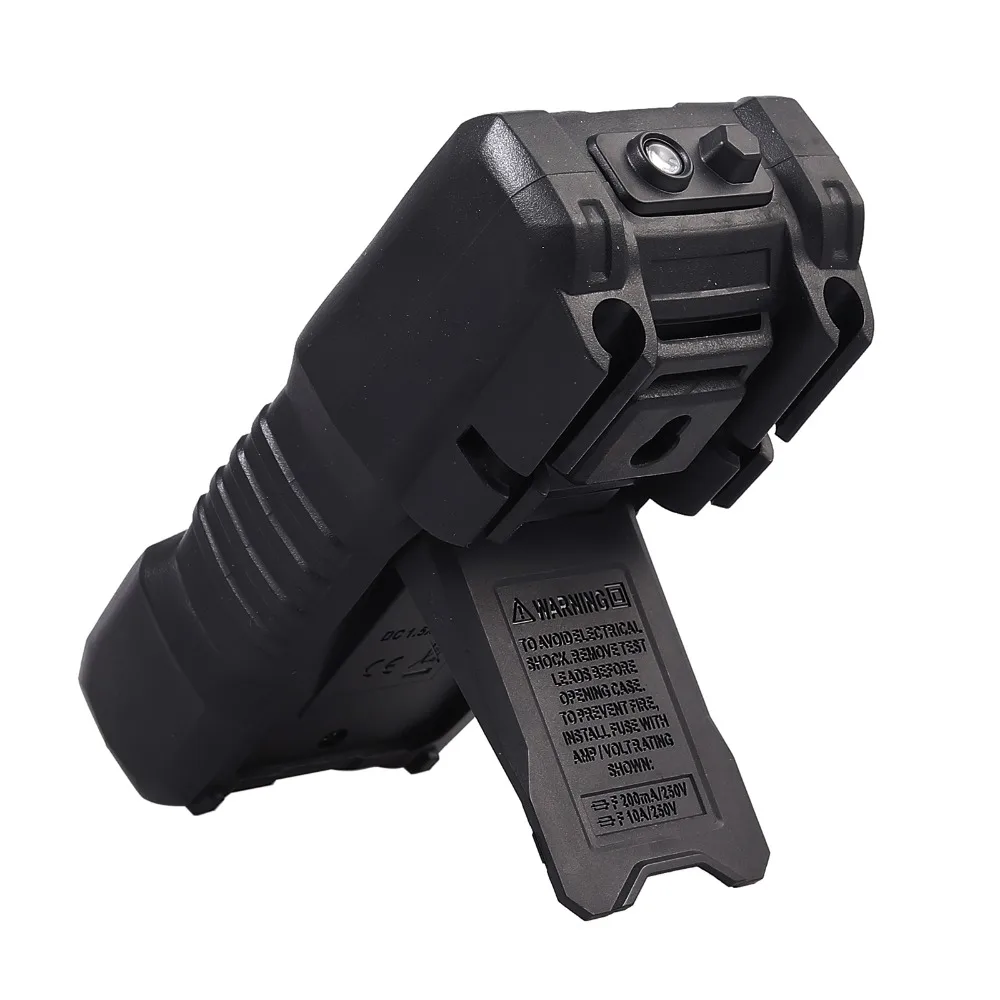

Portable Design: There is a back bracket for supporting multimeter, and also can collect test probe for your convenience. Backlight LCD and flashlight for easy operation in dimly lit areas.

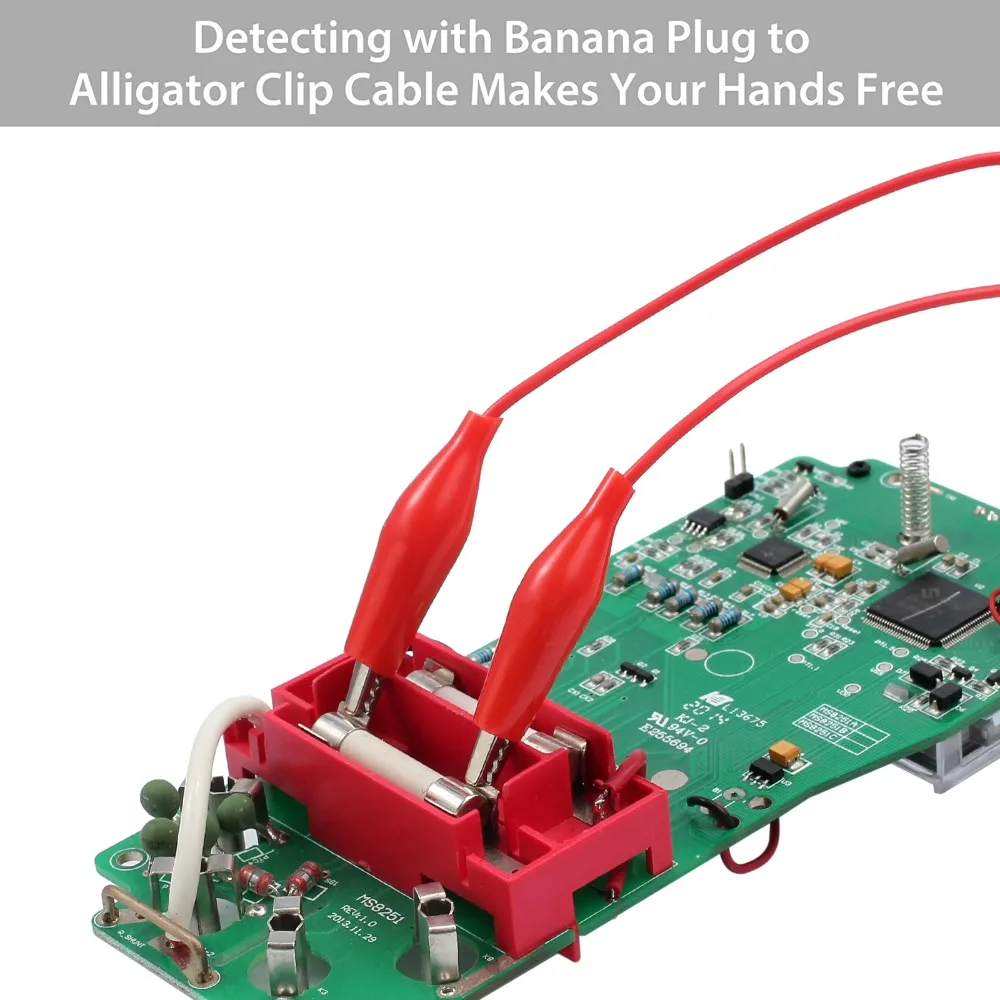

The 5 colors test leads are handy for keeping track of wires when testing multiple things, helping you distinguish one from another visually. Alligator leads are handy for most light electronics works such as experiments, breadboarding, prototyping or diagnosing faulty safety switches.

Specifications:

Color: Black

Material: ABS

Display: LCD Display with Backlight, 4000 Counts

Range Control: Auto Range

Screen Size: 45 * 25mm

Operating Environment: CAT III 600V

Sampling Time: about 3 times/second

DC Voltage Range: 400mV/4V/40V/400V/600V

DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V

AC Voltage Range: 400mV/4V/40V/400V/600V

AC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V

DC Current Range: 400μA/4000μA/40mA/400mA/10A

DC Current Resolution: 0.1μA/1μA/0.01mA/0.1mA/0.01A

AC Current Range: 400μA/4000μA/40mA/400mA/10A

AC Current Resolution: 0.1μA/1μA/0.01mA/0.1mA/0.01A

Resistance Range: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

Resistance Resolution: 0.1Ω/0.001k1Ω/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ

Frequency of AC Voltage: 40~400Hz

Continuity Test & NCV Test: Audible and Visual Alarm

Function: AC/DC Voltage, DC/AC Current, Resistance, True RMS, Data Hold, Backlight, Auto Power off, NCV Test, Continuity Test with Buzzer, Over Load Protection, Diode Test, Low Battery Indication, Flashlight, 1.5V/9V Battery Test, Maximum Measurement

Working Temperature/Humidity: 0~40℃, <80%RH

Storage Temperature/Humidity: -10~60℃, <70%RH

Power Supply: 2 * 1.5V AAA Battery (NOT Included)

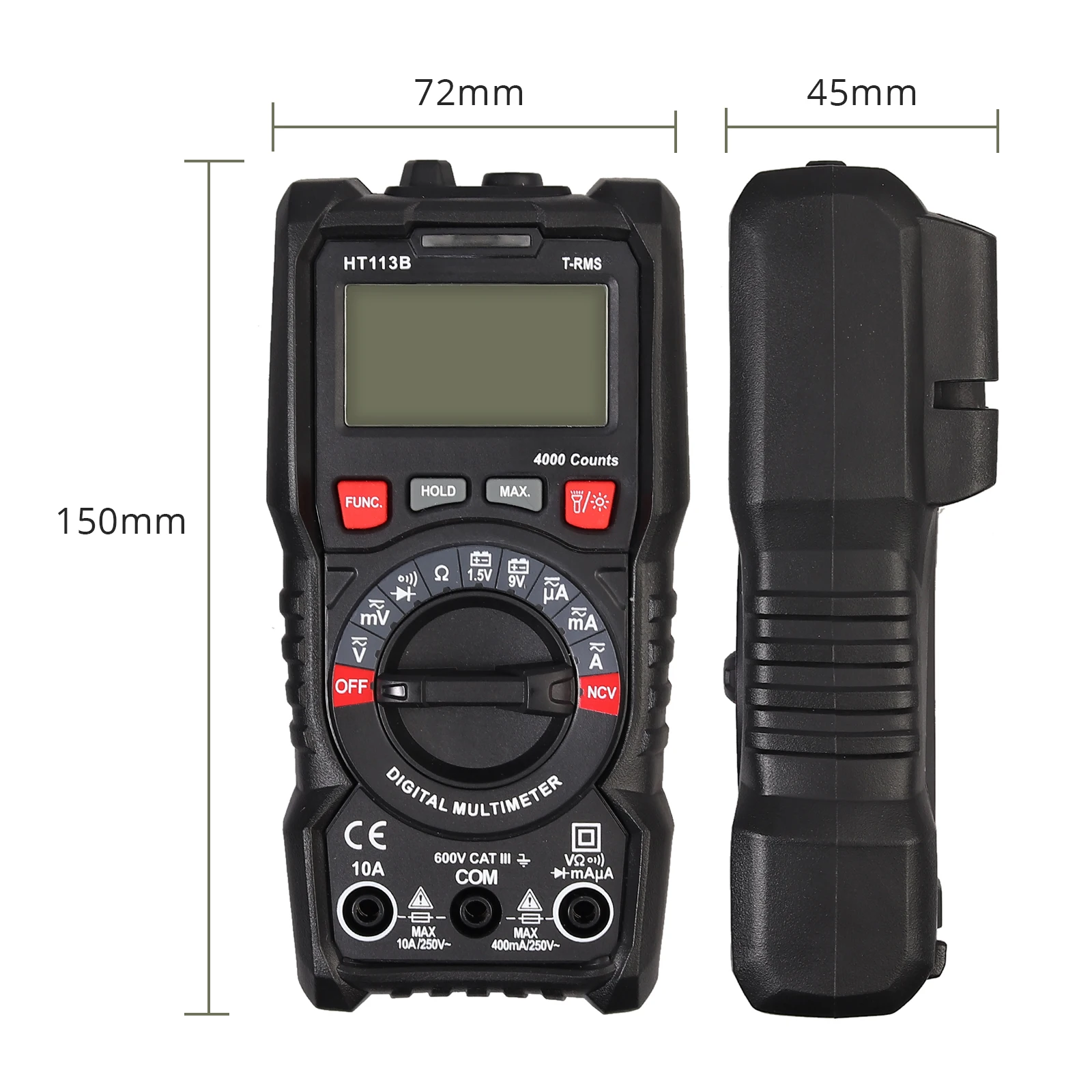

Item Size: 151 * 75 * 46mm / 5.9 * 3.0 * 1.8in

Item Weight: 207g / 7.3oz

Package Size: 15.5 * 11 * 5.2cm / 6.1 * 4.3 * 2.0in

Package Weight: 296g / 10.5z

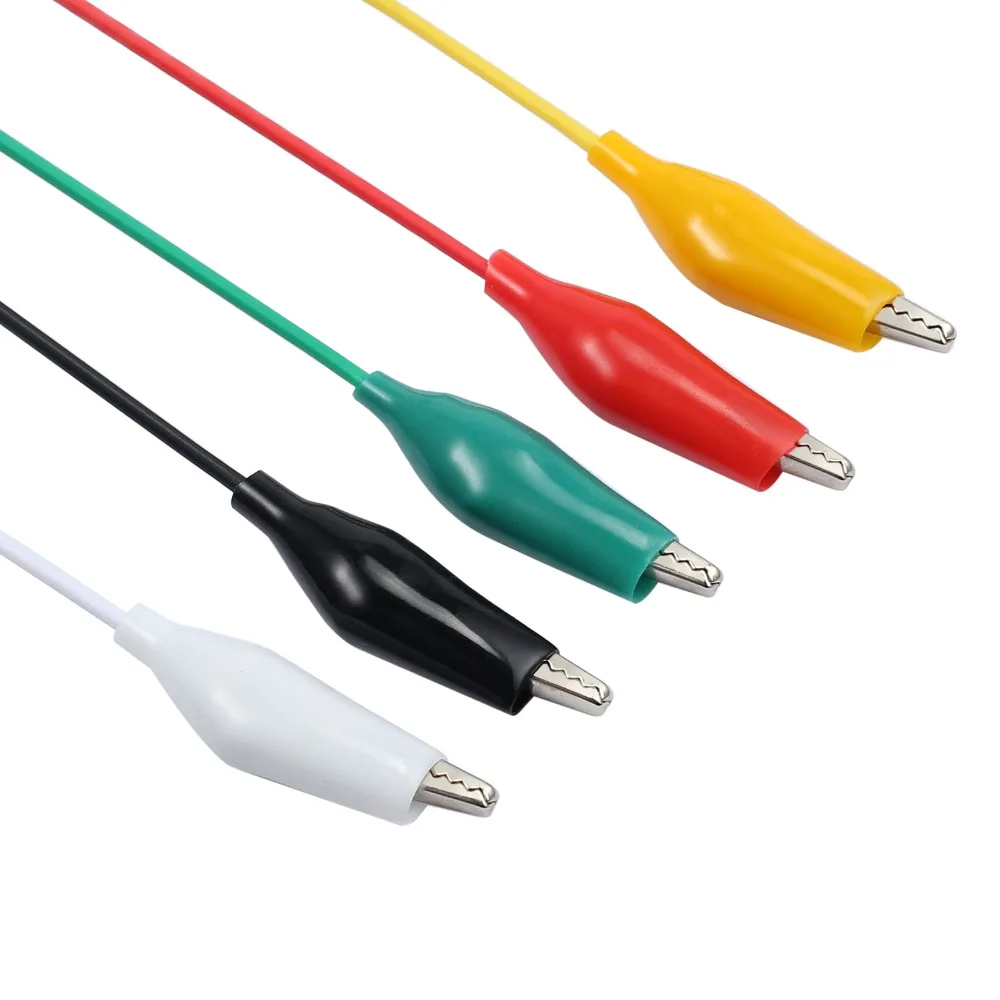

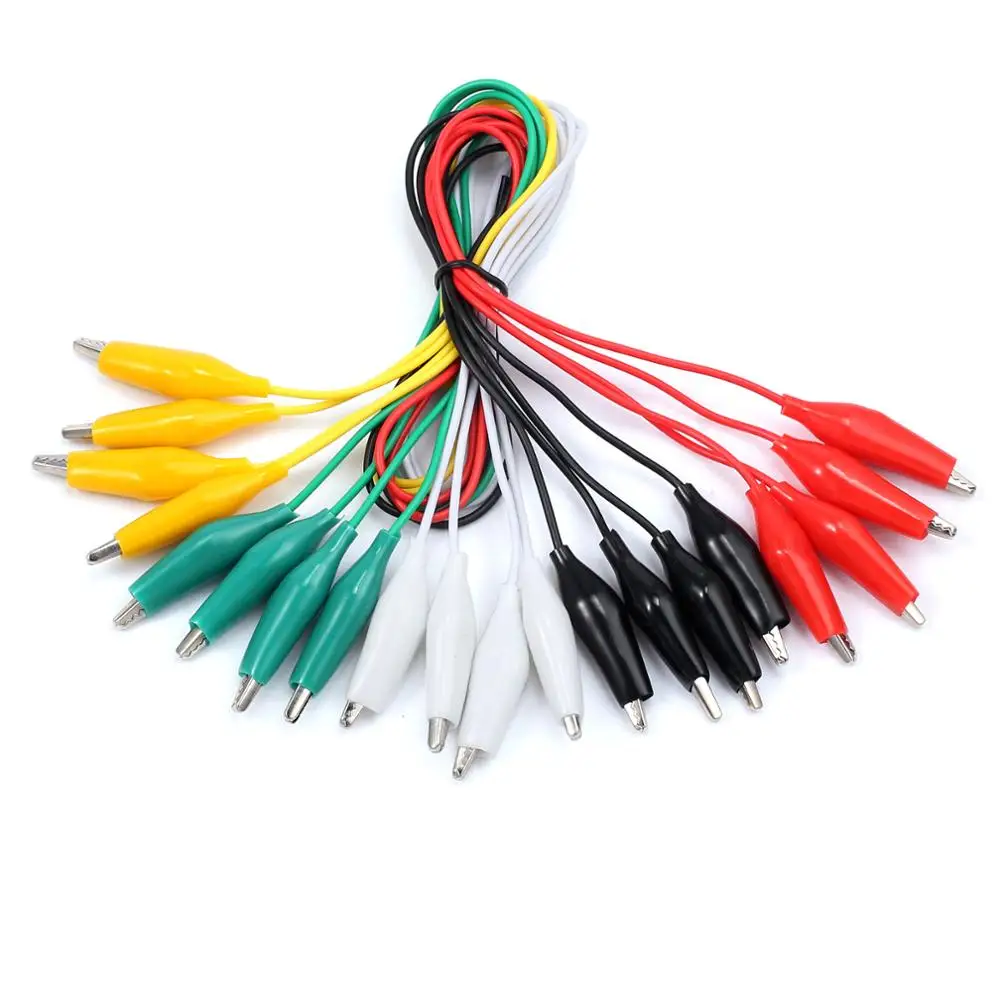

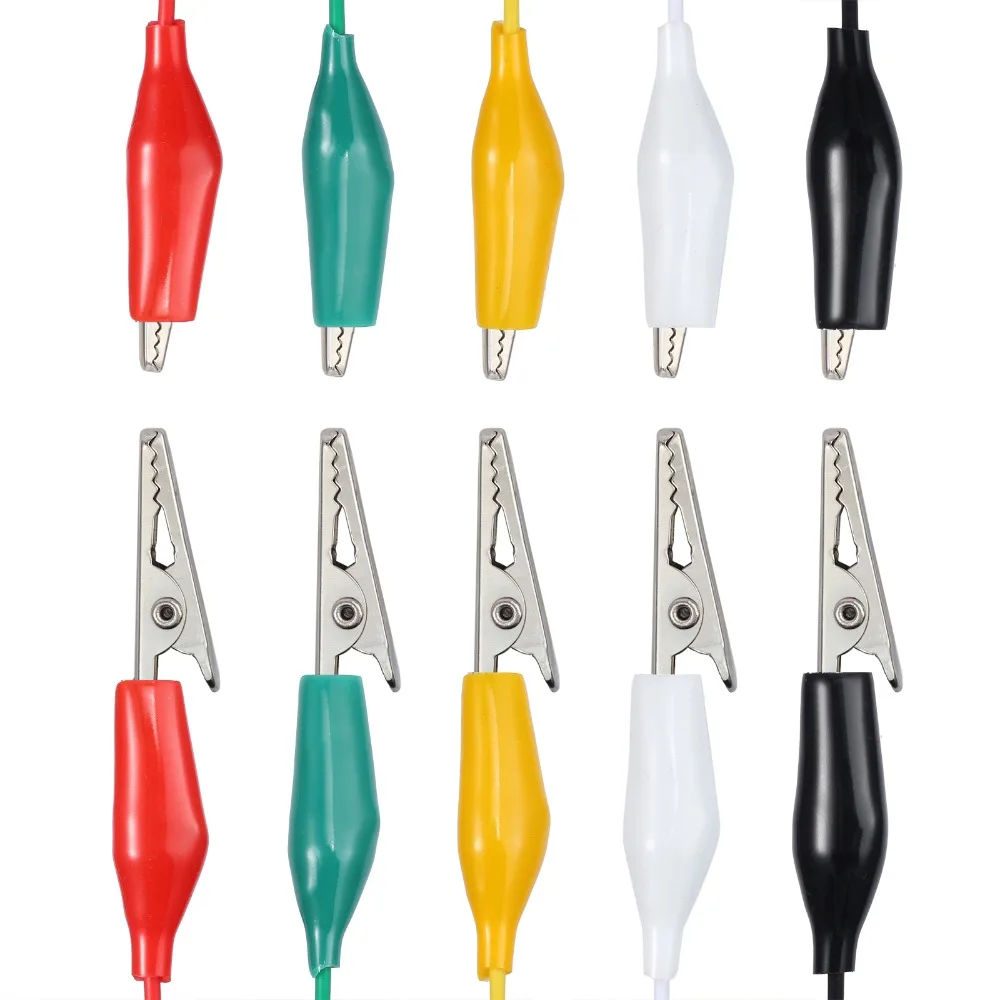

10 pieces 5 colors alligator clip:

10 lines test leads color is red, green, yellow, black, white and each length is 19.7 inch, wire is 24 AWG.

strong spring clip holds up solidly for most jobs, insulated clips are flexible to slide back and forth to adjust the clip exposure.

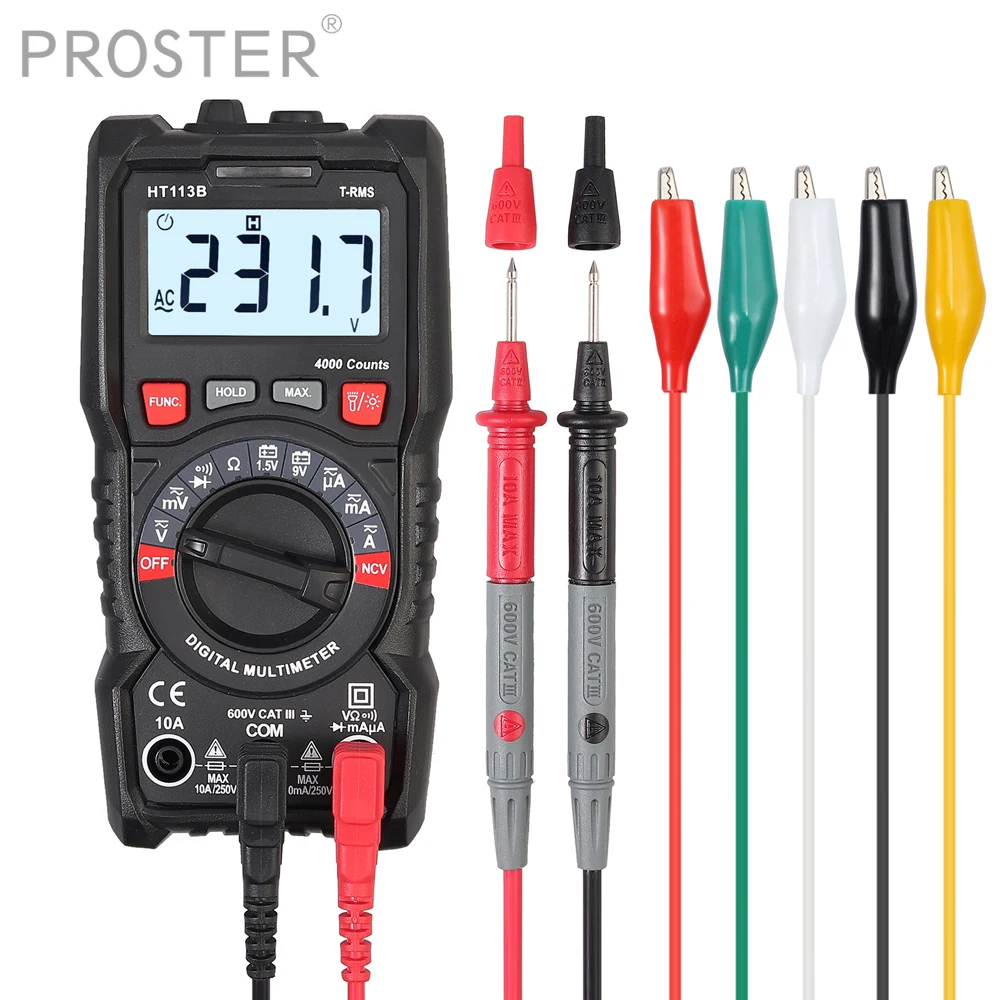

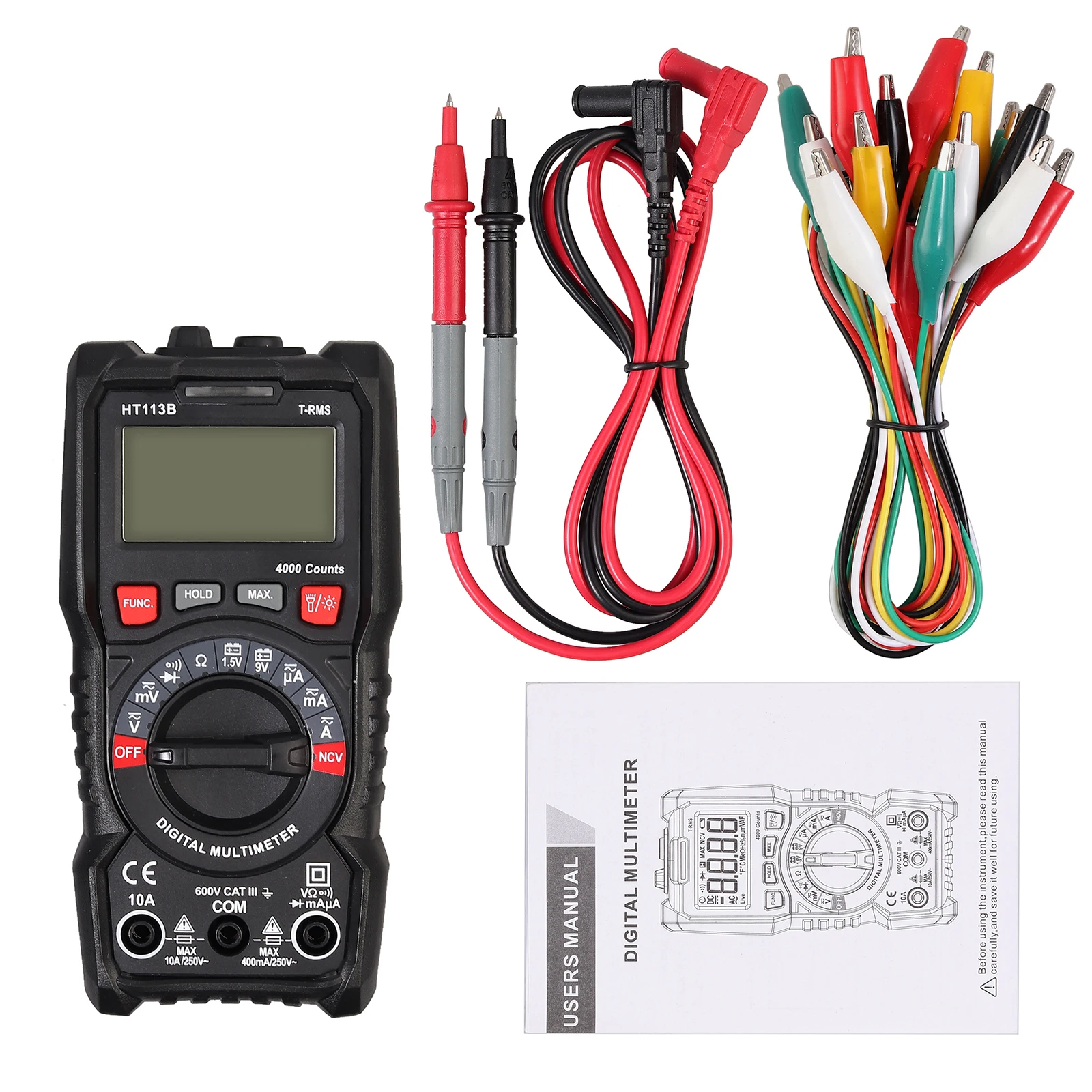

Package Content:

1x Digital Multimeter

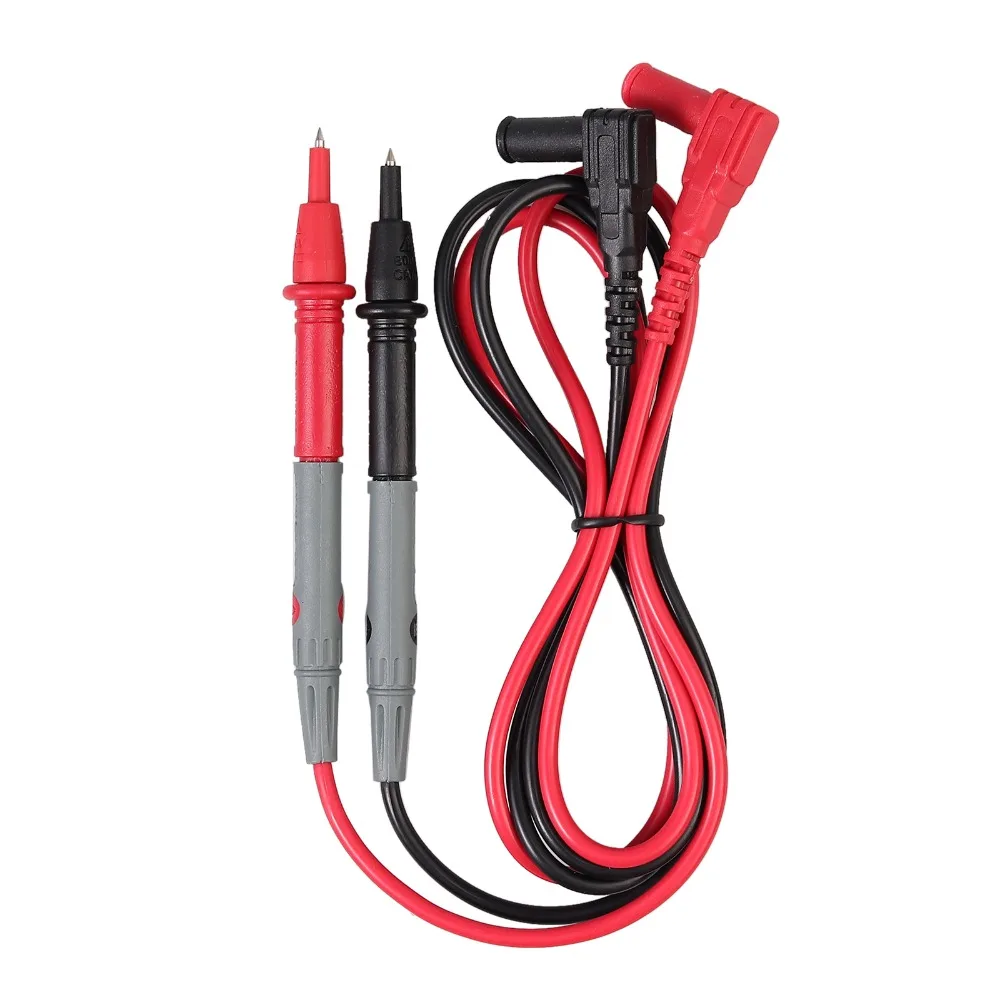

1x Test Leads (pairs)

1x User's Manual

10 x Test Lead Set with Alligator Clips
