body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Appearance characteristics: The surface shell process is IMD process, which is about 5 times more wear-resistant than similar products.
Industrial design: anti-static circuit protection, fully adapt to the strong static environment in the north and weather in the south.
Recognition speed: Independently developed fingerprint algorithm, fingerprint recognition speed is less than 0.8 seconds.
Privilege setting: without the need to connect a computer, directly set the access permissions of the user, the access period, the operation is simple and clear, and improve the work efficiency of the user.
Supports personnel management (personnel registration, deletion, door opening, etc.) via PC, mobile phone, and tablet computer in different places.

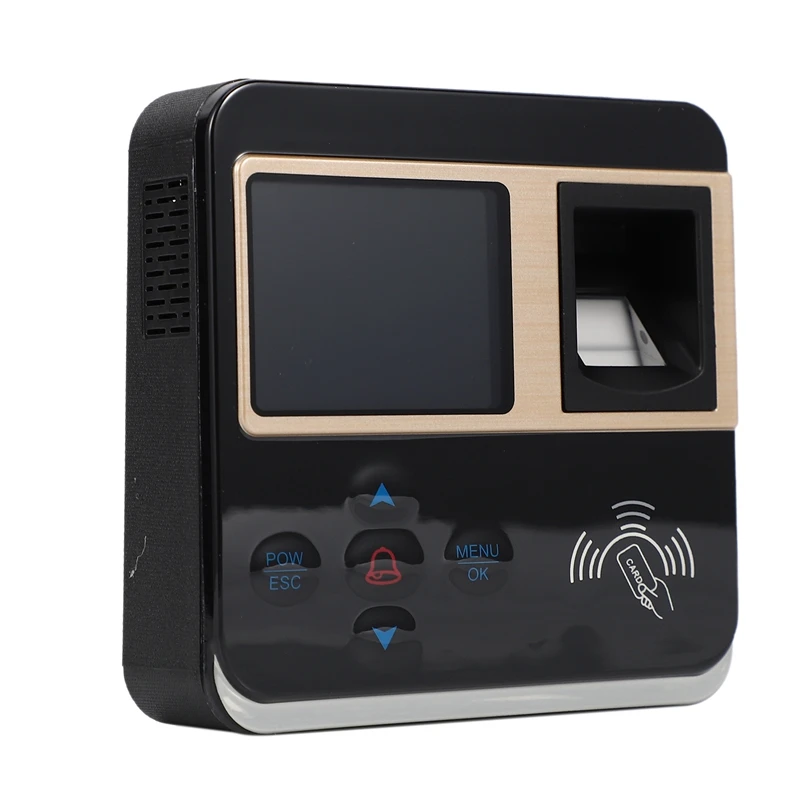

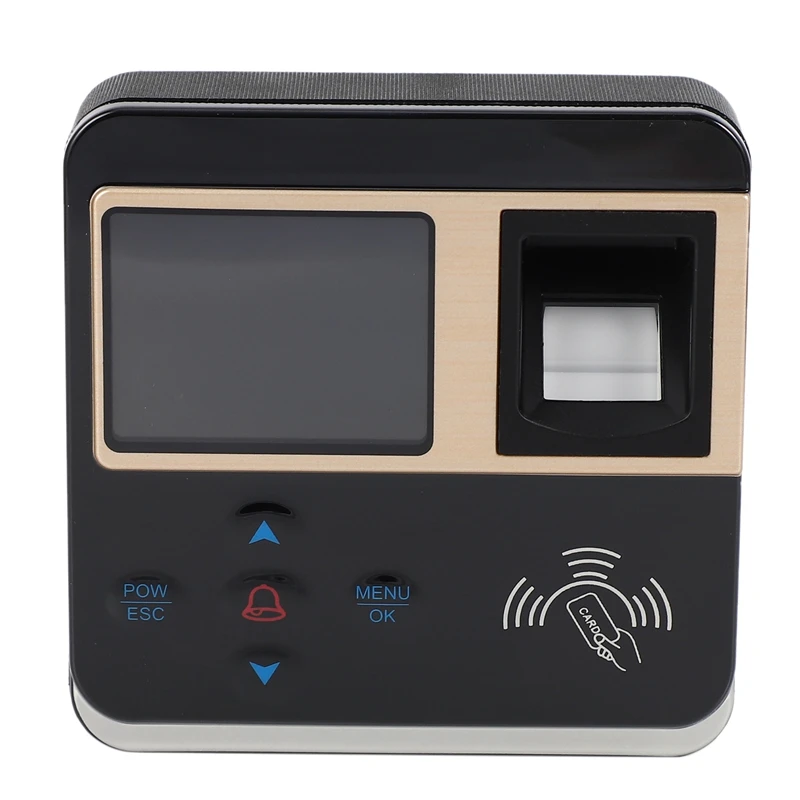

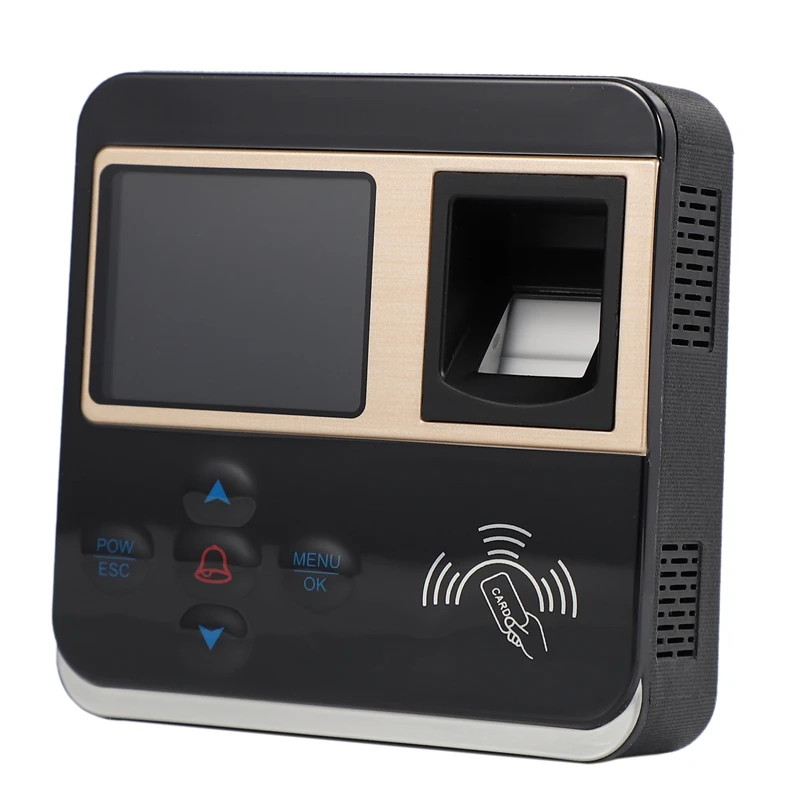

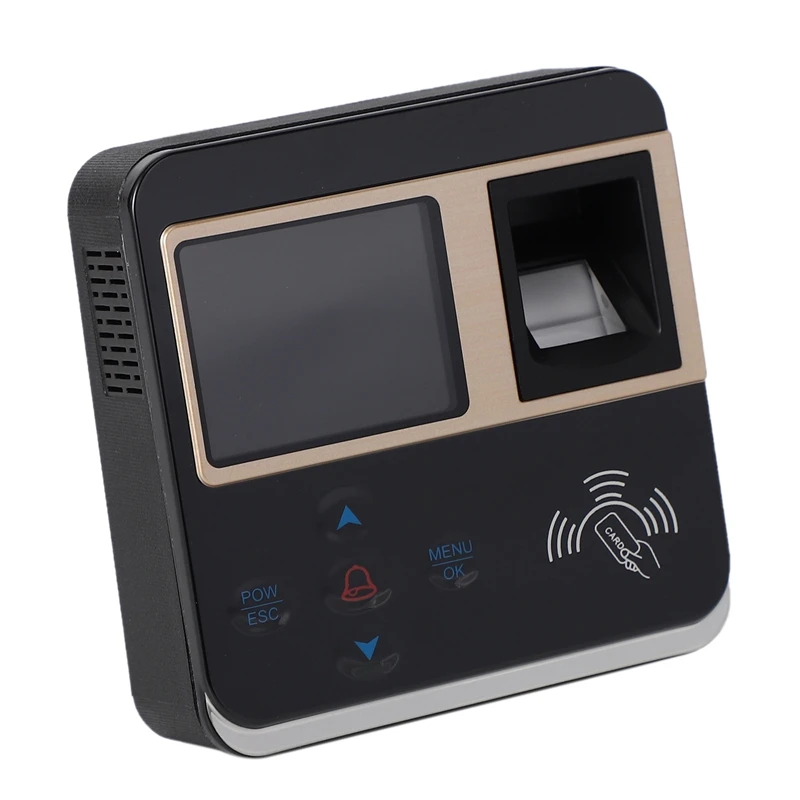

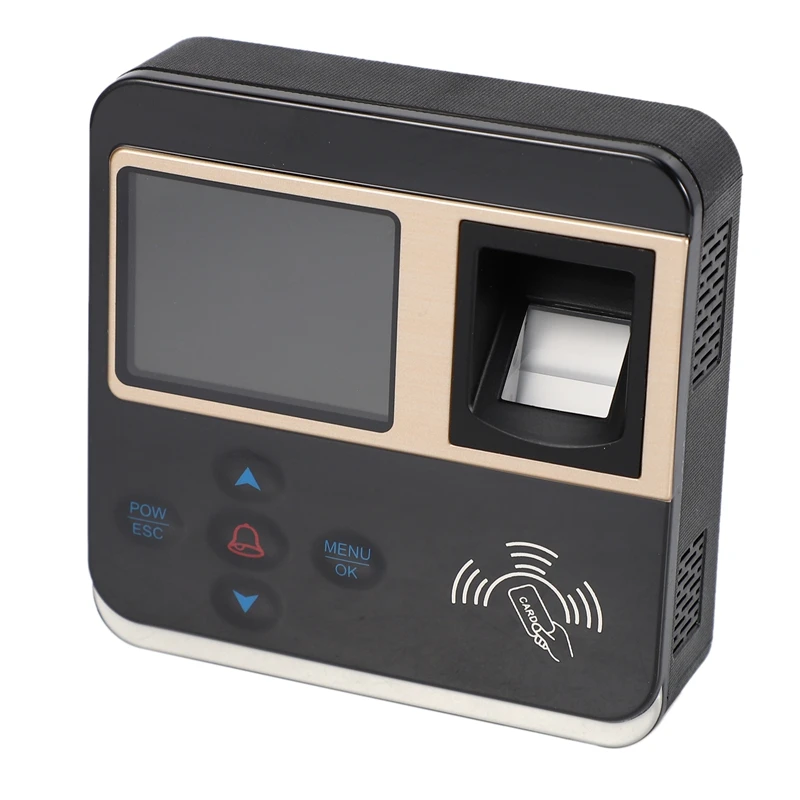

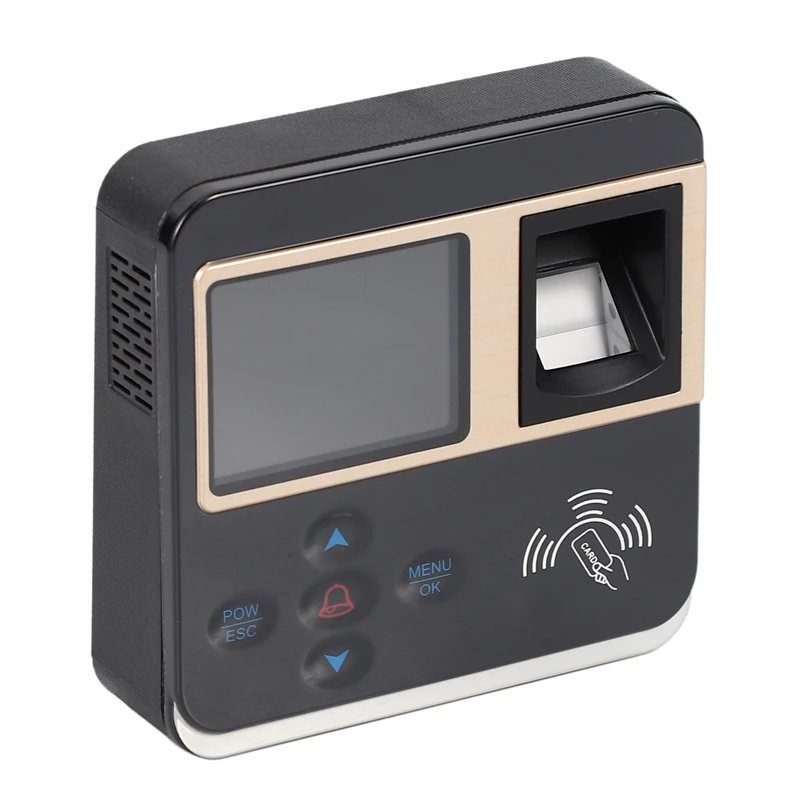

1. 2.4 inch TFT Color Screen
2. Fingerprint / Password / RS485
3. Fingerprint capacity: 800
4. Records capacity: 30,000
5.communication: TCP / IP / RS485
6. Power: DC 12V / 2A
7. Open doorby multilevel verfication, anti-pass back
8. Terminal size: 103 * 103 * 31mm

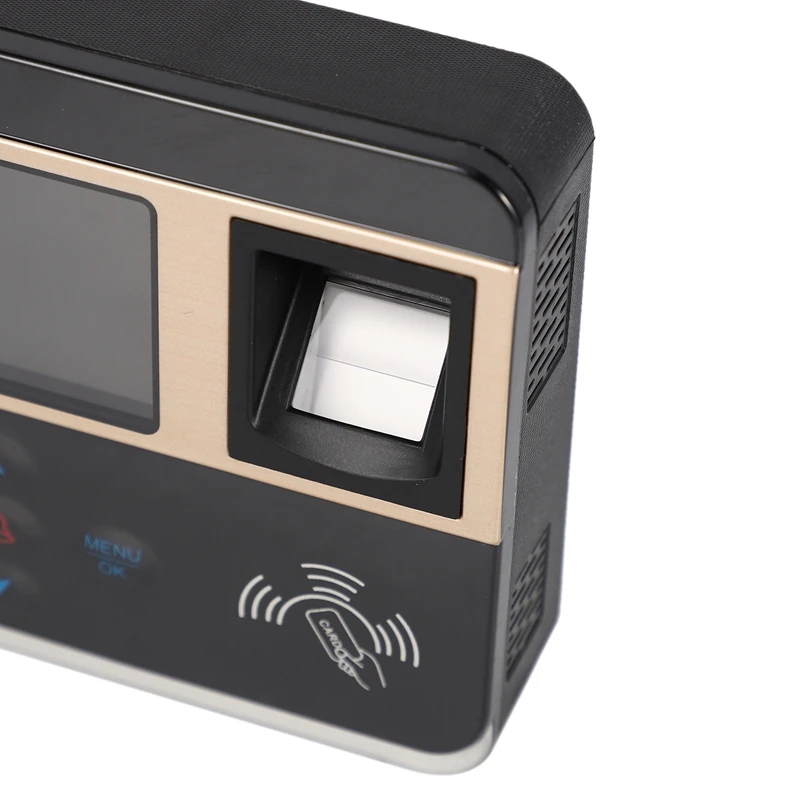

Fingerprint scanner:Optical fingerprint scanner( resolution : 500DPI)
FRRLess than or equal to0.1%
FAR:Less than or equal to0.00001%
Recognition speed:Less than or equal to1.0 S
Fingerprints intelligent learning update:Support
Work mode:Offline / online
Communication:RS485

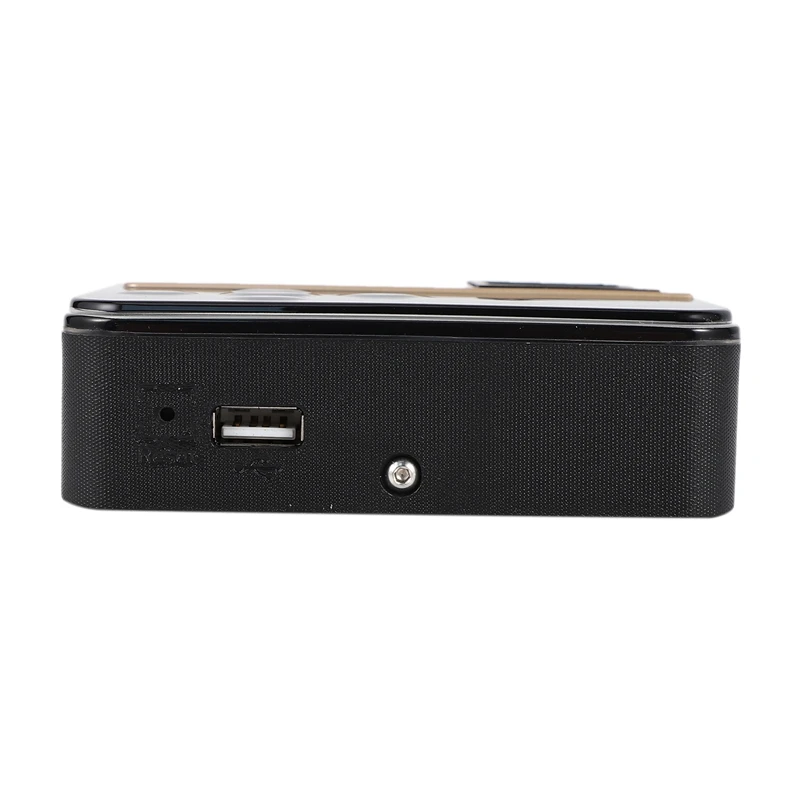

U disk to upload / download data:Support
Voice prompts:Chinese voice or other (customize)
Ring features :Built-in timing bell
Self-test function:Support
Power management function:Sleep,automatic startup , shutdown countdown , time off
Advanced access control feature :Not supported
Alarm :Tamper alarm,linkage (fire) alarm,input tamper alarm,out door alarm
Lock output:1 set
Doorbell(external):Support
Wiegand:Output : 1 group ; Input : 1 group
Other function:Install access permissions on the machine
Operating voltage / current :DC 12V/2A
Working environmentTemperature :0Celsius~+45Celsius , humidity(RH) : 20%~80%
Color:black
Material:plastic
Size:about 103 * 103 * 31mm
Package Contents:
1 * Access control
1 * Manual
Only the above package content, other products are not included.
