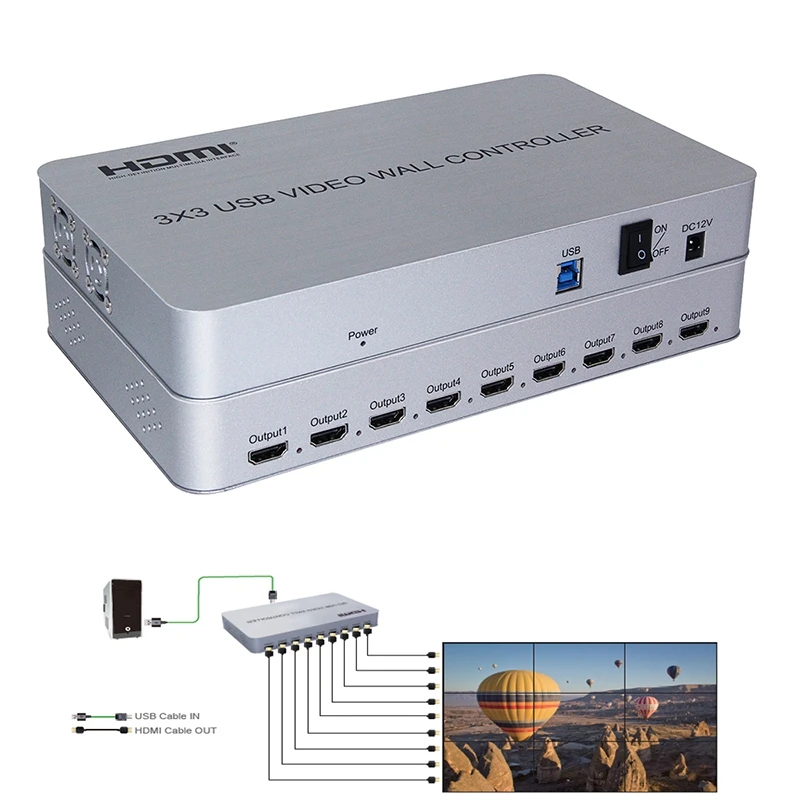

The 3X3 video wall controller is able to data-push the video of USB 3.0 port to max. 9 displays to finish the splicing of the whole video pictures. USB 3.0 port support max.4K resolution input and output HD video pictures to displayers .
Color: silver
Material: alloy casing
Plug Type:US Plug,it applies to Canada, India, Japan, Mexico, Thailand,taiwan the United States, the Philippines and so on.
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Support USB3.0
Support input highest resolution: 4k
Support hdmi output

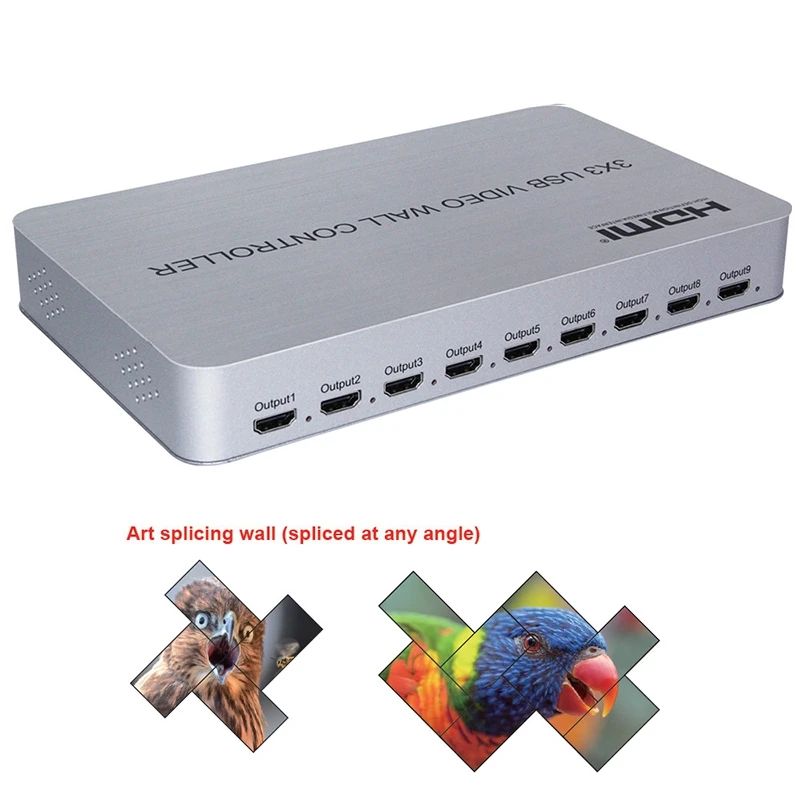

Support screen rotation at any angle
Support eliminate borders of splicing,projection fusion

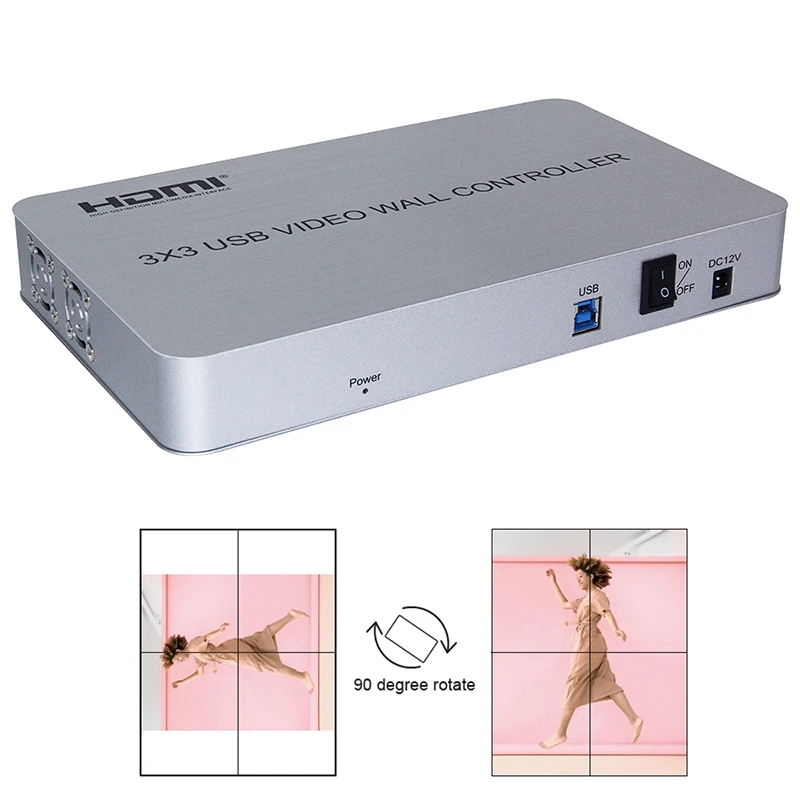

Support the image 90 degree rotate

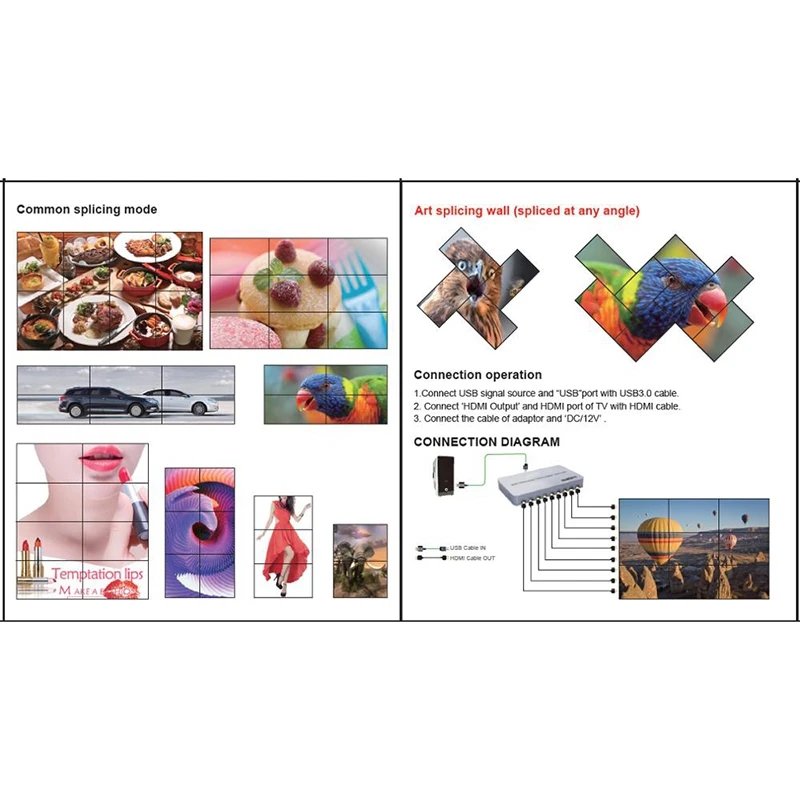

Support discretionarily splicing mode, the max 9 displays.
Support give best resolution for displays automatically.
Support perfect image without stretch
Support only Windows 10 system and 64 bit
Output resolution Max. 1080P
Input cable length ≤1.5 M USB3.0 standard cable
Output cable length ≤10M AWG26 HDMI standard cable Max.
working current 1.6 A
Output: DC12V/2A Working temperature range (-10 - +55℃)
Dimension 263x159x38(mm)
Weight appr.1300g
Package Contents:
1* 4K 3x3 USB3.0 Video Wall Controller
1* Power adaptor
1* User manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
