body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } working voltage :DC 24-36V
working current:20A
Power tube:Original IRFP260N (50 a 200 v)
Size:100*100*85mm
Spiral copper pipe size:Inside diameter 40 mm, high 45mm
Colour:red
Material:CCL+METAL
100% Brand New
Found with a 36V power supply completely into the new 30 * 30 graphite crucible input current of 25A
Found molten aluminum Power Requirements: 24V 350W - 500W power supply (15A to 20A) [melting point: 660 Degrees Celsius]
Found melting copper, gold, silver, power requirements: 36V 700W - 900W power supply (20A to 25A), respectively [melting point: 1083 Degrees Celsius, 1065 Degrees Celsius, 962 Degrees Celsius
Uses: DIY small parts made of steel hardening, annealing below the melting point of 1100 Degrees Celsius metal smelting, DIY small cooker and so on
notice :Only direct heating a steel material ( the magnet can be adsorbed material) Gold, silver, copper, aluminum can not be directly heated, need to match the graphite crucible melting,Work whirlpool brass heating will need to use a lot of water circulation cooling,Without water circulating cooling are possible, but will burn into a black vortex brass, it will not be much affected

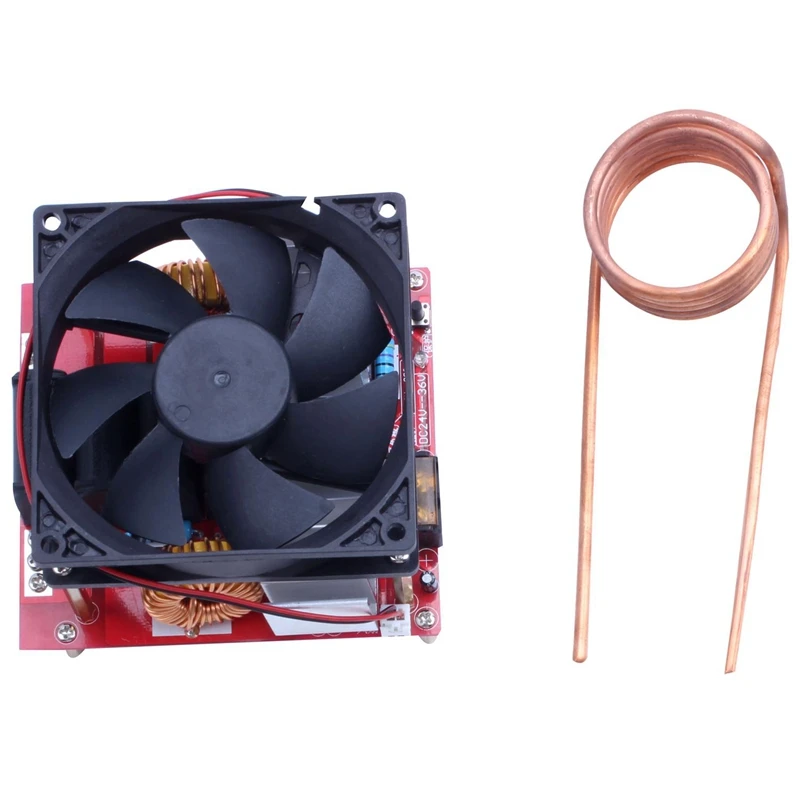

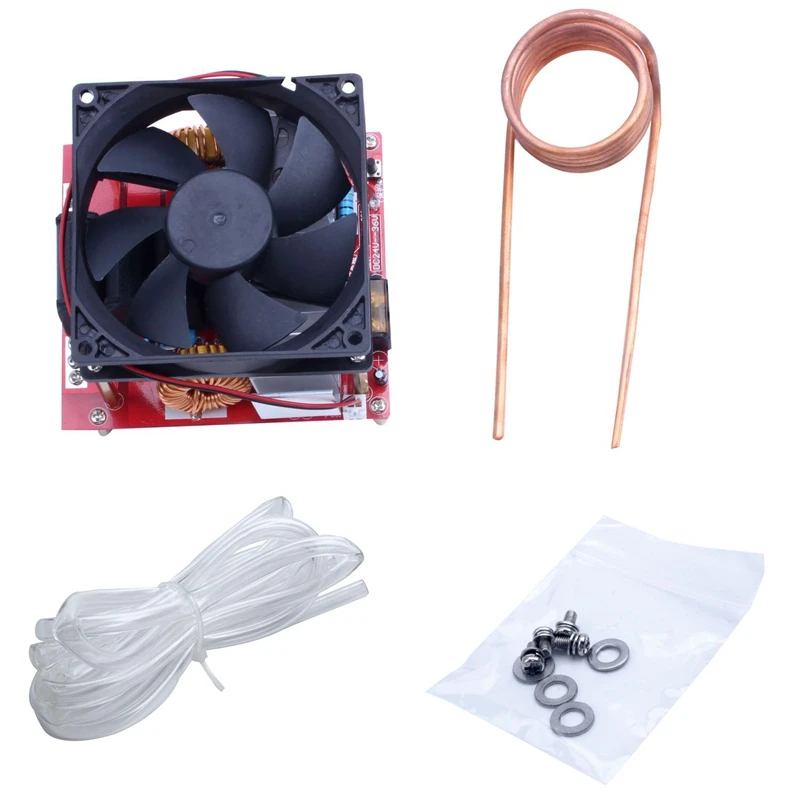

Package Contents:

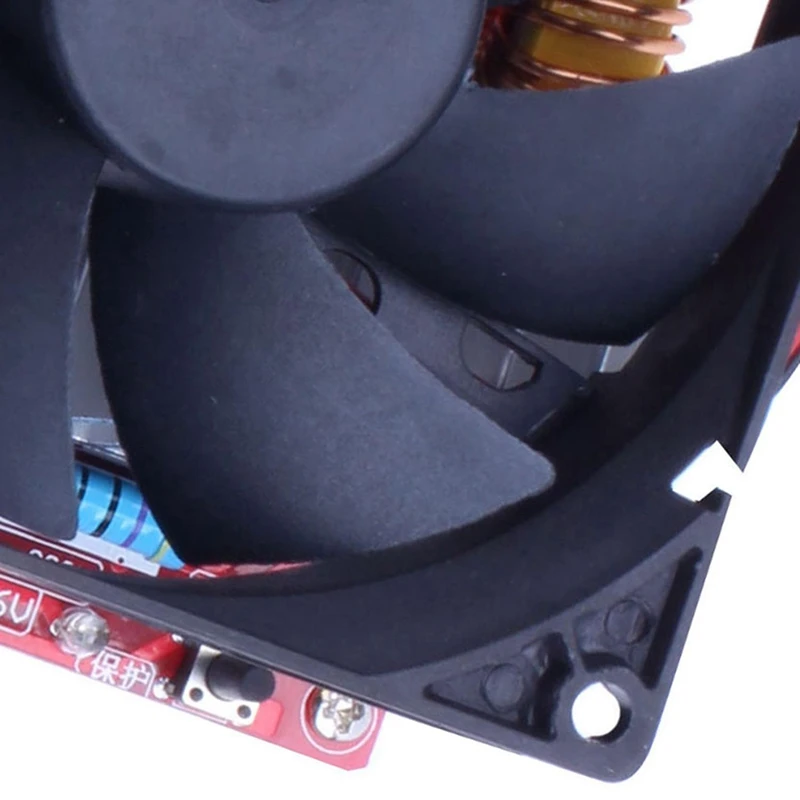

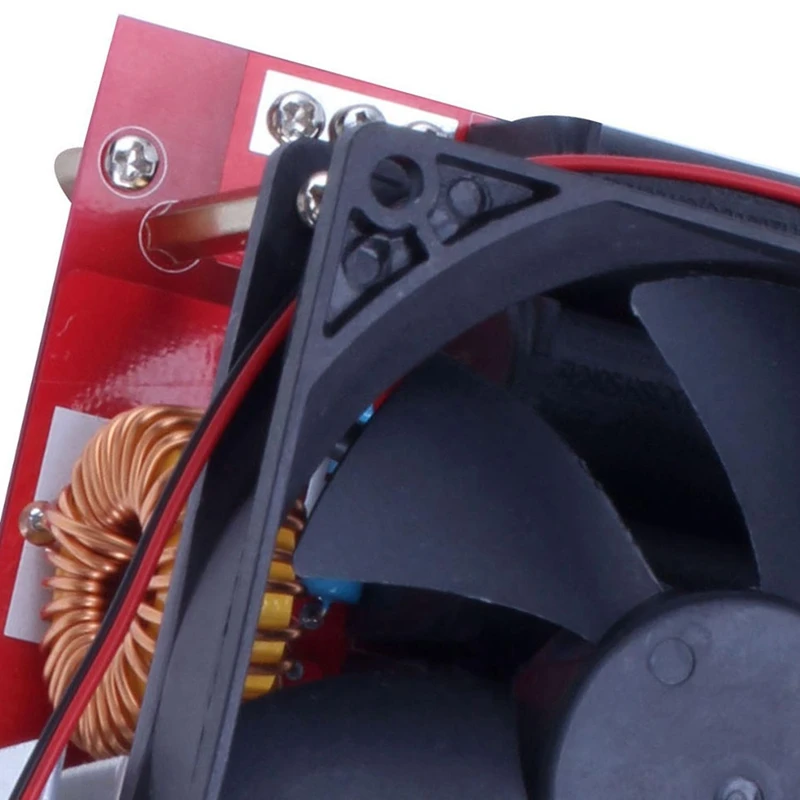

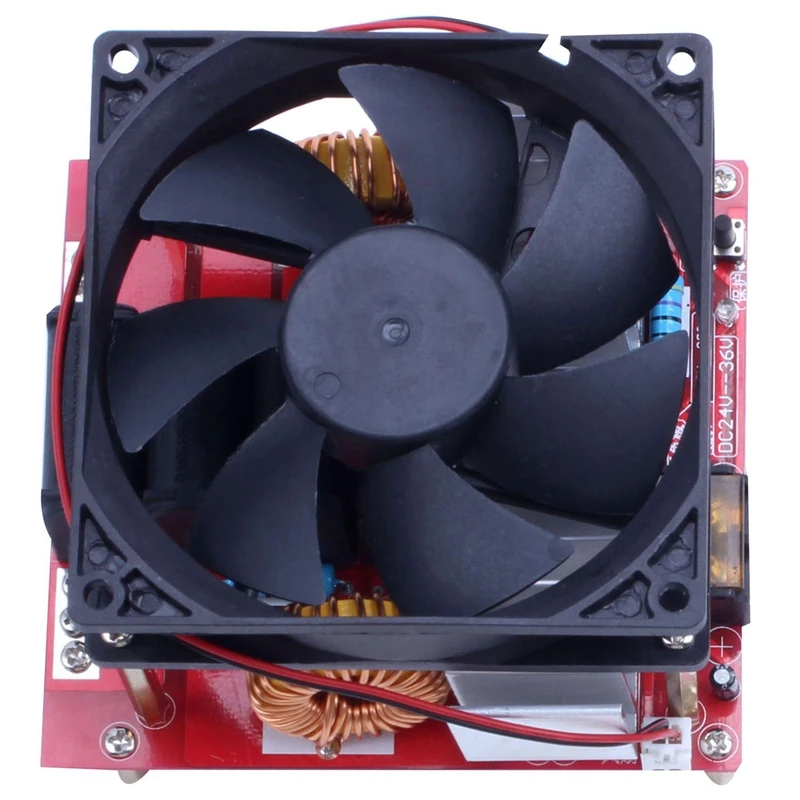

1pcs Induction Heating Board with Fan
1pcs Spiral copper pipe

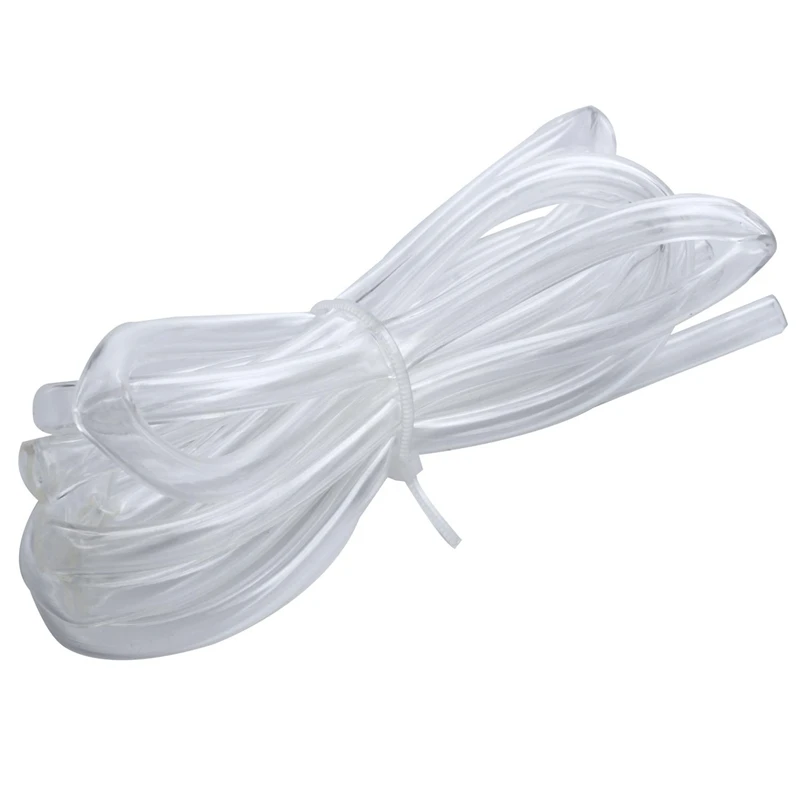

1pcs 2m Water pipe
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
