6CH/ 16CH/24CH/ 32CH Channel Robot Servo Motor Control Board & PS2 Controller + Receiver for Hexapod manipulator Mechanical Arm Bipedal Robot

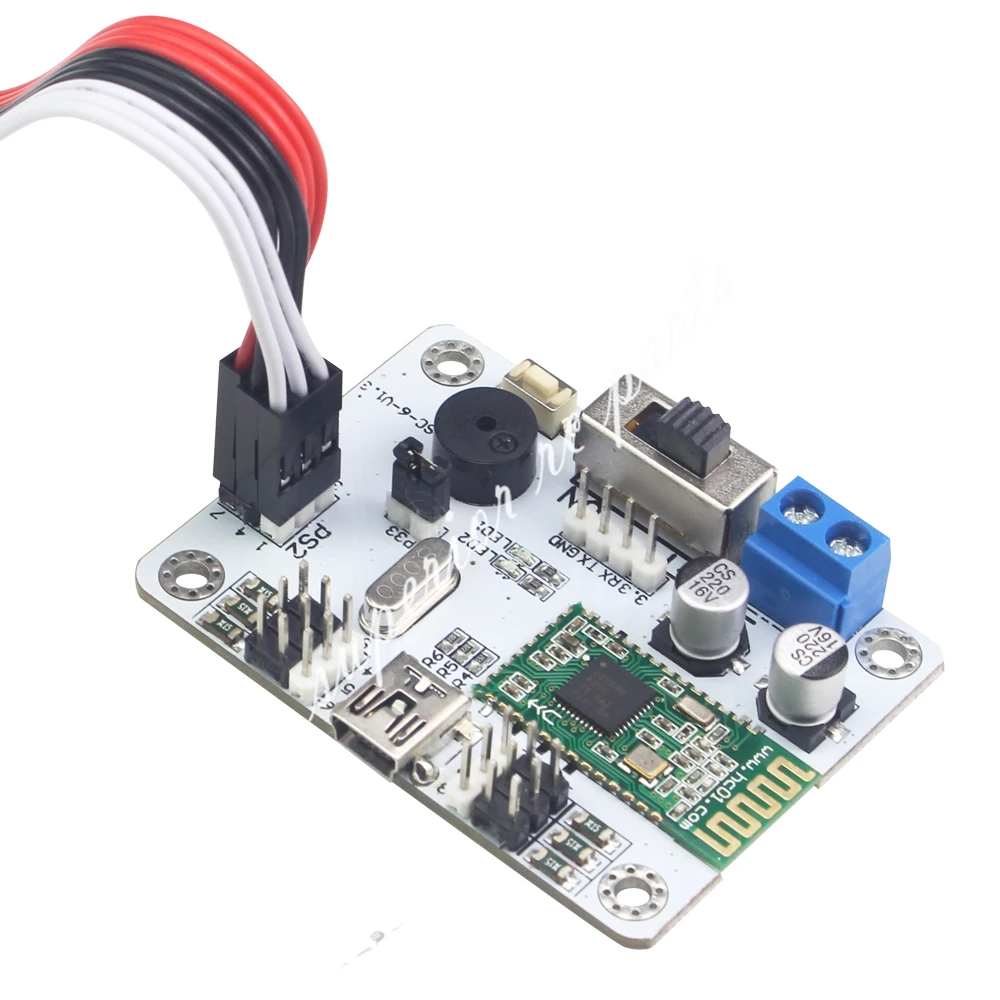

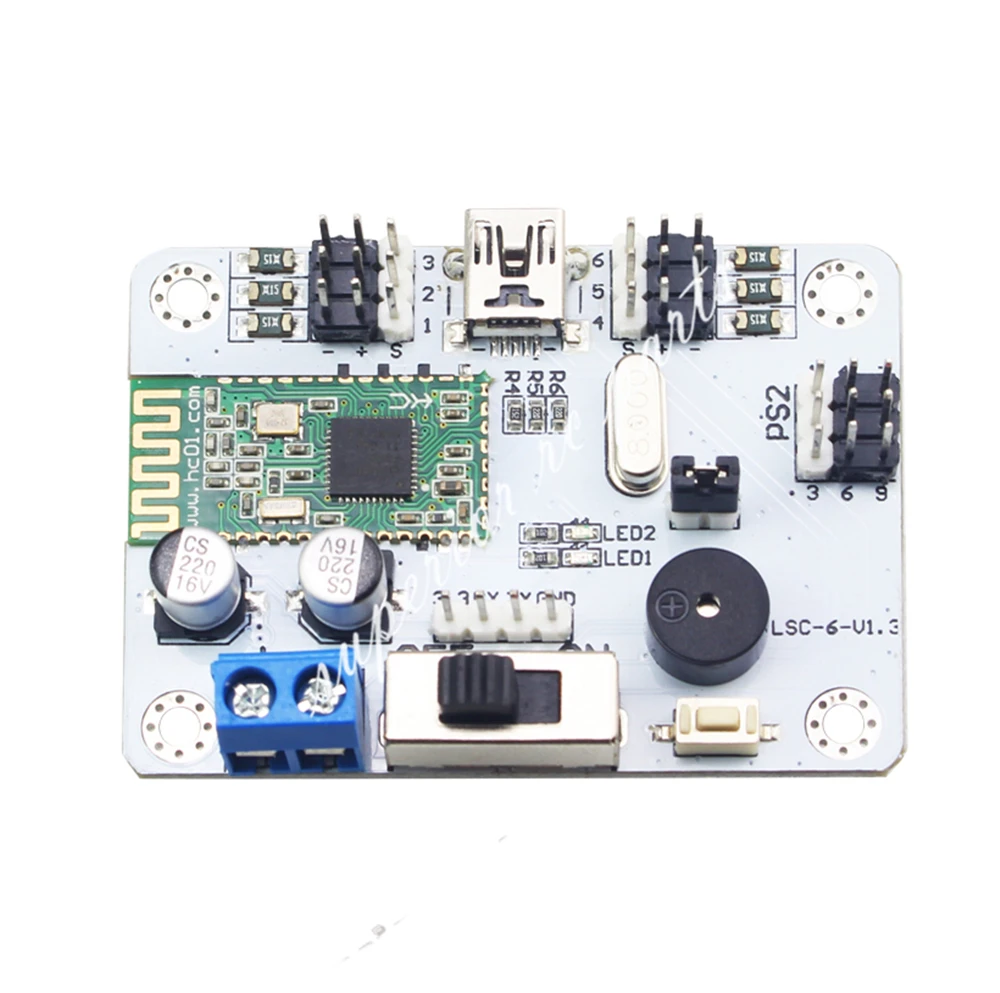

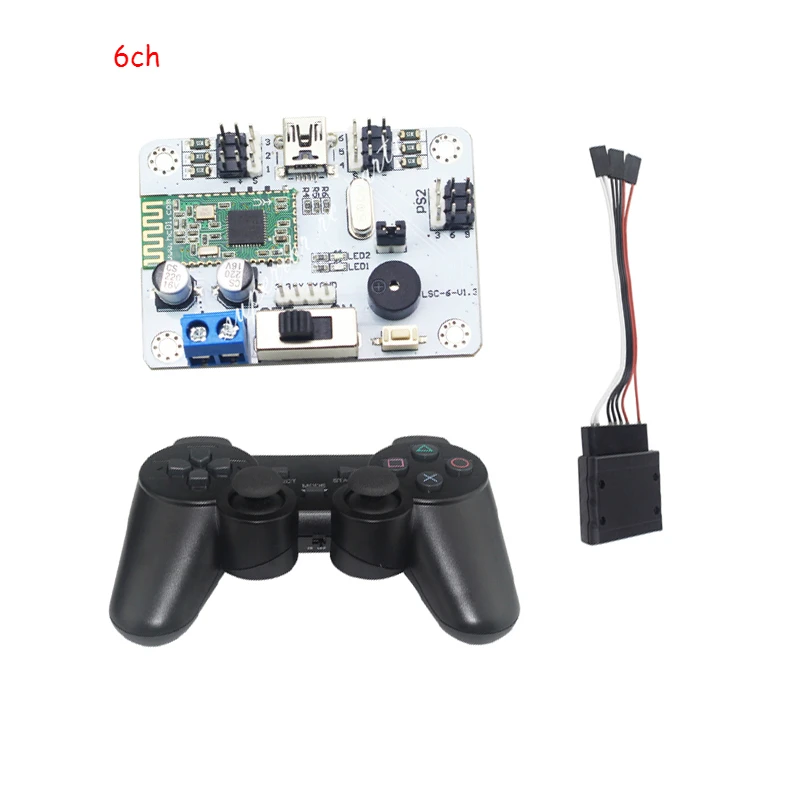

6CH controller parameters:
Specifications:

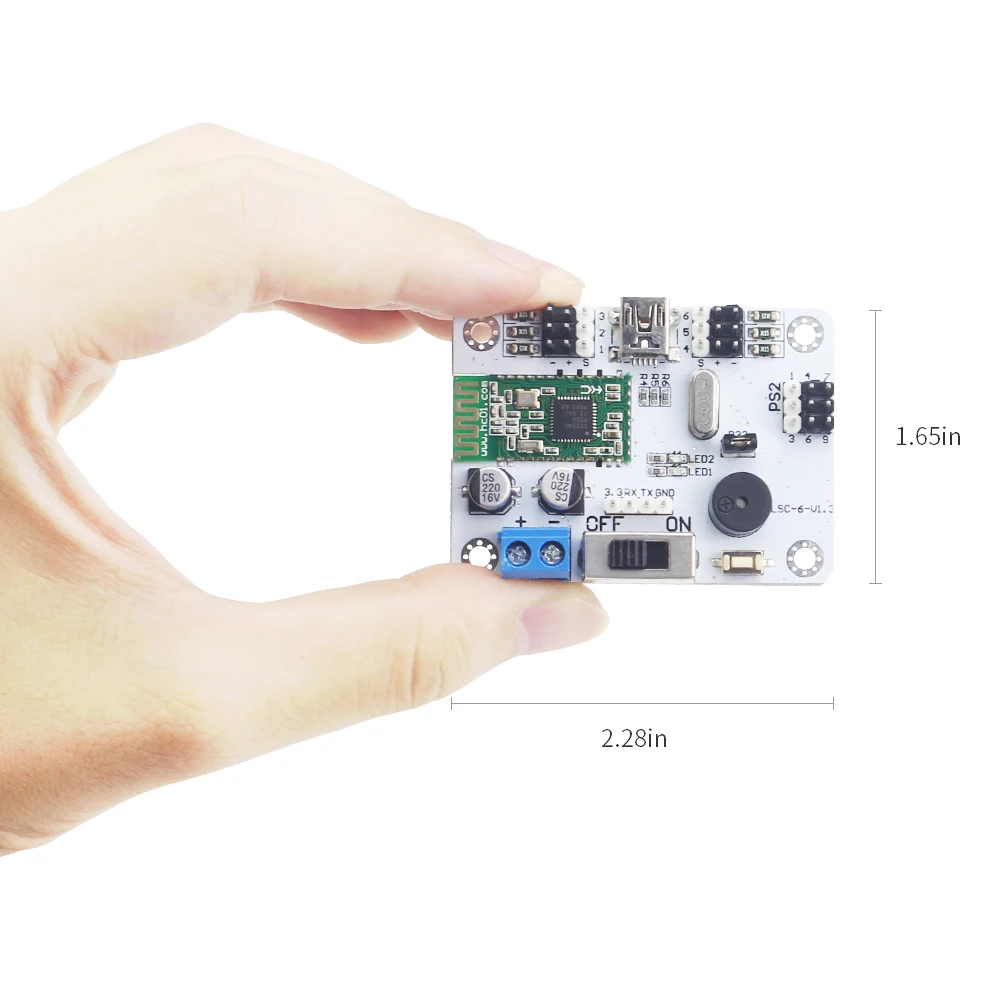

- Size: 58mm*42mm
- Mounting size: 49mm*34mm
- Bluetooth: 4.0
- PS2 controller: support
- Storage space: 16M
- Graphical programming:support
- MCU:support
- Low voltage alarm:support
- Built-in switch:support
- Over-current protection: support
- Weight: 20g
- Mp3 module: External connection
- Signal insulation protection: support
Package included:
- 1x 6CH servo controller
- 1x USB Cable

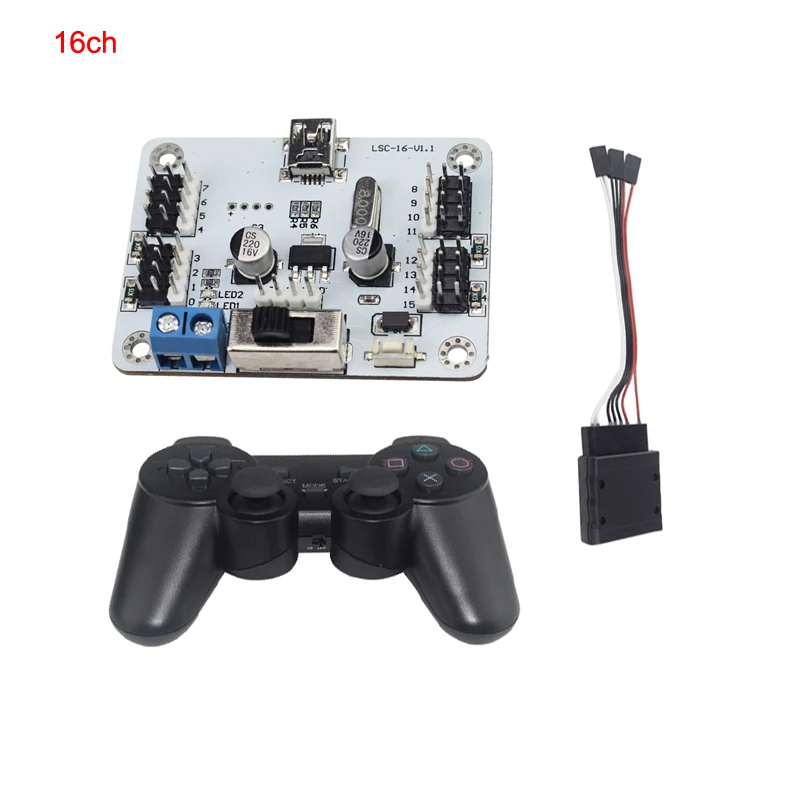

16CH controller parameters:
Product description

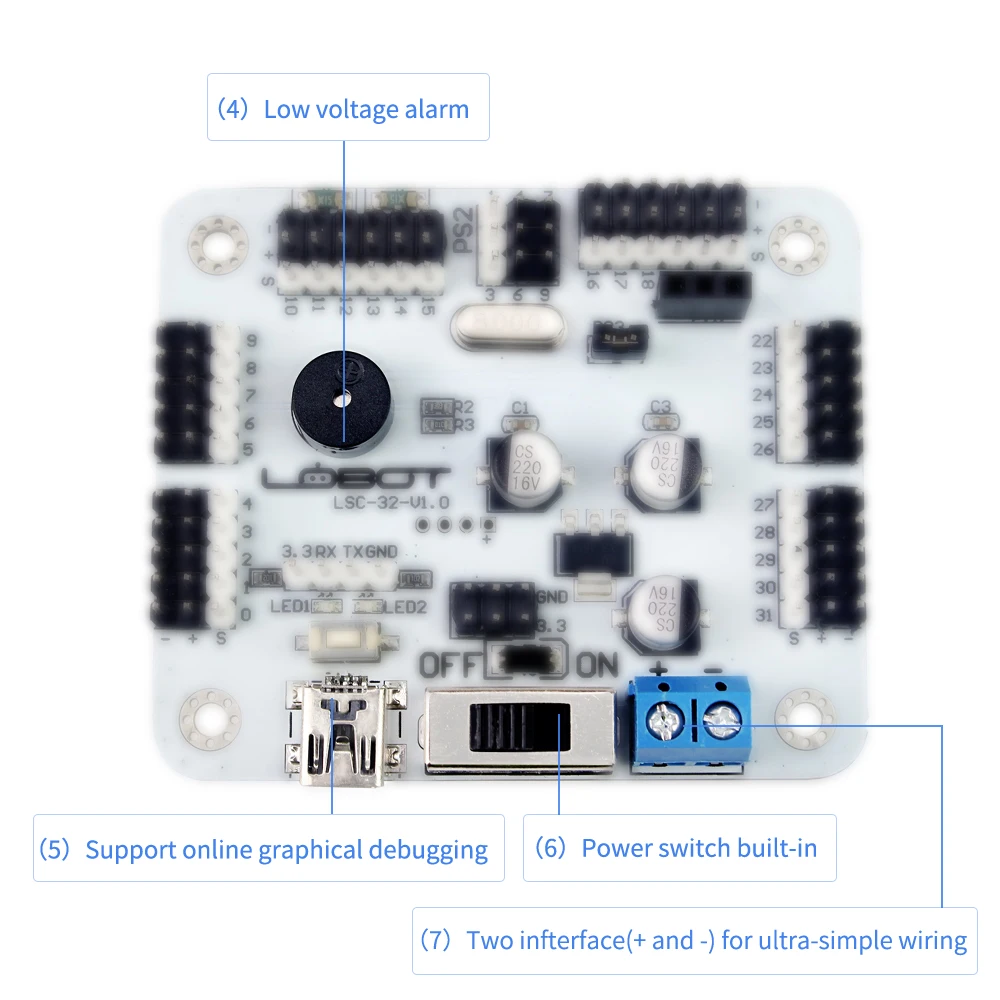

(1)With current-limiting protection. The output of the servo is isolated from the CPU to avoid the current surge of servo causing damage to the CPU.
(2)CPU using high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer, high-precision control of 16-channel servo movement, speed adjustable.
(3)16M high-capacity memory, enough for your use! Can hold 230 action groups! Each action group can hold up to 510 actions!

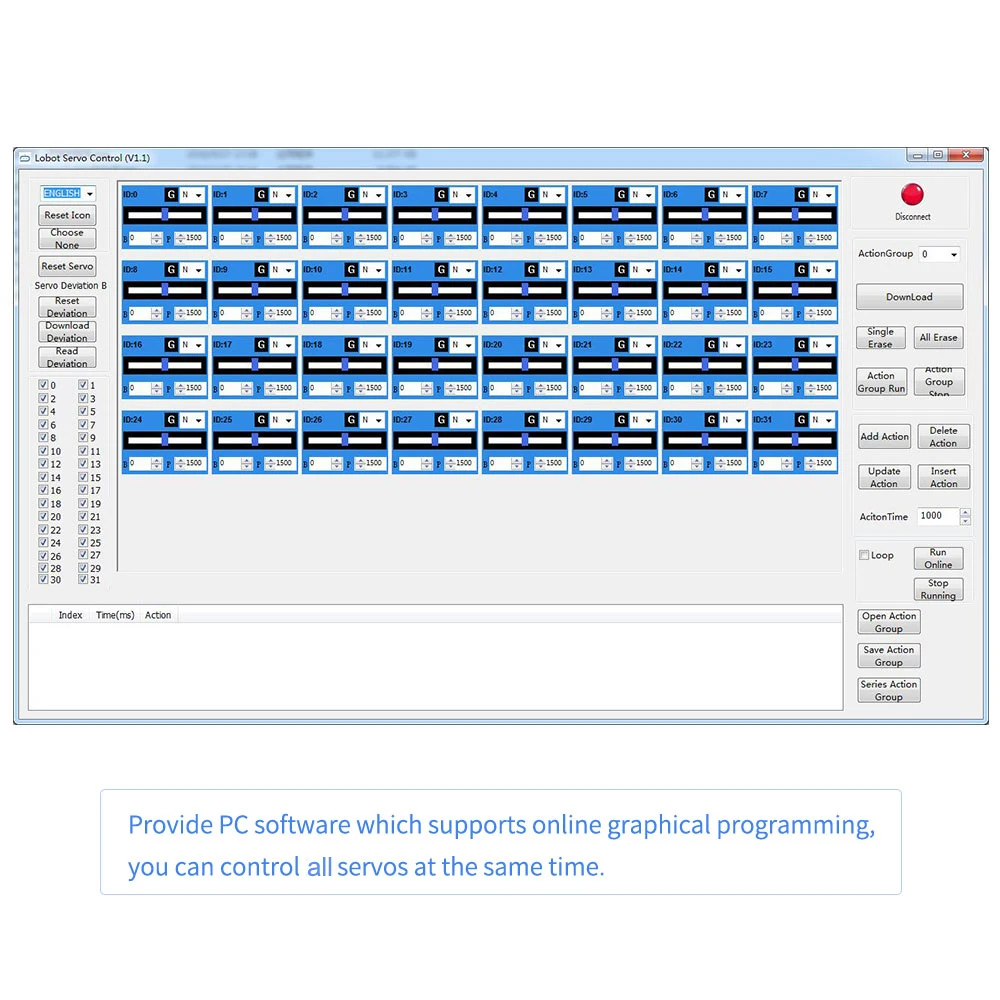

(4)Support online debugging, do not need to install any drivers by yourself(Automatically install drivers).
(5)0~3rd and 12~15th servo interface have over-current protection!Greatly reducing the risk of servo burned out because of the locked-rotor.

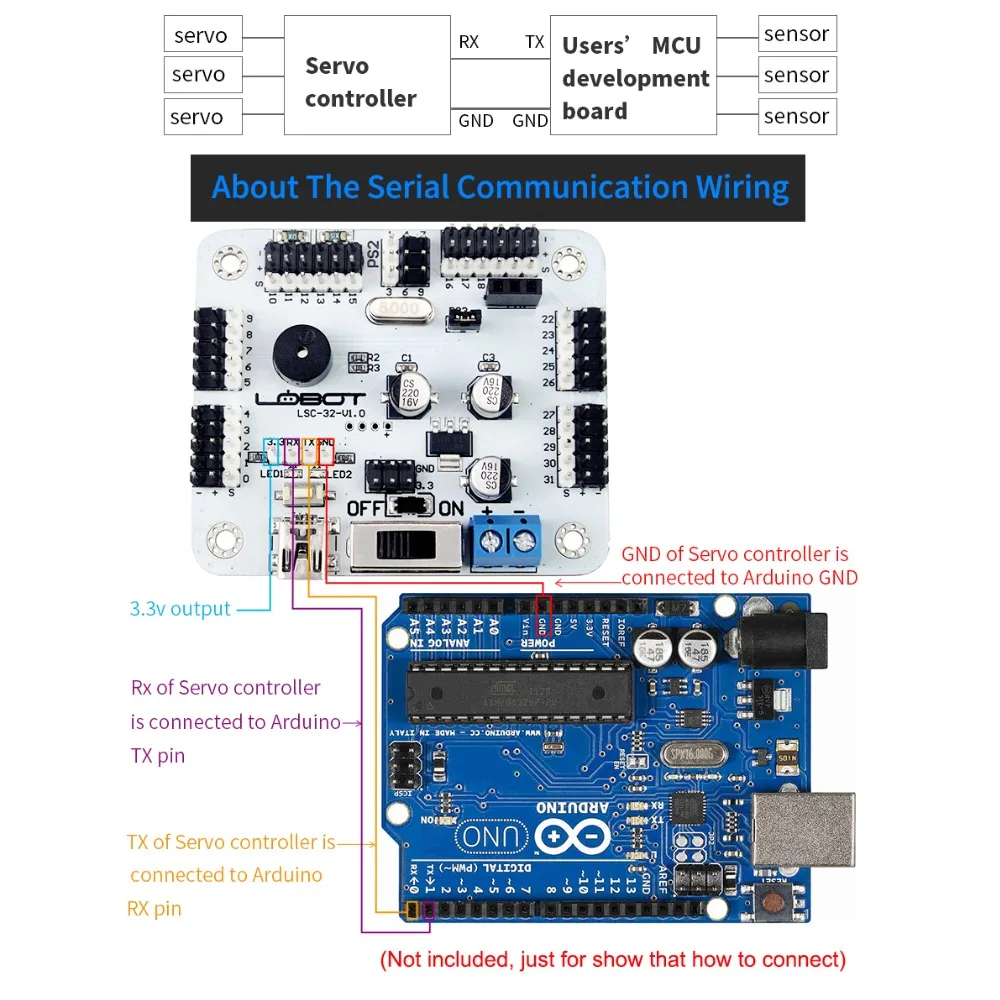

(6)Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
(7)Power switch built-in, easy to use, reduce your wiring trouble
(8)Support two offline operating modes, you can run offline 1 times, you can also loop run off-line all the time.
(9)Ultra-simple wiring, the control board only has positive and negative power interface.
Package Content:
1 x Servo Controller
1 x Mini USB Cable
Note:
-The PC software support Windows, no support for Mac
-There are links of pc software and video tutorials(http://bit.ly/2v8C81Y) in the user manual, please access the links to get all informations.

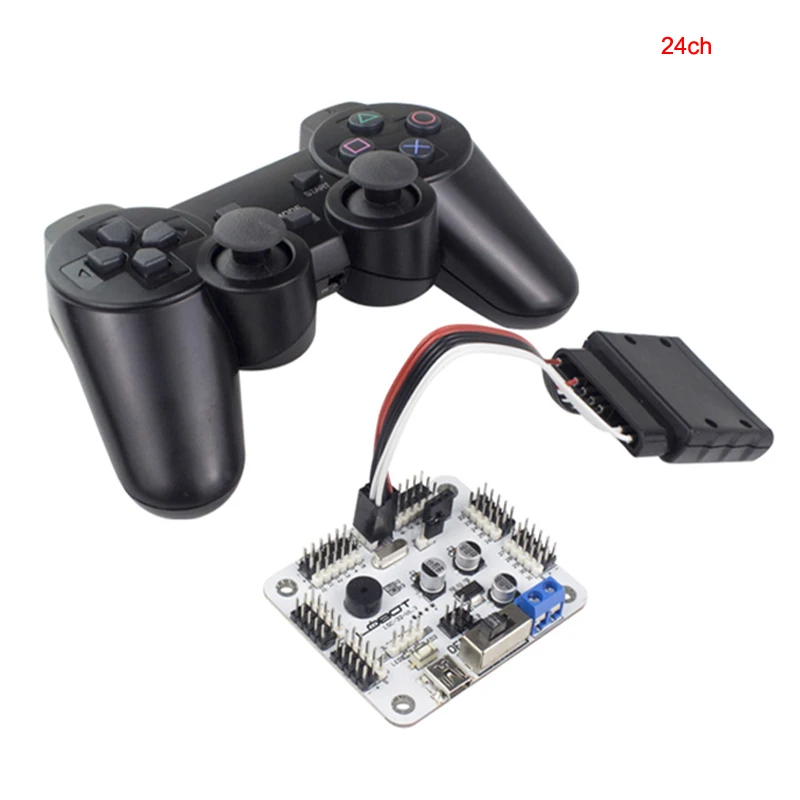

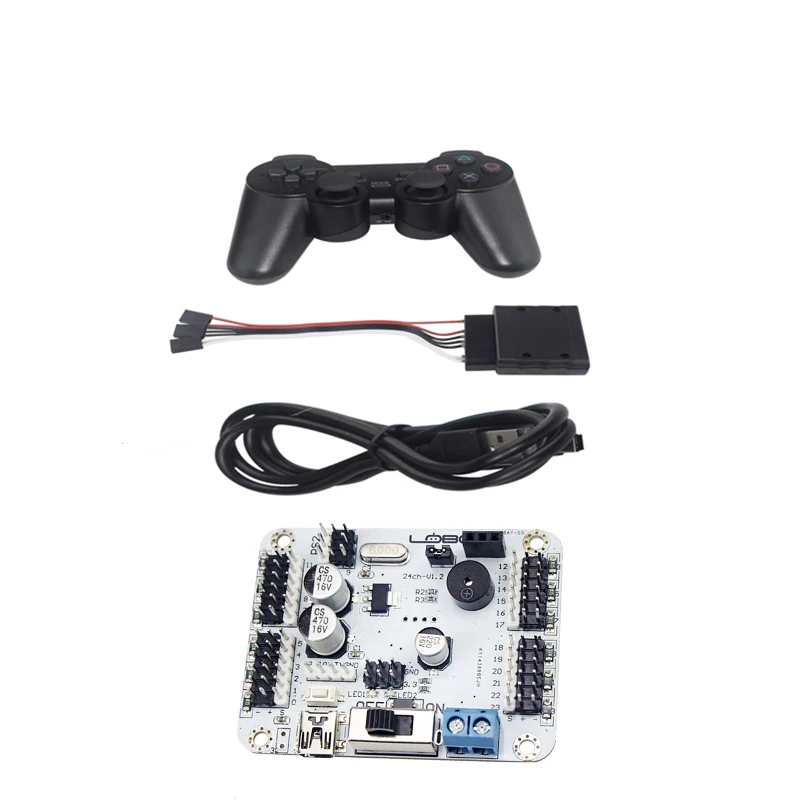

24CH controller parameters:
Specifications:
- Size: 65mm*50mm
- Mounting size: 54mm*44mm
- USB controller: support
- PS2 controller: support
- Graphical programming:support
- Low voltage alarm:support
- Built-in switch:support
- Over-current protection: support
- Mp3 module: support
- MCU: support
- Signal insulation protection: support
- The maximum number of control servos: 24
- Weight: 26g
- Storage space: 16M
Package included:
1 x Servo Controller
1 x Mini USB Cable

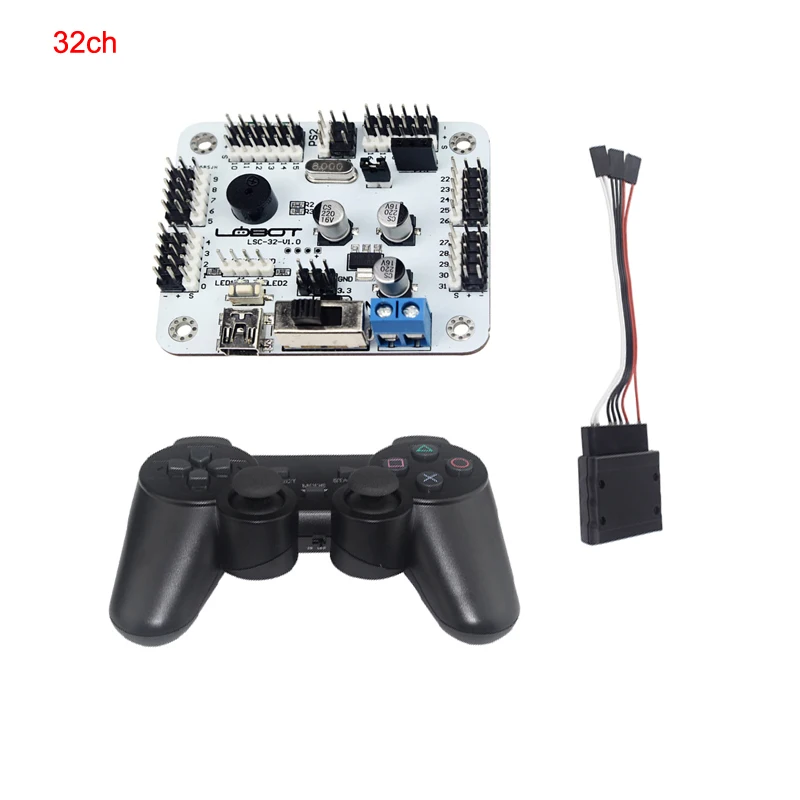

32CH controller parameters:
Specifications:
- Buzzer Low Voltage Alarm when the voltage is lower than 5V
- Suport Offline operation/PS2 Controller/Bluetooth/Mp3 Module
- Control channels: 32

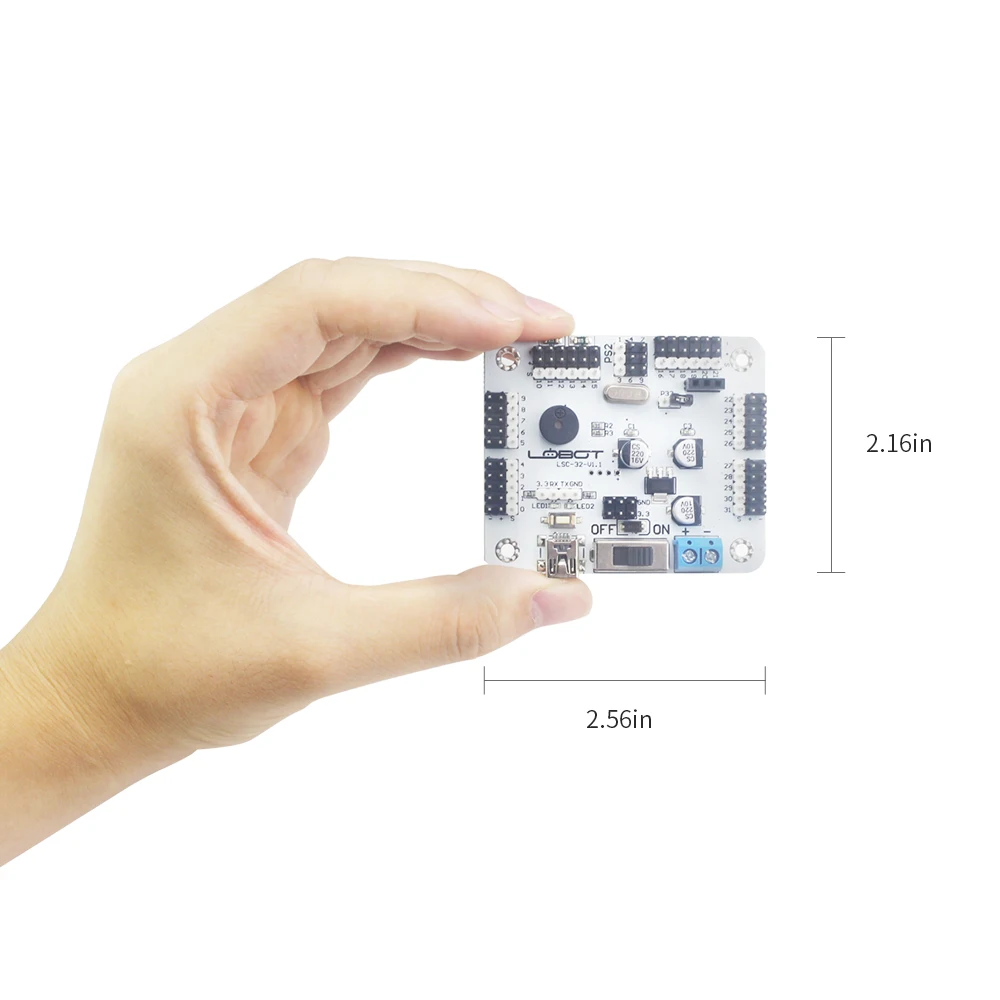

- Dimensions: 65mm x 55mm
- Mounting hole size:54*44mm
- USB control: Support
- Storage :16M
- Weight: 27g
- PS2 Controller: Support
- Signal Isolation Protection: Support
- Built-in Switch: Support
- Overcurrent protection: Support
- Connect External Bluetooth module: Support
- Connect External MP3 module: Support
Package included:
- 1x 32CH servo controller
1 x Mini USB Cable
Specifications:
- State of art 2.4GHz wireless technology, no more tangled cord
- Use 2xAAA Batteries (not included)
- Ergonomic Analog Sticks & Directional Pad for superior control
- Auto-detect feature for simplified set up
- Third party product, not made by Sony
note:
1) Only applicable to our store 32, 24, 6CH Servo controller, other shops can not be compatible.
2) the receiver is ready for the connection handle.
