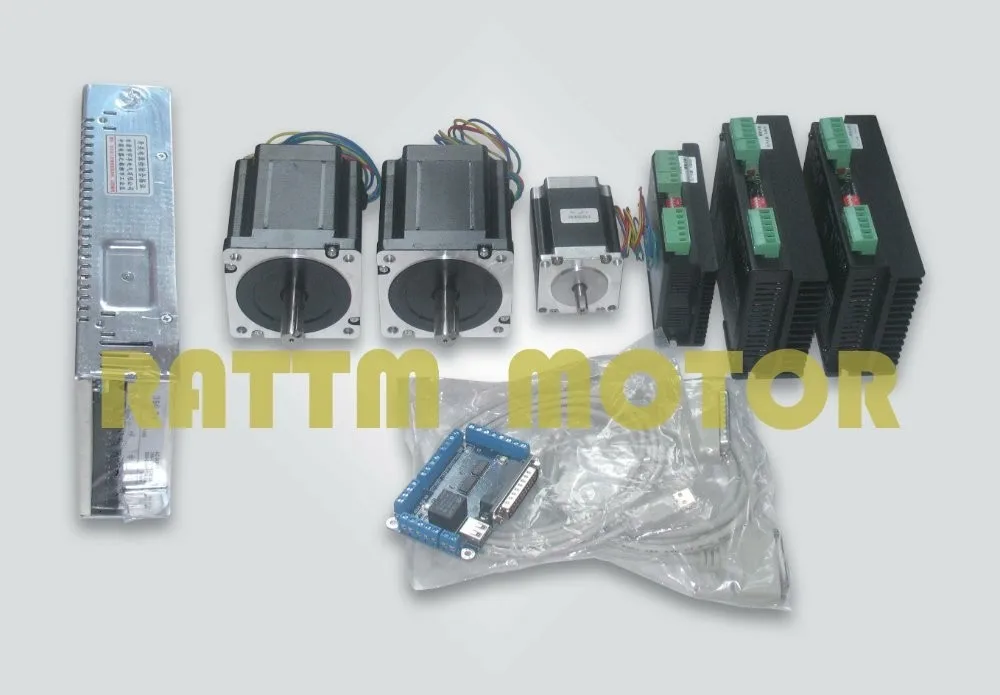

Package include:

·  2 x CW8060 stepper motor driver  6A 80V/DC

·  1 x CW5045 stepper motor driver 4.5A 50V/DC

·  2 x 34HS9801 stepper motor 98mm length 4A 878Oz-in

·  1 x 23HS8430 stepper motor 76mm length 3A 270Oz-in

·  2 x 400W 48V/8.3Aswitching power supply

·  1 x 5 axis breakout board V5 type

·  1 x DB25 parallel cable

·  1 x USB cable

·  English user manual for breakout board and stepper motor driver will send by email

3 Axis for medium size Router Mill Plasma or Laser

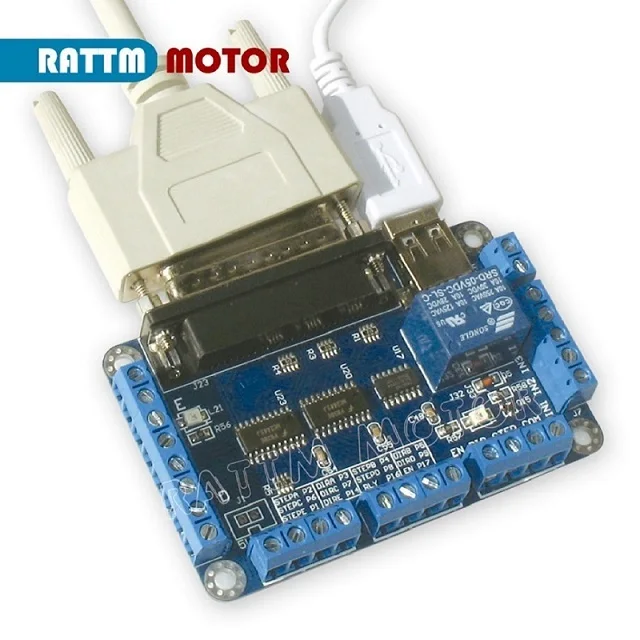

1.  5 axis breakout board

·  It can most connection 5pcs driver and control 5pcs motor in the same time

·  It is with 4-wire limit switch to insure our safty movement

·  It is with relay port to contro the cnc spindle

·  Working voltage is 5VDC and support with MACH3,EMC2,KCAM4 software

·  Size:9x5.7cm

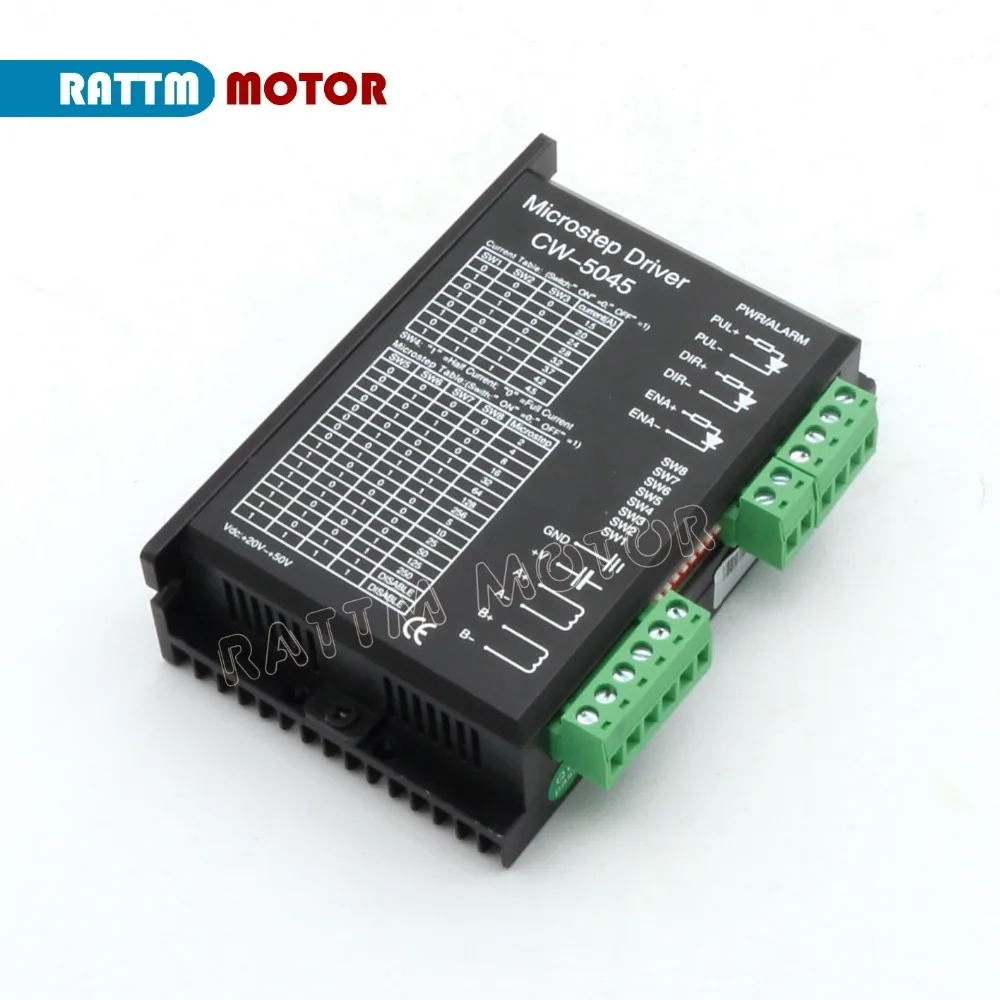

2.  CW5045 high microstep stepper motor driver

·  DC power input type: 24V~50VDC

·  Output current: 1.3A-4.5A

·  Mircostepping: 1(1.8º) 1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256; 1/5,1/10,1/25,1/50,1/125,1/250

·  Protect form: Overheated  protect, lock automatic half current ,error connect protect

·  Working environment: Temperature-15-40deg  Humidity<90%

·  It is fit for NEMA17-23 two and four phase stepper motors whose current is small than 4.5A,it also can fit for small length NEMA34 two and four phase stepper motors.

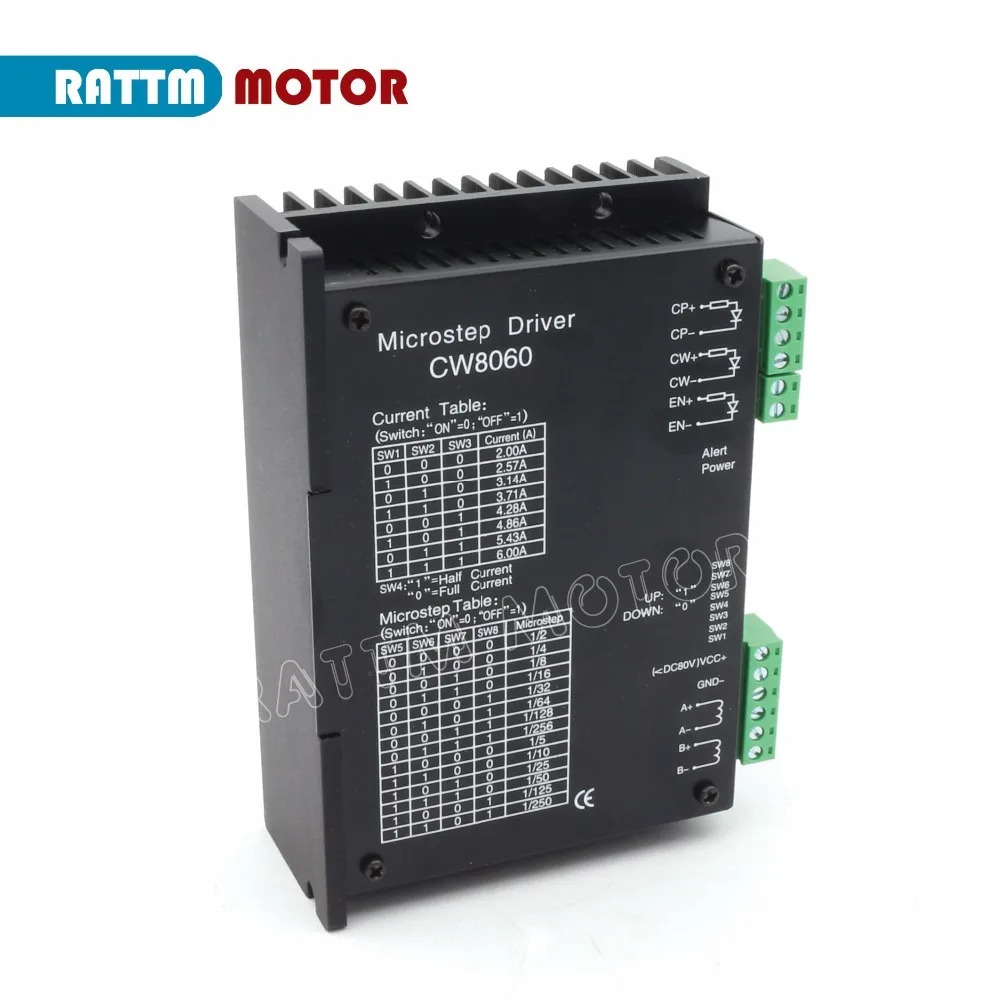

3.  CW8060 high microstep stepper motor driver

Characteristics:

1.DC power input type:24V~80V

2.Output current:2~6A

3.Mircostepping:1(1.8deg),1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256; 1/5,1/10,1/25,1/50,1/125,1/250

4.Protect form: Overheated  protect, lock automatic half current ,error connect protect

5.The maximum pulse rate is 100KHZ.

6. Dimensions:147mmx97mmx30mm

7.Weight:<500g.

8.Working environment:Temperature-15~40deg Humidity<90%.

I/O Ports:

1.VCC+:DC power positive pole

Note:Must guard against exceeding 80V,

so as not to damage the module

2.GND:DC power cathode

3.A+, A-:Stepping motor one winding

4.B+, B-:Stepping motor other winding

5.CP +,CP -:Stepping pulse input+5V (Rising edge effective, rising edge duration >10uS)

6.CW +,CW-:Stepping motor direction input, voltage level touched off,high towards, low reverse

7.REST+,REST-: motor free

The interface see the right picture

NOTE:

1, When ambient temperature is high or working current over 3A,  fix the module on big metal shell , or use axle flows fan dispels the heat, to make the module run reliably for a long time.

2, Half current automatically: if control machine not send out signal  in half second, driver enter half current state of automatically for electricity saving, the phase current of the winding of the electric.

3, The fault phase is protected : When the double-phase electrical machinery is connected with driver , users are apt to connect the phase by mistake, thus would damage the driver seriously. The protecting circuit is within this driver, when users connect by mistake, the driver will not be damaged, but the electrical machinery runs abnormally, shake , and output is small.Please check whether the wiring of electrical machinery is a mistake.

Switch Choice: ("ON=0,OFF=1")

(1)Microstepping choice:

SW5

0

0

0

0

0

0

0

0

1

1

1

1

1

1

SW6

0

1

0

1

0

1

0

1

0

1

0

1

0

1

SW7

0

0

1

1

0

0

1

1

0

0

1

1

0

0

SW8

0

0

0

0

1

1

1

1

0

0

0

0

1

1

Micro

1/2

1/4

1/8

1/16

1/32

1/64

1/128

1/256

1/5

1/10

1/25

1/50

1/125

1/250

(2)Current choice:

SW1

0

1

0

1

0

1

0

1

SW2

0

0

1

1

0

0

1

1

SW3

0

0

0

0

1

1

1

1

Current(A)

2.00

2.57

3.14

3.71

4.28

4.86

5.43

6.00

(3)Full current or half current choice:

SW4:0=Full current;1=half current

(4)Pulse choice:

Usually default setting is single pulse.

4. Stepper Motor

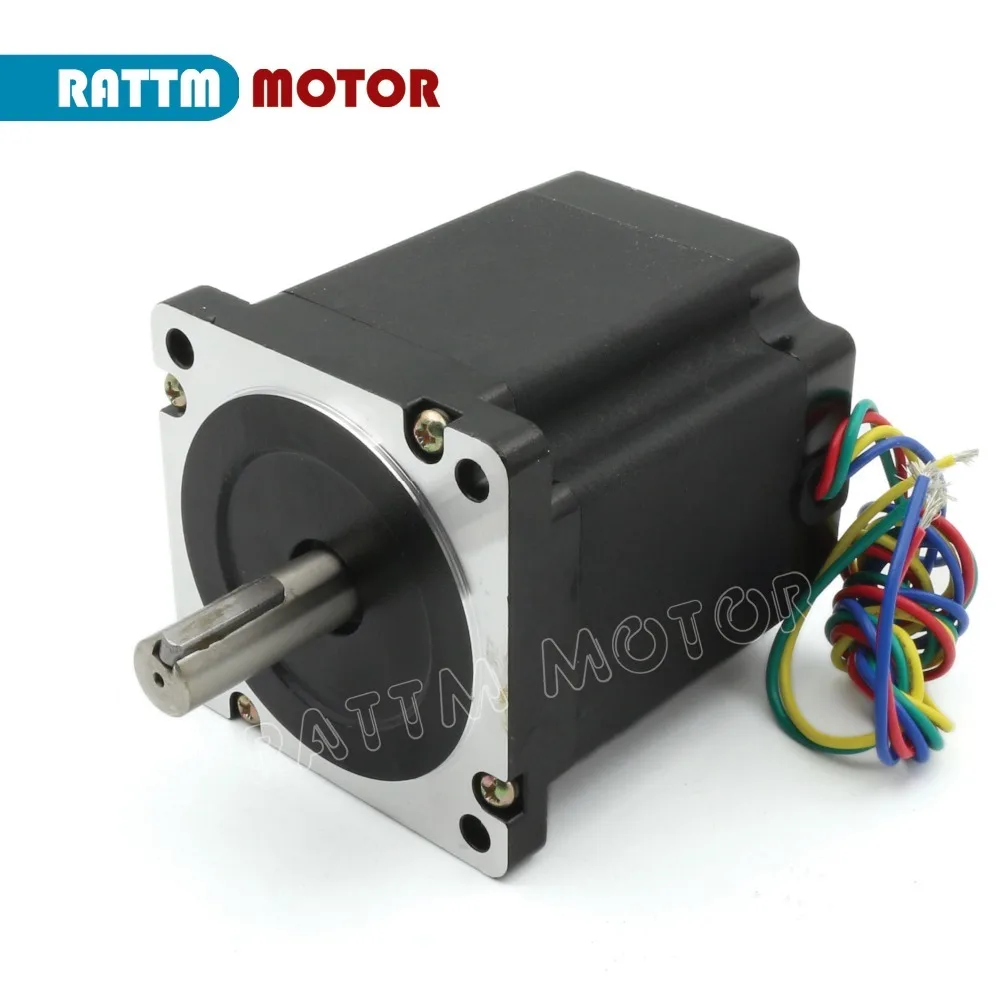

High quality NEMA34 stepper motor:

Datasheet (34HS9801,4A,878 oz-in or 5.6kg.cm holding torque,14mm diameter and 37mm length shaft with keyslot ):

Drawing:

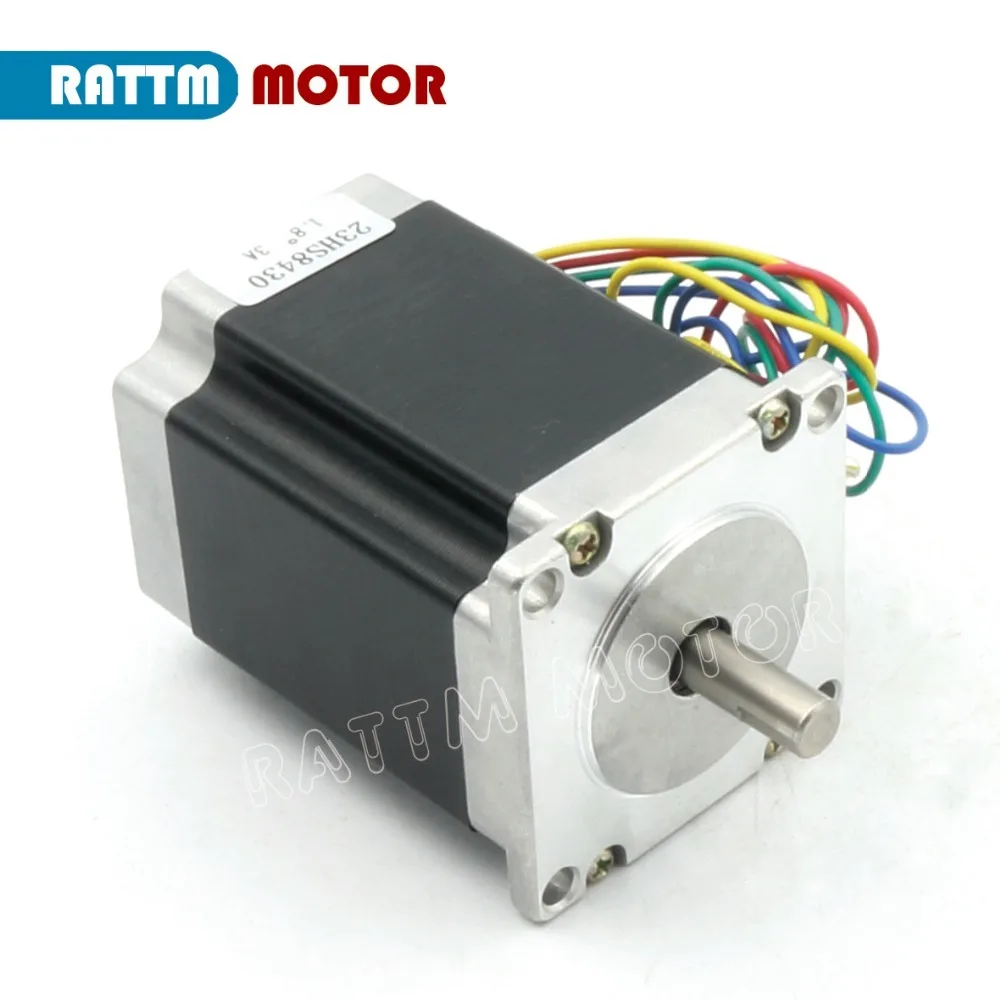

23HS8430 Stepper Motor:

Shaft : (front shaft is 8mm diameter,21mm length;270Oz-in 76mm length )

Wiring:

Red:     A+

Green:  A-

Yellow: B+

Blue:    B-

4.Switching power supply

400W,Input:100-120VAC or 200-240VAC,50/60Hz,Output:48v/8.3 A,single output switching power supply
