EU Free VAT 4 axis CNC 6040 2200w 2.2KW USB port Mach3 Router / Milling Machine Engraver Engraving 220V/AC | Инструменты

EU Free VAT 4 axis CNC 6040 2200w 2.2KW USB port Mach3 Router / Milling Machine Engraver Engraving 220V/AC | Инструменты

https:/item/1005003461066489.html

Notice :

Due to the new EU tax law, all EU orders on AliExpress platform,the AliExpress platform will automatically add 21% (VAT), If you need orders shipped from the EU and do not want to pay additional (VAT) and (customs fee), it is recommended that you follow this Guidance:

1.) you can choice ship from China make an order , but doesn't payment ( don't enter your payment password, will be did not payment )

2. you need to submit your order, when we find you order form AliExpress,

3.) Pls waiting we amend the cost, let the price same as ship from EU warehouse ( Czech Republic , Poland , Spain , France , Belgium warehouses ),

4.) When we changed the price for your order and you paid it, we will from our Germany warehouse free shipping with free (VAT) and free (customs) fee send your order to EU countries ),

If you don't understand anything, you can leave us a message through AliExpress

Notice:

The free ship and free VAT Europe countries area:

Austria,Belgium,Bulgaria, theCzechRepublic,Denmark,Estonia,Finland,France,

Germany,Greece,Hungary,Ireland,Italy,Latvia,Lithuania,Luxembourg,Monaco,

Netherlands,Norway,Poland,Portugal,Romania,Slovakia,Slovenia,Spain,Sweden.

Package include:

·  1 x4 Axis 6040Z-2200W USB Mach3 CNC Router machine ( EU warehouse delivery 220V type Machine )

·  1 x Control box ( 4 axis )

·  1 x USB cable

·  1 x Power cable  (US,EU plug)

·  1 x Tool box and tools

·  3 x Aixs stepper motors

·  1 x 2.2Kw water cooled spindle motor ER20

·  1 x 2.2Kw Inverter VFD

·  2 x connect wires

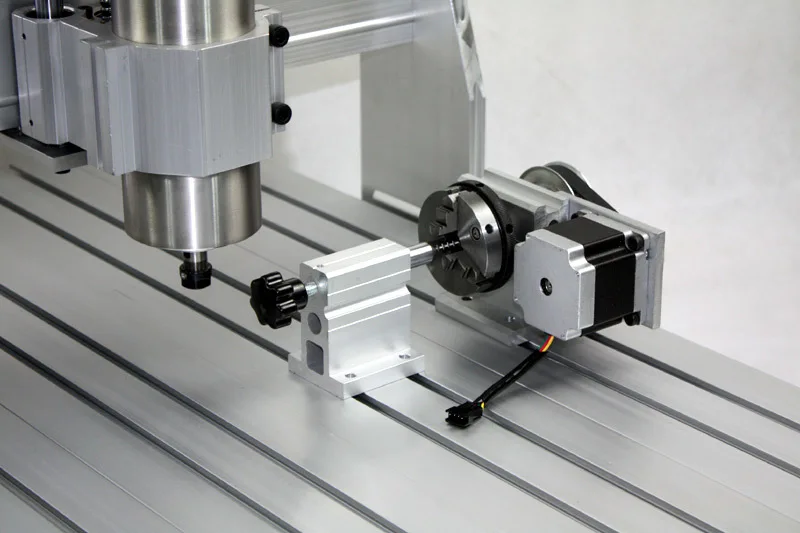

·  1 x the rotary axis

·  1 x 75W water pump 220V

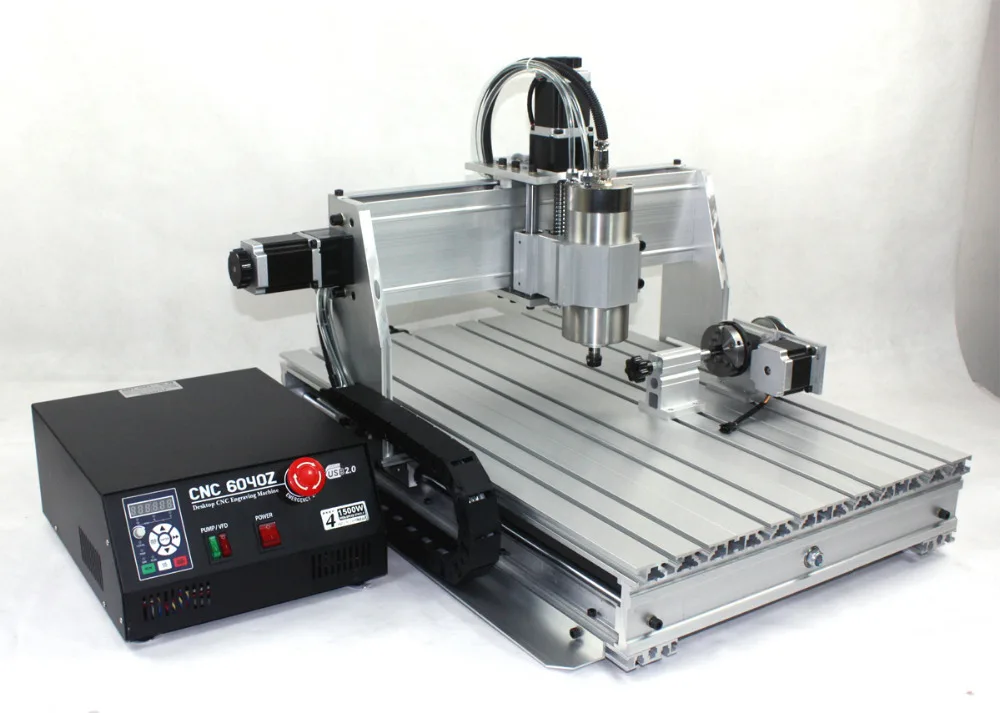

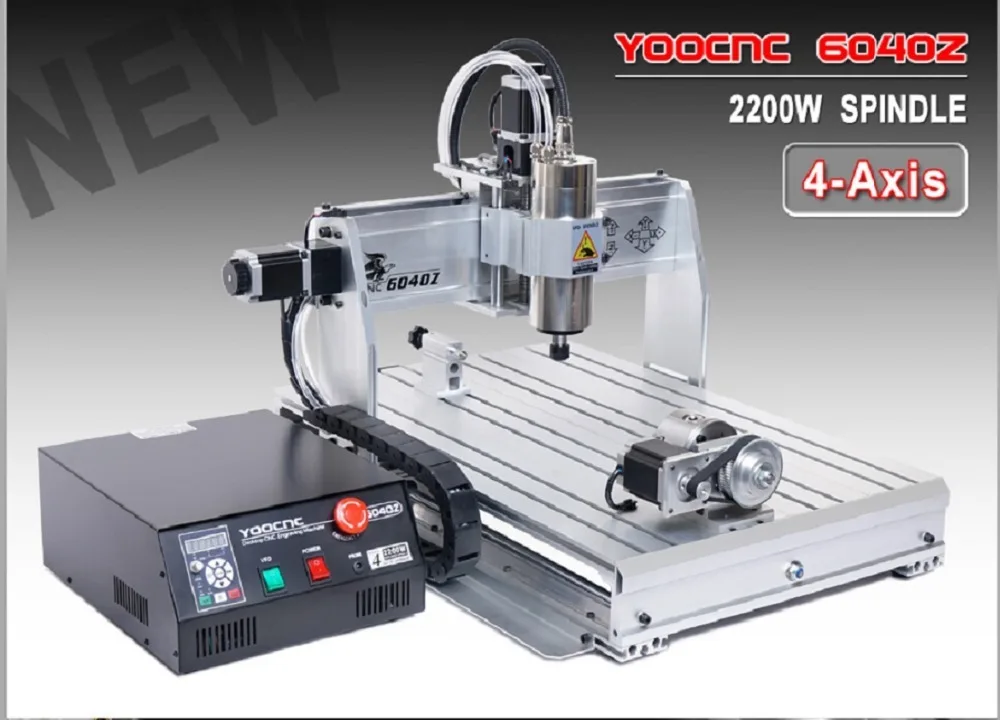

6040Z-2200W USB Mahc3 4-Axis CNC engraving machine:

Application

The 6040Z-2200W/USB CNC engraving machines make it fast and easy to engrave or scribe a wide variety of materials. Spindle speed can be varied between 3,000 and 24,000 rpm for engraving a wide variety of materials, including wood, urethane foam, plastic, acrylic, and light metals such as brass and aluminum.

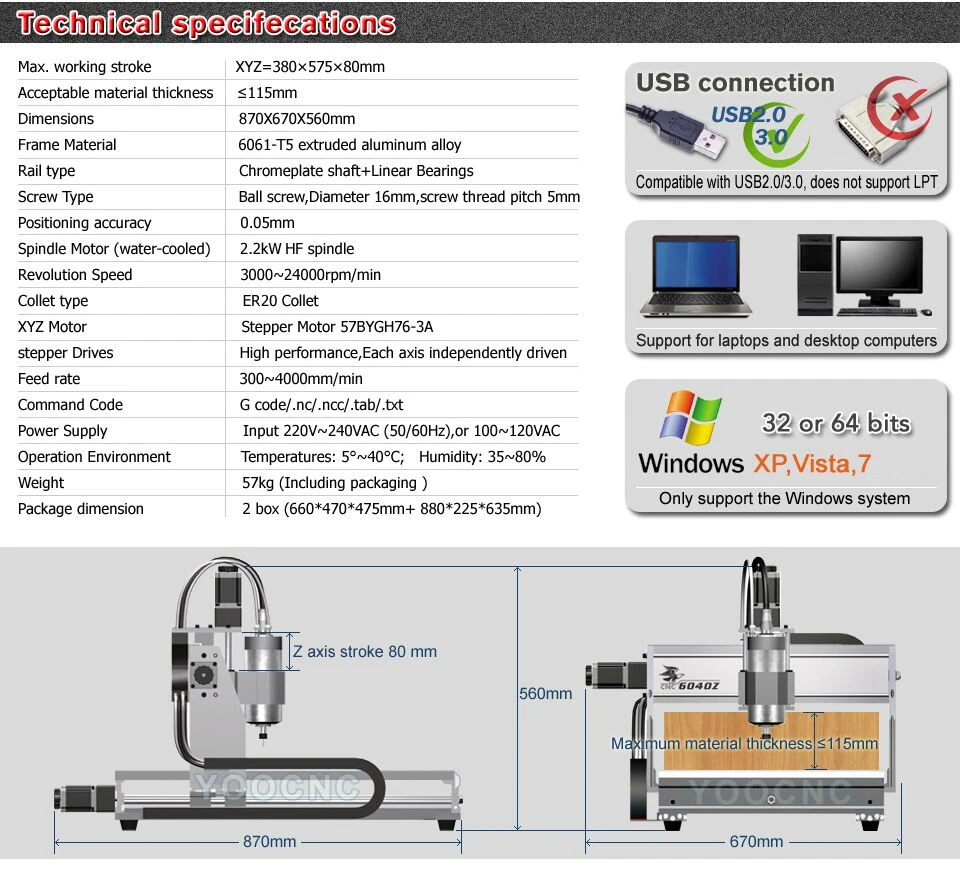

Specifications

Max. working stroke:XYZ=380×575×80mm

Acceptable material thickness:≤115mm

Dimensions:870X670X560mm

Frame Material:6061-T5 extruded aluminum alloy

Rail type:Chromeplate shaft+Linear Bearings

Screw Type:Ball screw,Diameter 16mm,screw thread pitch 5mm

Mechanical Resolution:X Y Z-axis : 0.0025 mm/step

Positioning accuracy:0.05mm

Spindle Motor:Powerful Brushless frequency spindle,2200W

Revolution Speed:3000~24000rpm/min

Collet type:ER20

X Y Z Motor:Stepper Motor 57BYGH76-3A

Stepper Drives:High performance,Each axis independently driven

Feed rate:300~5000mm/min

Communication Interface:USB2.0   (Please use Mach3 control)

Command Code:G code/.nc/.ncc/.tab/.txt

Power Supply:Input 220V~240VAC (50/60Hz),or 100~120VAC

Operation Environment:Temp: 5°~40° C;  Humidity: 35 to 80%

Weight:58kg (Including packaging )

CNC 6040 is suitble for Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.

How to use:

Please read the English user manual to see how to set up the software and how to use this machine.

1.Assembling and locating the CNC machine on steady desk well.

2.Make sure that your computer has a on-board parallel port output.

3.Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.

4.Connecting the control box with the CNC machine and you computer.

5.Fllowing our manual or guideline to set uo the software.

6.You can enjoy making you dream with using our CNC machine now.

6040 machine frame install step with motors:

if you complete installation steps,pls check some motor connecer has firm

Notice:

1) Click the “starter” in mach3 turn on the spindle and then click again will turn off,and click the speed button will change speed too.

2) Input the M3 in Mach3 spindle setting to turn on the spindle and input M5 will turn off,and input S15000 the spindle will work at 15000rpm speed.

Add M3 S18000 in the beginning of engraving file and M5 at the end,the spindle will work at 18000rpm speed and stop when finish work.
