AC85V~250V RF 4 CH Wide Voltage Multi-Function Wireless Remote Control Switch System

1, the working voltage range: 85 - 250 V, it can meet different customers need at home and abroad.

2, static low power consumption: 10 mA, Generally speaking ,RC Buck more than 40

3, the high-voltage isolation, and low-pressure part of the security
4, more durable than RC Buck

Description

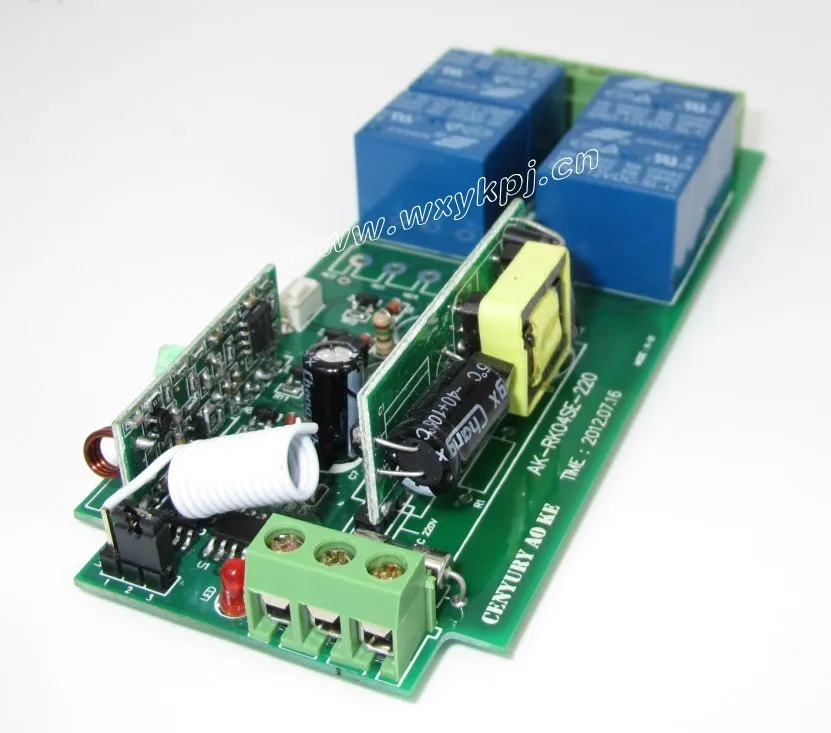

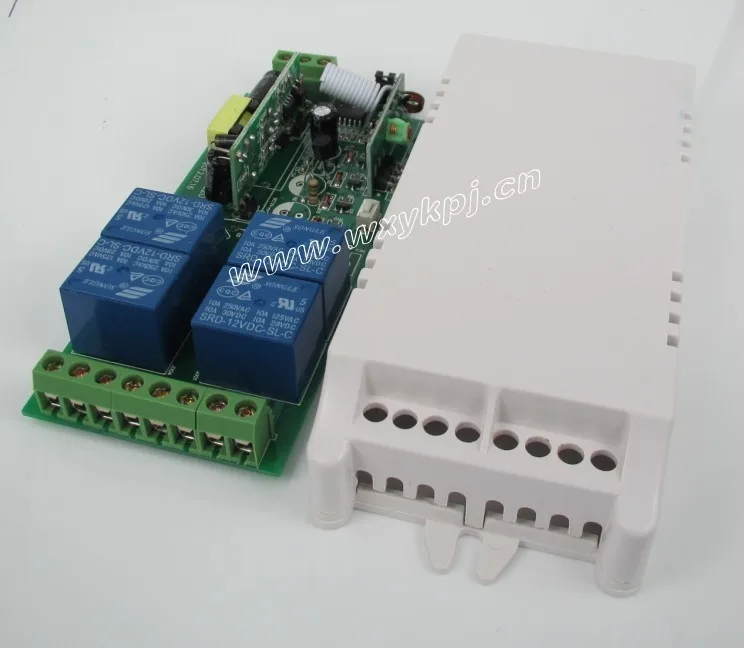

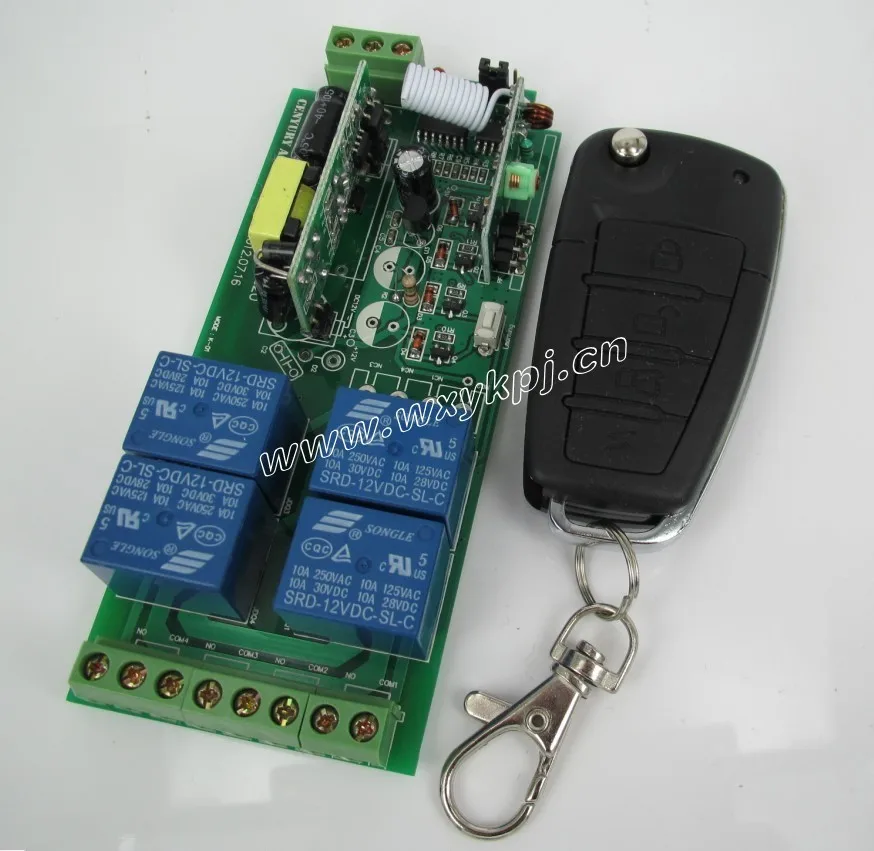

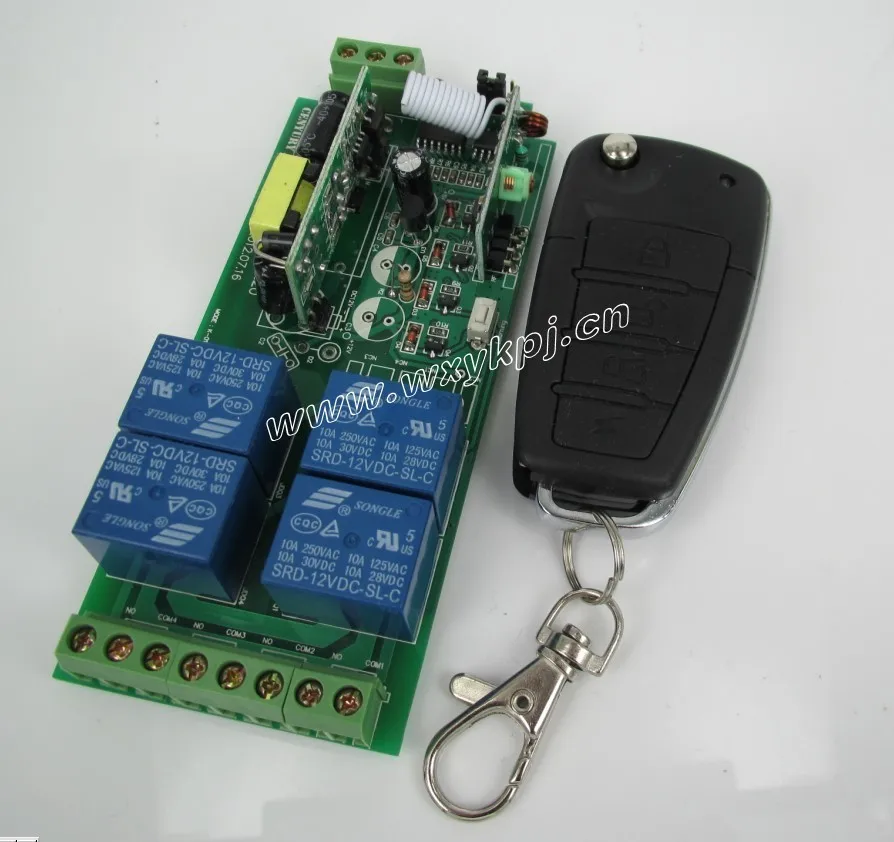

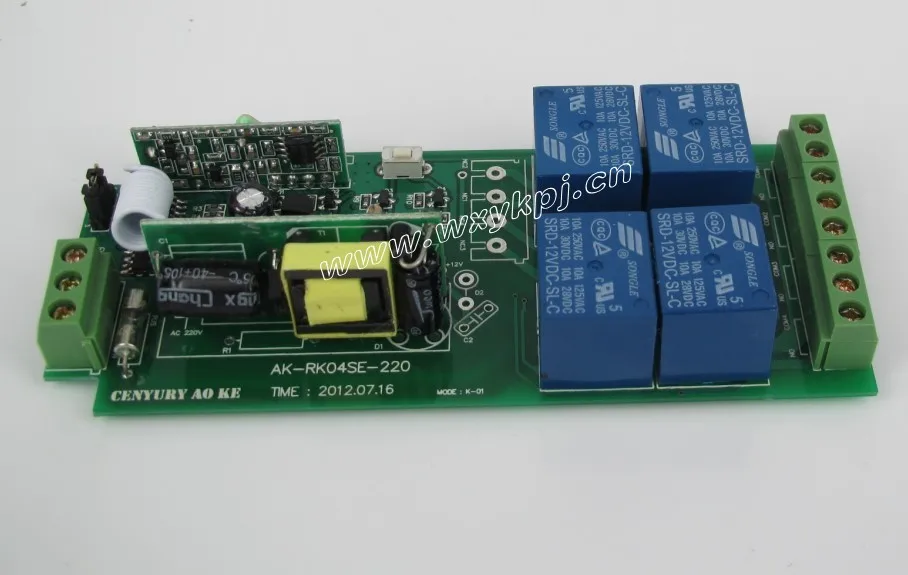

The Company design and manufacture the 4 CH wide voltage multi-function remote control switch with four 10A Relay, it Can load high power appliances,with Learning SCM decoding can learn kinds of remotes(2260,2262,1527,2240,1530 etc.),And oscillation resistance to adapt to wide range, It can make the customers not be in trouble when they use switch to match with different remote control ,and need to change corresponding parameters, you can change the output way by jumper cap , jog , self-lock and inter-lock,easy to use, for a variety of purposes in a number of areas,Switch internal reserve normally closed output port,Still can adapt to the special purpose of the customer, Output voltage, output switch signal with adjustable,it can meet different users needs ,Shell input and output separated, easily distinguishable, The exterior is delicate with fixed bracket, installation is simple and convenient,

Mainly used in lamps and lanterns, electric door, window, lifting equipment, motor control, water pump, gateway, hoist, industrial control and security industry, and other fields,

2, Technical parameters

Working voltage: AC 85-250 v

Work frequency: 315 MHz / 433 MHz

Standby current: 10 mA

Maximum load: 1000 W/r

Working way: Jog , self-lock and inter-lock

Circuit board size: 107 *48 * 21 mm

3, learning method

Hold learning key three seconds,it means it has been putting in the study when the indicator be off , then loosen the learning key, press any button of the remote control, the light will flash four times, it means studying successfully when the light keep lighting,

Note: the controller can learn fixed code/learning code etc 16 different code, and any key remote controls, if beyond, it will clear the first studying remote controller.

4, removed method

Continuously hold learning key about 8 seconds, the indicator

Will be off to on, it means it has been successfully removed

5 Output working way switching by jumper cap

1jog---the jumper cap is non-occupation, JP1 and JP2 do not connect either

2,self-lockconnect JP1 and JP2

3.inter-lockconnect JP2 and JP3
