AC85~250V 10A 4CH Wireless RF Remote Control System Transmitter and Receiver

Mainly used in lamps, electric doors, windows, lifting equipment, motor control, pumps, Gateway, projection screen lifter, industrial control and security industry and other fields

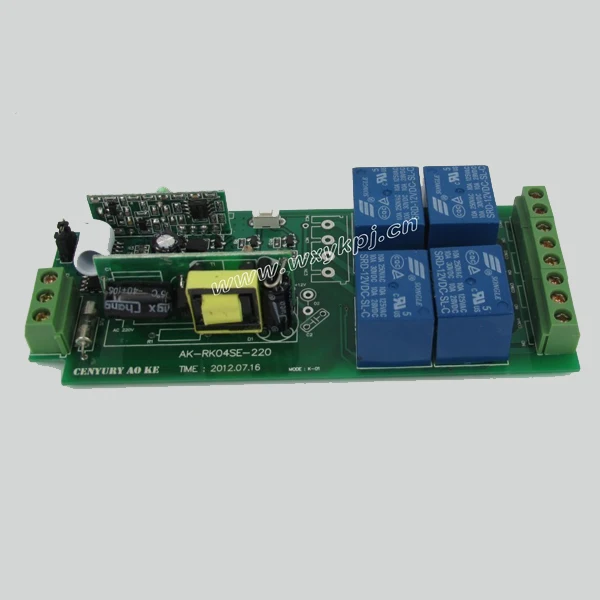

Wireless receiver

Operating voltage: 85~250V
Operating Frequency: 315MHz/433 MHz
Standby current: 10mA
Maximum load: 1000 watts
Work: Self-locking, jog, interlock
Size: 91mm × 52mm × 11mm
Shell Size: 93mm (with cover length is 111mm) × 54mm × 40mm

working way

Self -lock----- press one button for one time is ON .press the same button again is OFF .need one channel switch and one buttons remote control

Inter-lock-------press one button is ON , press another button is OFF . (need one channel switch and 2 buttons remote control

4 Jog---- press one button is ON . loosen your finger on the same button is OFF .need one channel switch and one buttons remote control )

notice:

switching working way
Need to disconnect the power, cutting-out cap plugged in the appropriate position and clear code and then re-learn.

Please notice that .here is the 4CH receiver and 4 buttons transmitter, you can choose the the output way is self-lock , jog,or inter-lock

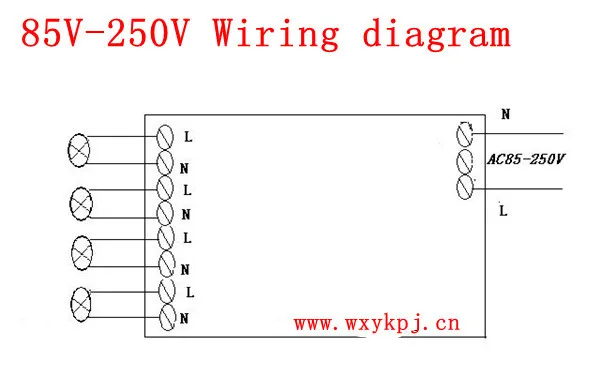

II.Output

A.singnal inter-locking ----connect 2 and 3

B.singnal non-locking---- disconnect 1 2 and 3

C.singnal self-locking---- connect 1 and 2

III .Iearning method and steps

1.press the learn key on receiver board - lights that enter the learning state,

2.at the same time, press any key on remote control-lights flash to off that have success in learning .

IV. Clear the deposit information

keep pressing learn key about8~ 10s to the LED off ,then the led keep lighting that deposited information has been successfully cleared .

How to use:

Step 1: Determine the required working way, then the cutting-out cap plugged in the corresponding position;

Step two: clear code;

The third step: to learn the remote control button

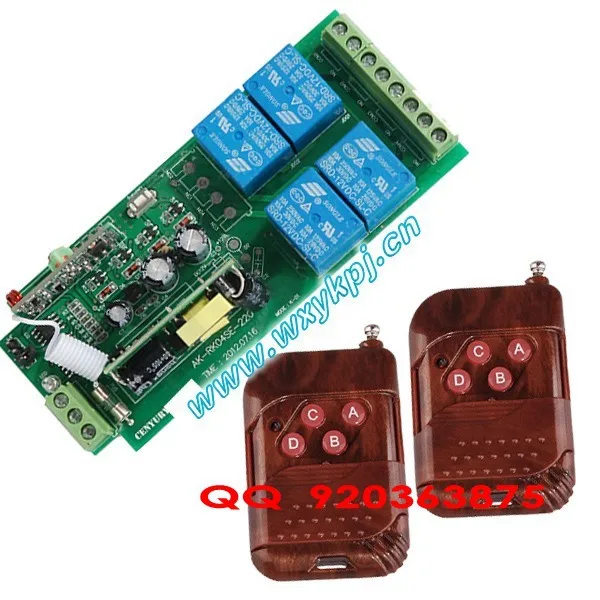

Pakaging

1x receiver

2xtransmitter
