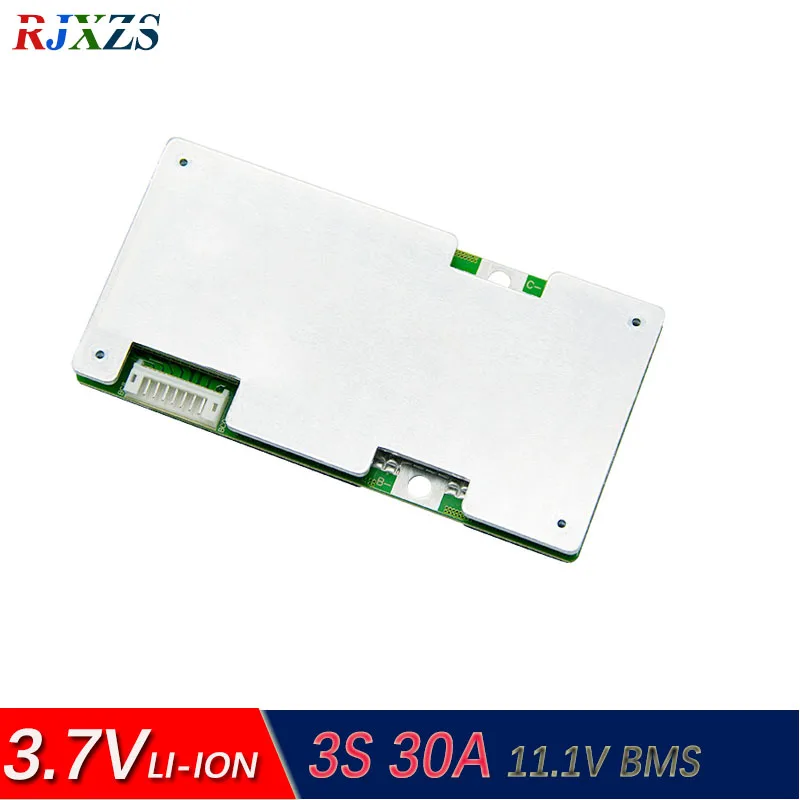

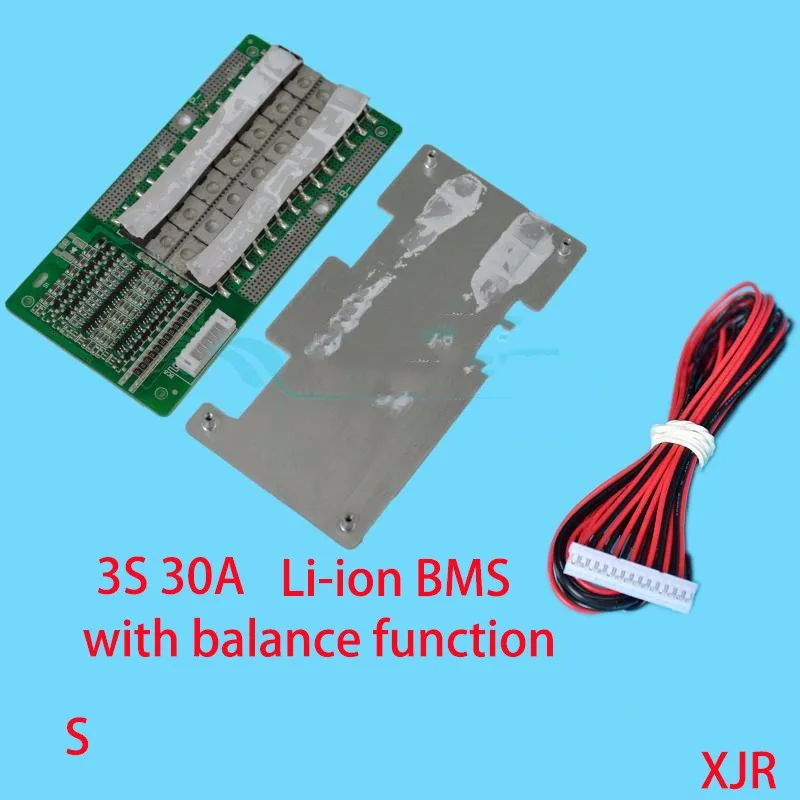

3S 30A  lipo lithium Polymer BMS/PCM/PCB battery protection circuit board for 3 Packs 18650 Li-ion Battery Cell  with Balance with temperature switch

Note: this BMS with balance function. your battery need match, battery should have good consistency, if not sure, please use new brand battery.

this is version S, charge and discharge use the same port,

Features:

Wiring sequence: First solder line B- to battery negative, connect balance cable to battery(B1 B2 ... B3), insert the cable(socket), After check, then connect C- line,  then look at the amount of the total voltage of the battery, if the voltage between P- and B+ equal the total voltage, it’s should be work properly.

Applications:

3S Li-ion18650,LiCoO2,LiMn2O4,Li(NiCoMn)O2 rechargeable batteries

3S Lipo rechargeable batteries

Notice:

1. Please pay attention to the use condition of input and output voltage and load current , make the protective plate within the power consumption of no more than specification allows power consumption;
