Mstar 3Mp 25fps Ipc Module H.265 Smartsens SC3335 Ip Monitor Camera Outdoor 2304*1296 25Fps Danale Rtsp Security Protection on - Mstar 3Мп 25 кадров в секунду Ipc Модуль H.265 Smartsens SC3335 Ip Монитор Камера На Улице 2304*1296 25 Кадров в Секунду Danal

Mstar 3Mp 25fps Ipc Module H.265 Smartsens SC3335 Ip Monitor Camera Outdoor 2304*1296 25Fps Danale Rtsp Security Protection on - 3Мп 25 кадров в секунду Модуль Монитор Камера На Улице Кадров Секунду Danal

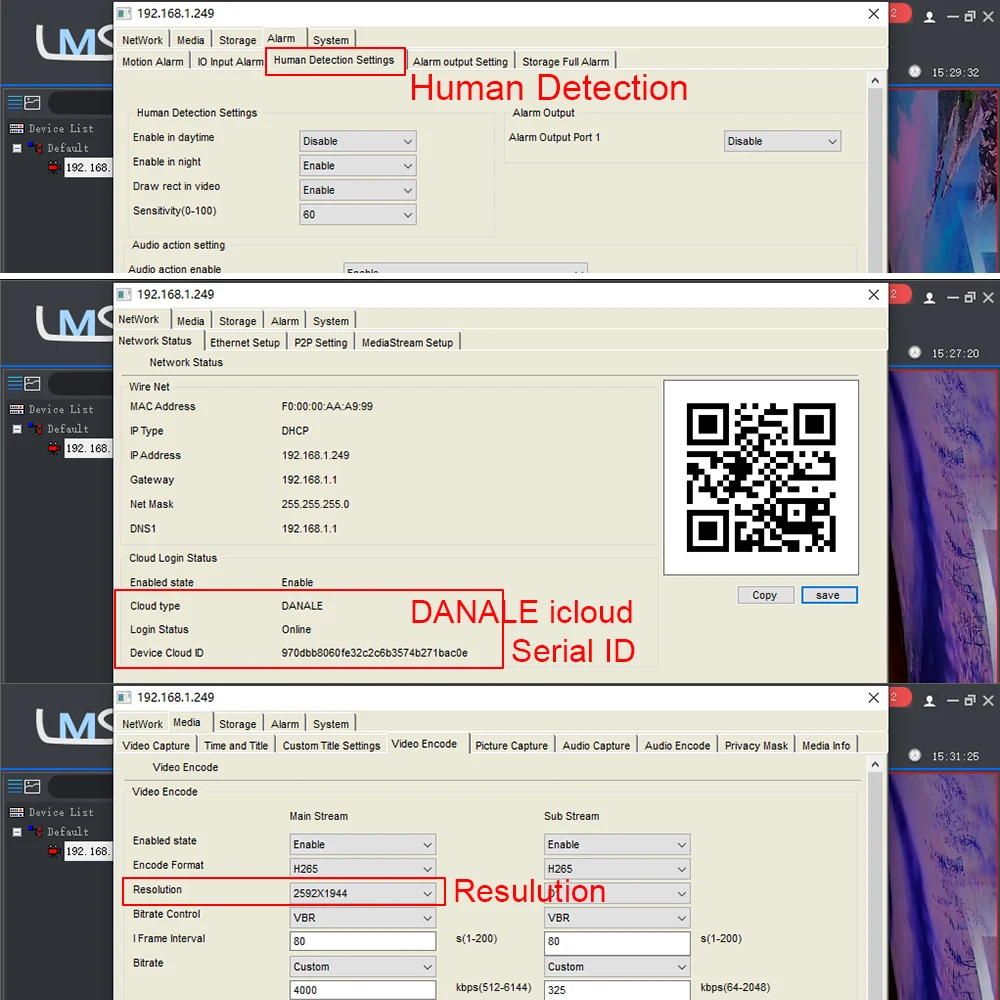

You can createmultiple motion detection settings for camera, including Human Body Detection,Line Crossing Detection, Intrusion Detection and Specific Region Detection.(This Human Should Work on Danale NVR then will have Human Line)

H.265

H.265 More Clear , Hd Resolution Offer You Best Image Quality In a Lower Bit Rate.
Save More Storage Space,Can Reduce 50% File Size

Remote Access Anytime, Anywhere

No matter where you are, you can Through mobile APP remotely access the camera to seePackage information:

If you choose"No Lens", the package not include IR-CUT

if you choose "2.8mm,3.6mm,6mm,8mm" the package is include a free IR-CUT

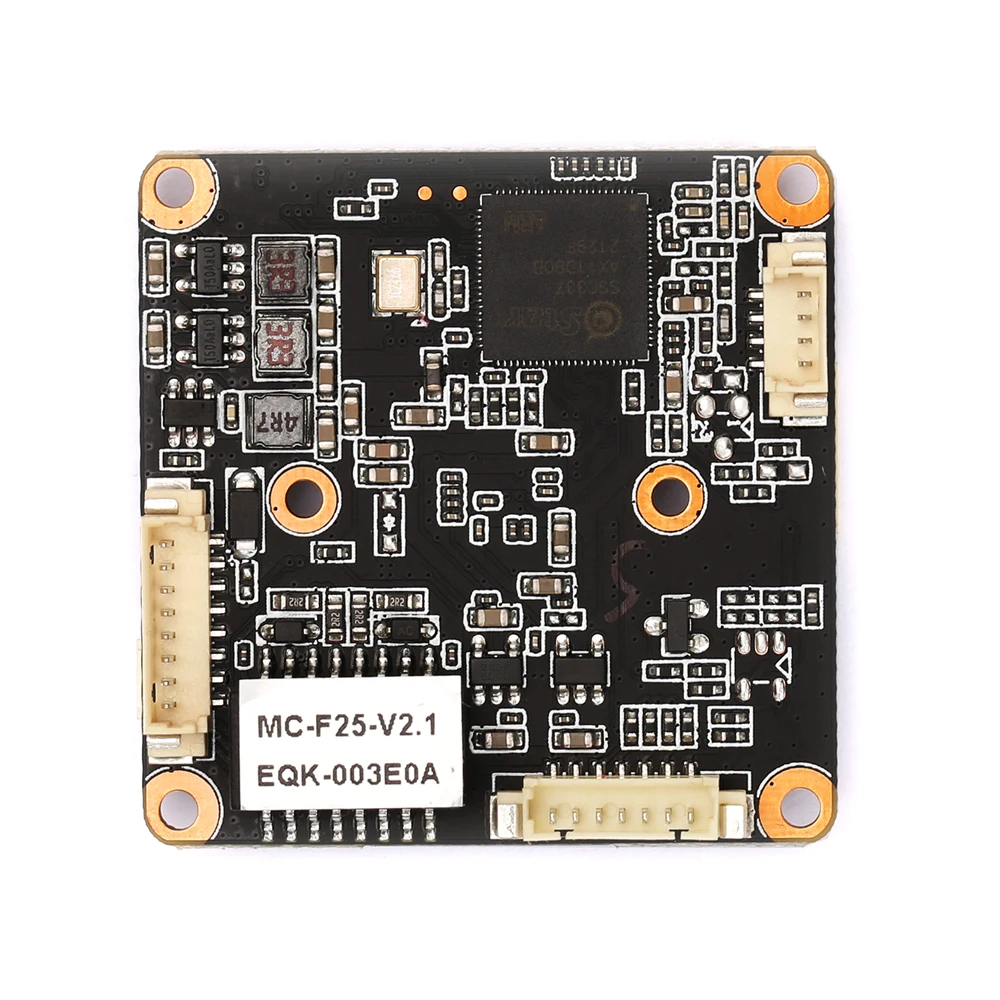

Model

MC-F25

System structure

Embedded RTOS,dual-core 32bit DSP(Mstar SSC335),pure hard compression ,watch dog

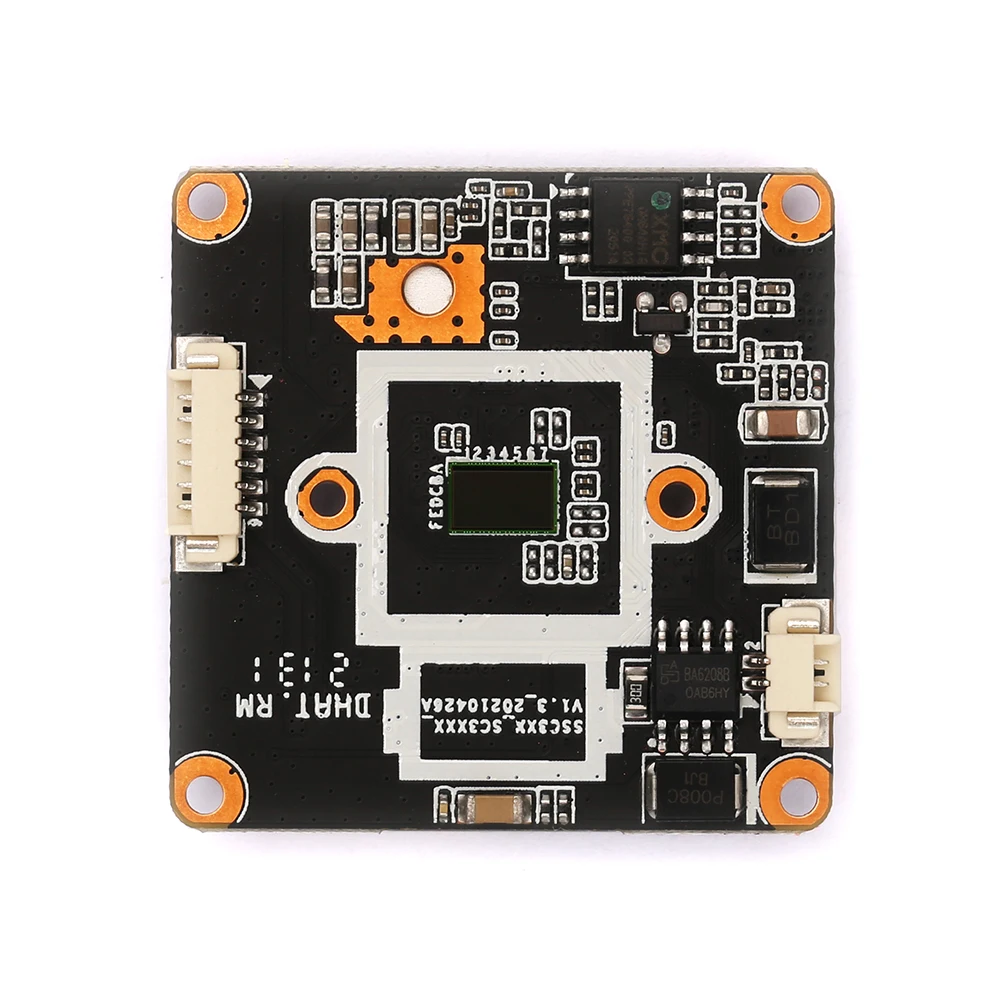

Sensor

3.0M 1/2.7" SC3335 Black light illumination CMOS sensor, color 0.01Lux

Video compression

Optional P/N video system

support automatic white balance

support 3D noise reduction

support HDR,support anti-face overexposure

H.264/H.265/H.265+ different encoding formats

To achieve ultra-low storage,adjustable bit rate/frame rate

Image output

Main stream:

2304x1296@25FPS,1080P/720P@30FPS,

Sub stream:

D1/VGA/640*360/640*480/CIF@30fps

Shutter

1/50(1/60) s to 1/10,000s

Lens

1.7,2.8,3.6,6,8(Optional)

Day and night

Integrated IRCUT Switching circuit, automatic / external / manual / timing to control IRCUT day and night mode

Noise reduction

Support 2D/3D

Wide dynamic

Support digital

Audio interface

Audio linear input and output, G711U/G711A encode,

support two-way voice intercom (Should contact the audio board)

Network interface

Supports network protocols such as HTTP/RTSP/DHCP/NTP/ONVIF/P2P,

(optional GB28181, RTMP and multiple NVR docking protocols)

Singal interface

One photo resistance interface, one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR

Reliability

Comprehensive lightning protection,

7 * 24 hours -30℃～85℃high temperature stable and reliable testing

Intelligence analysis

Supporting Humanoid detectionn, and supports customization of other smart functions etc.(human detection should work on danale NVR and softs)

ONF

Support

Mobile monitoring

"Danale APP"

Support multiple mobile monitoring(iOS,Android)

Power

DC12V/2A input, power consumption: ≤3W(Not include adapter)

SDK

Provide SDK (WINDOWS, Android, Linux)

Dimension

38mm*38mm

LED

Support Infrared LED, Warm LED, Dual LED

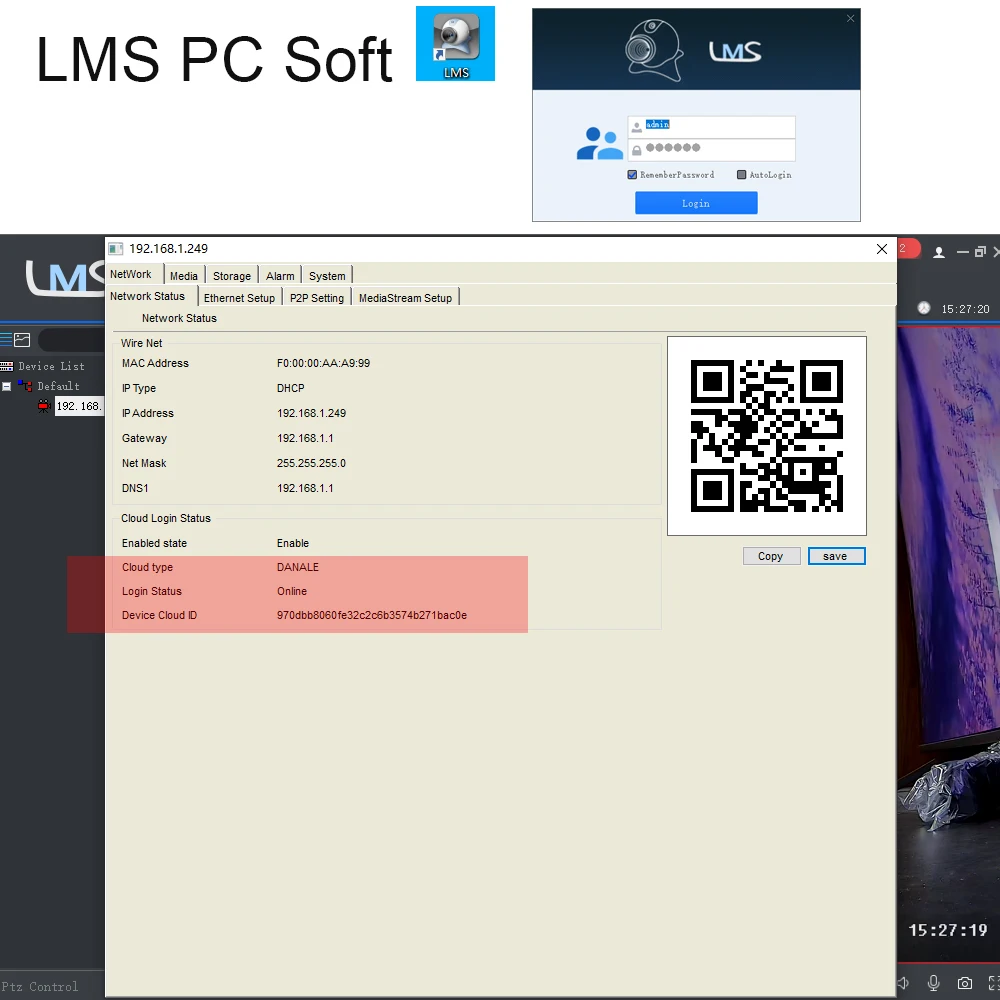

PC Soft LMS steps:

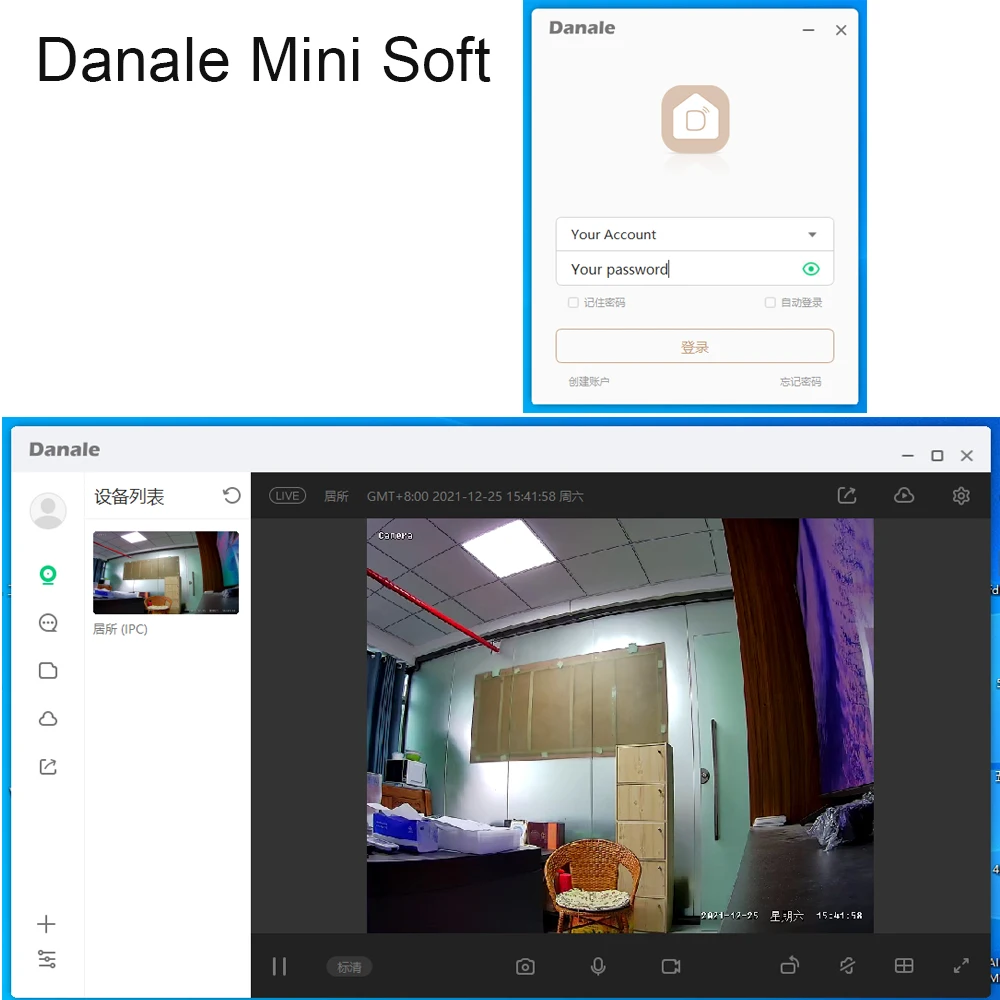

PC Mini "Danale" Soft

This mini client shares information with the mobile APP client
