First, technical performance indicators

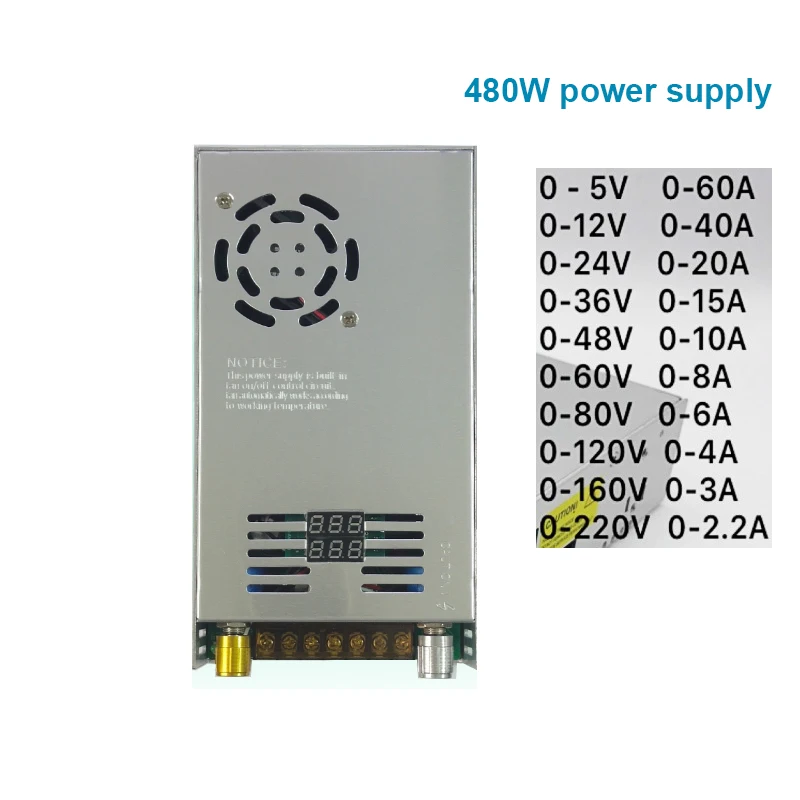

1. Output voltage range: 0-- 5V continuously adjustable output current: 60A
Output voltage range: 0-12V continuously adjustable output current: 40A
Output voltage range: 0-24V continuously adjustable output current: 20A
Output voltage range: 0-36V continuously adjustable output current: 15A
Output voltage range: 0-48V continuously adjustable output current: 10A
Output voltage range: 0-60V continuously adjustable output current: 8A
Output voltage range: 0-80V continuously adjustable output current: 6A
Output voltage range: 0-120V continuously adjustable output current: 4A
Output voltage range: 0-220V continuously adjustable output current: 2.2A

2, Ripple voltage; no more than 100mV

3, The equivalent internal resistance of the regulator: not more than 0.O5Ω

4, Voltage adjustment rate:

5, with short circuit, overload protection, automatic recovery function

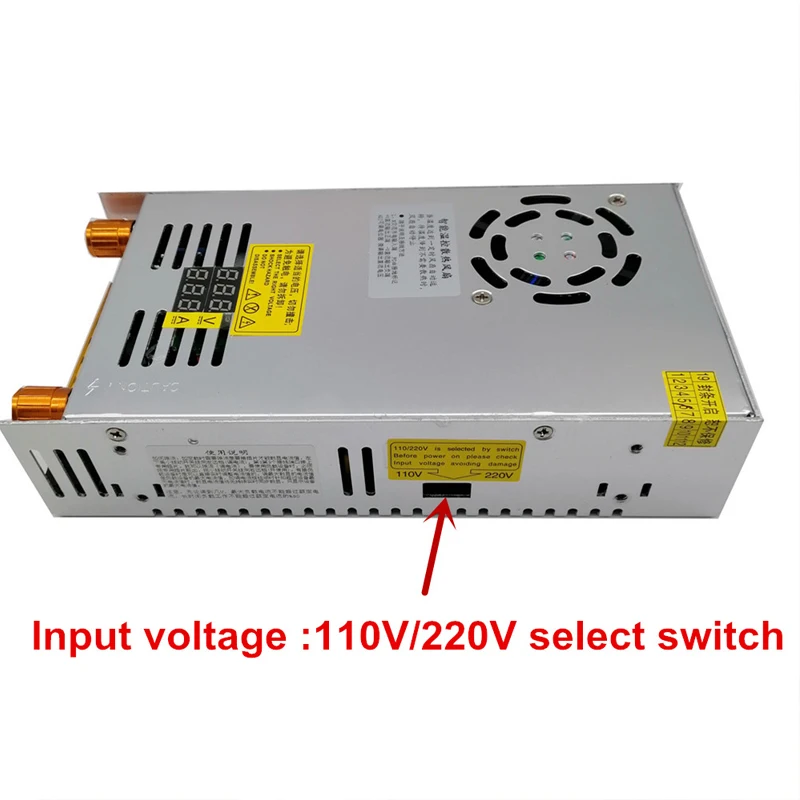

Input voltage: AC110V/220V±15%

Rated power: 480W

Product size: 21.5CM (length) * 11.5CM (width) * 5CM (height),



The Output current depends on the load ,can't more than the max output current

Instructions for use:
Uses: Mainly used in various DC equipment, DC motor stepless speed
regulation, LED stepless dimming, chemical electroplating speed
regulation, scientific research test, student experiment, etc., and a
wide range of uses.

Special attention: If using inductive load such as motor or fan, please
pay attention to the motor starting current parameter. This parameter
must not be higher than the power supply current. Otherwise, the power
supply may be damaged. You should select a higher current power supply
or provide soft start protection for the motor. The circuit absorbs the
inrush current.
