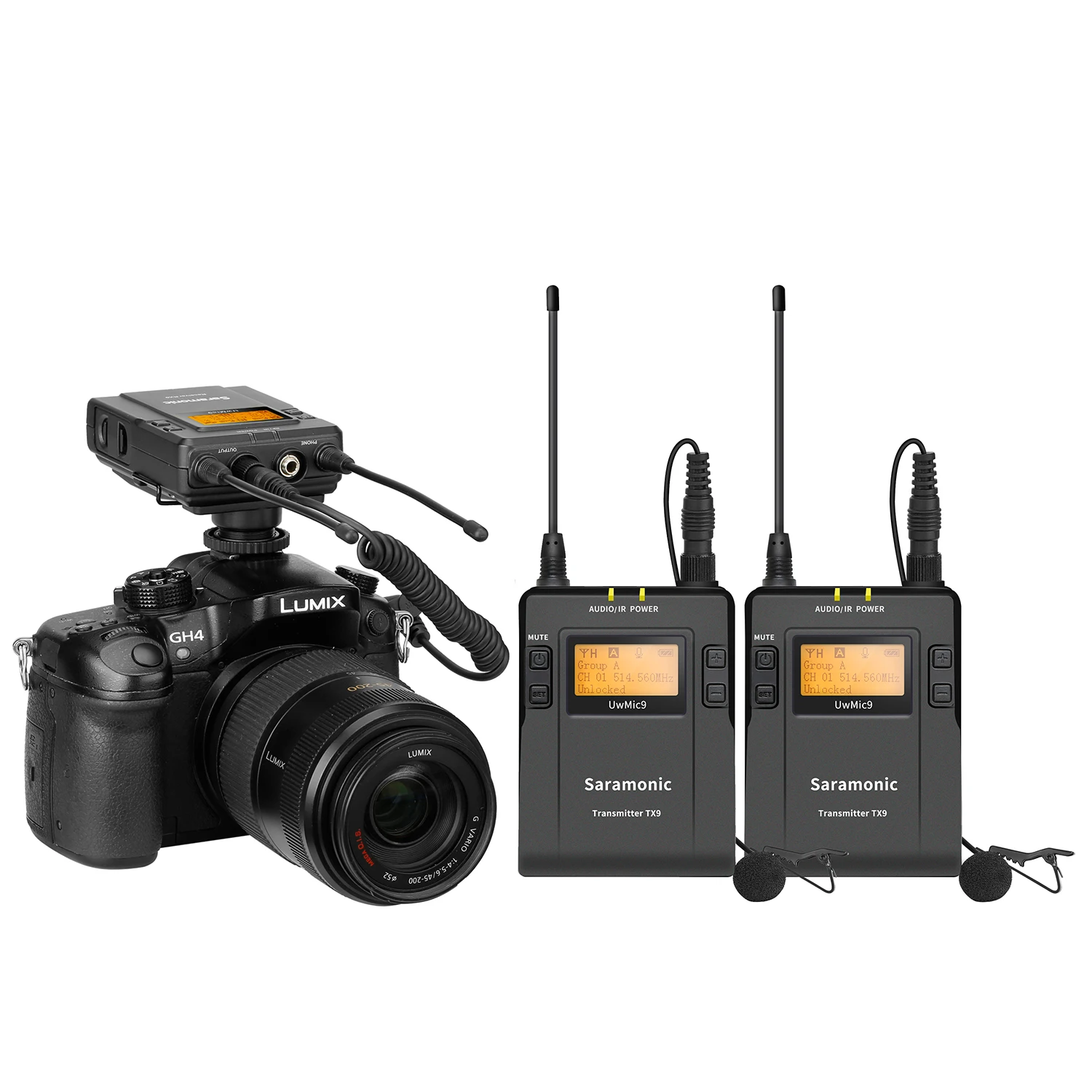

Saramonic UwMic9 UHF Video Broadcast Interview Lavalier Wireless Microphone System for DSLR Camera Camcorder Vlog Interview

General Introduction

The Saramonic UwMic9 UHF wireless microphone system is intended for portable wireless operation and can be used in several environments for applications such as DSLR video , field recording, broadcast TV, electronic news gathering ( ENG ), on-the-spot interviews and more.

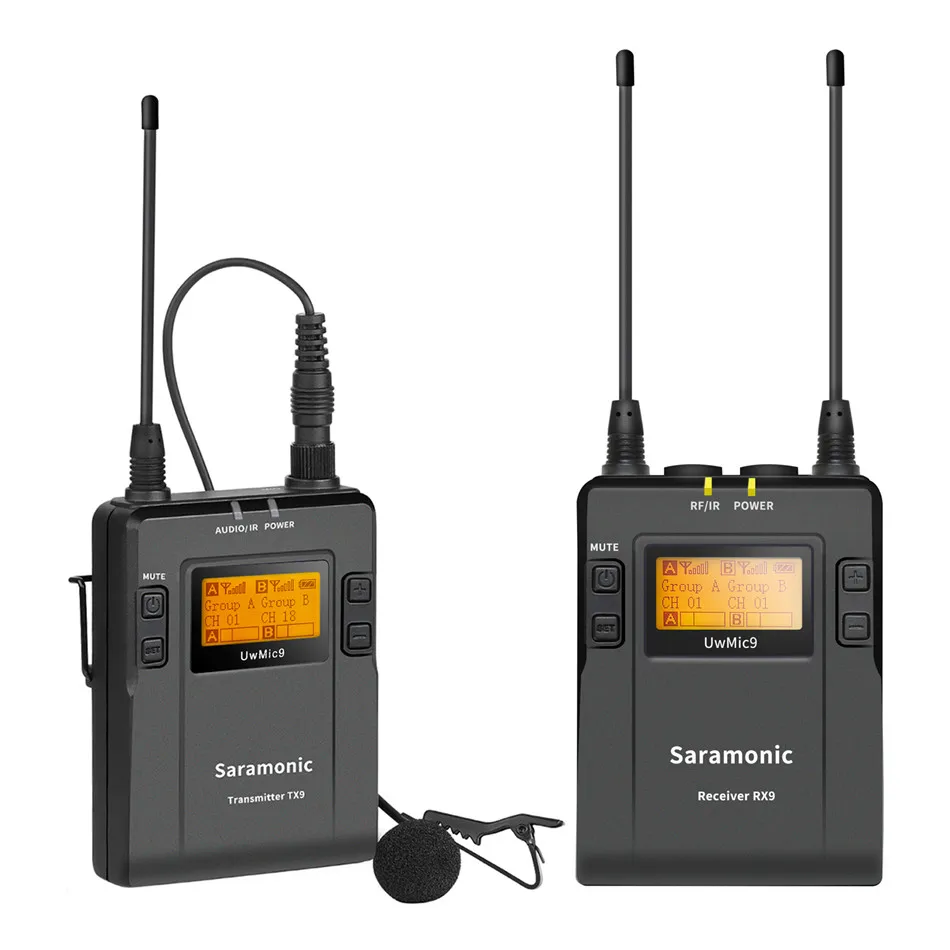

Portable Receiver UwMic9-RX9 (*1)

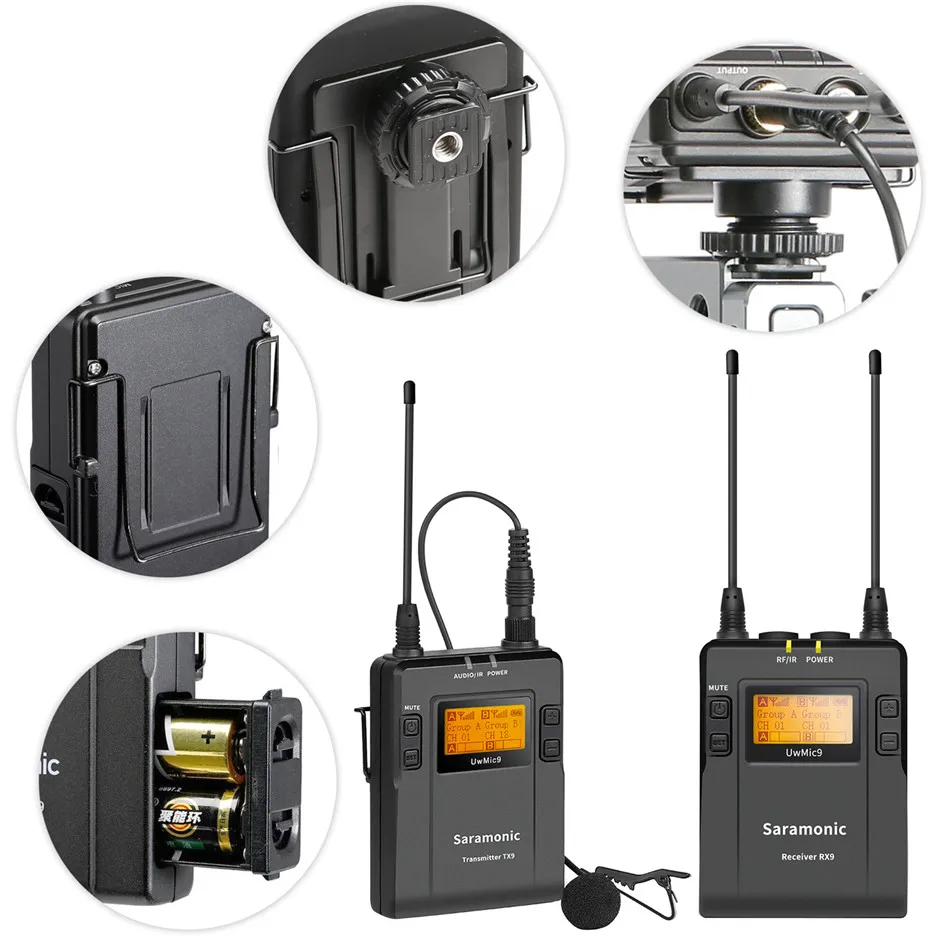

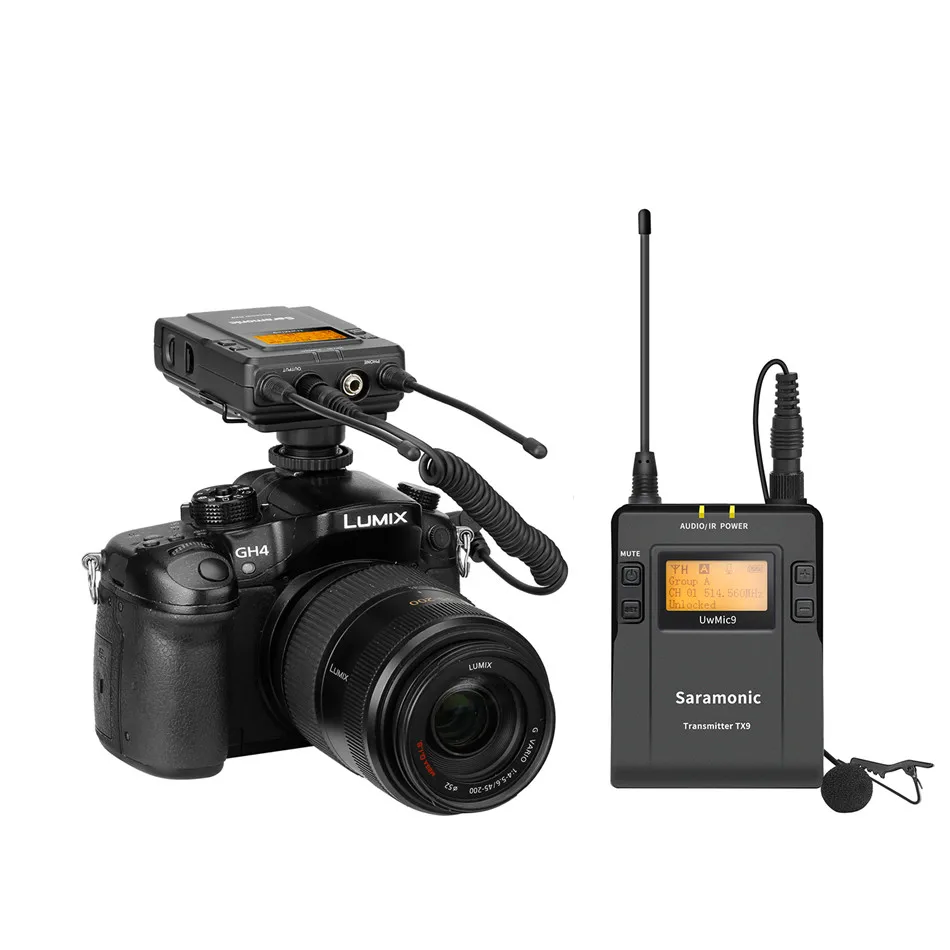

The Saramonic UwMic9-RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, and easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency.
The selectable output mode allows you to choose the output signal to be mono or stereo.

Body-pack transmitter UwMic9-TX9 (*2 )
This transmitter is a compact transmitter that employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a locking-type microphone input connector. The RF power output can be switched among high, middle and low.

Highlights

⭐Reliable, broadcast-quality audio
⭐Dual channel receiver works with two transmitters simultaneously
⭐96 selectable channels in 2 groups

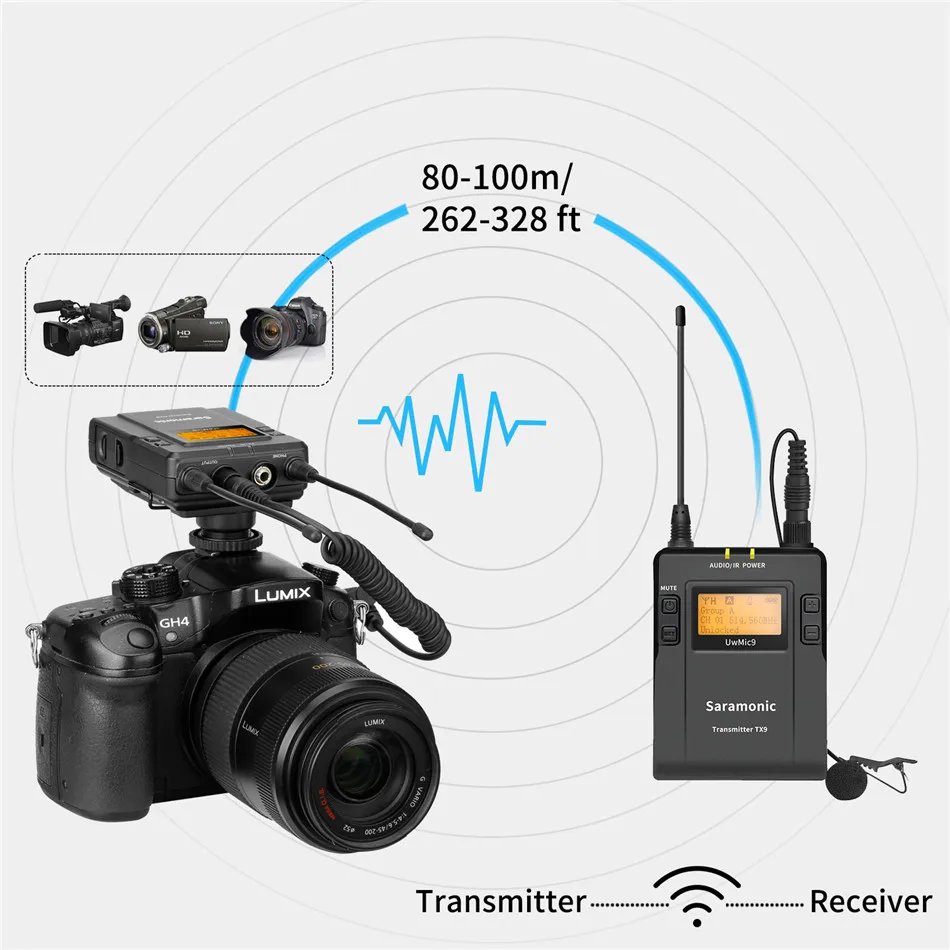

⭐Operating range: over 330 feet (100m) in open areas or 200 feet (60m) with obstacles
⭐Easy-to-read LCD displays

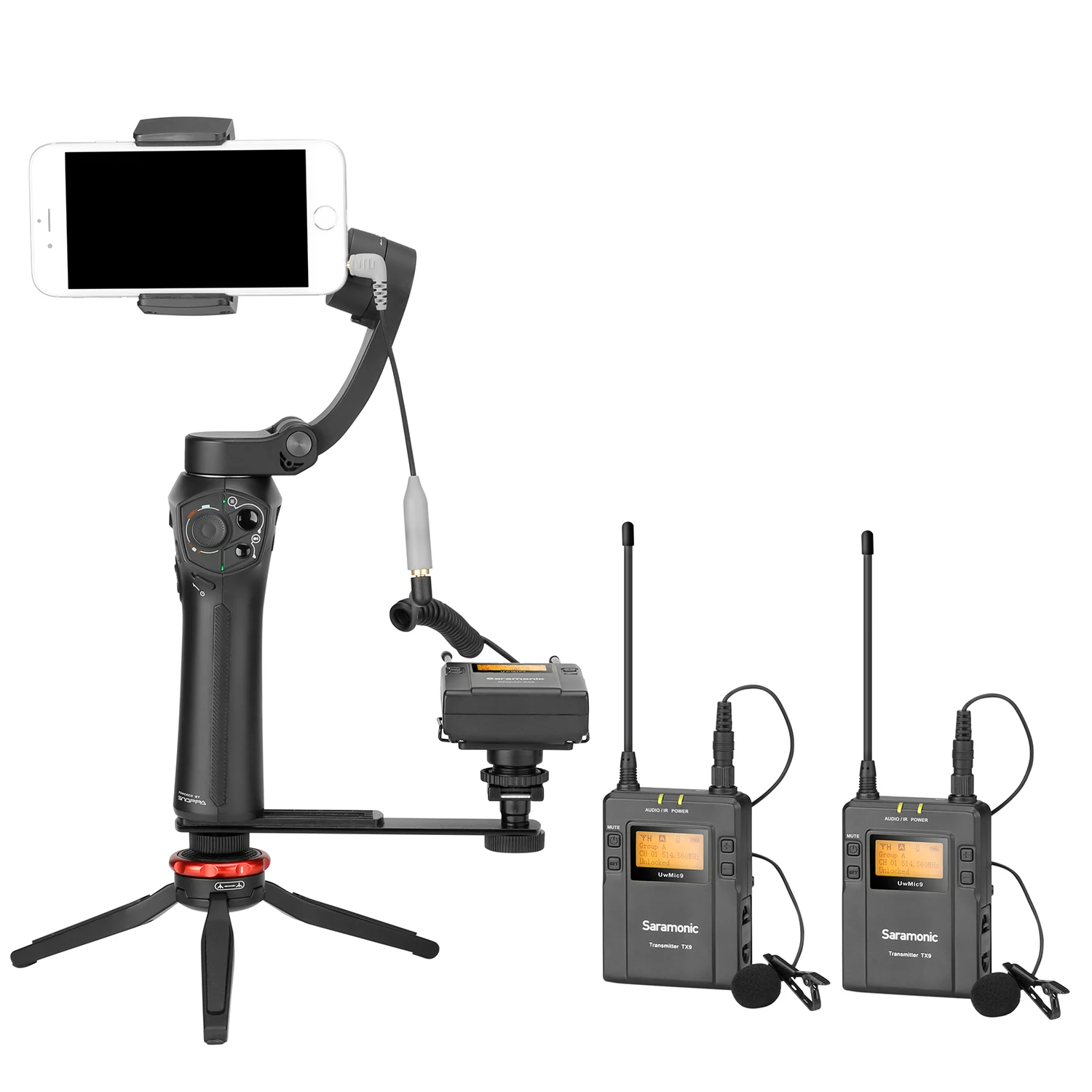

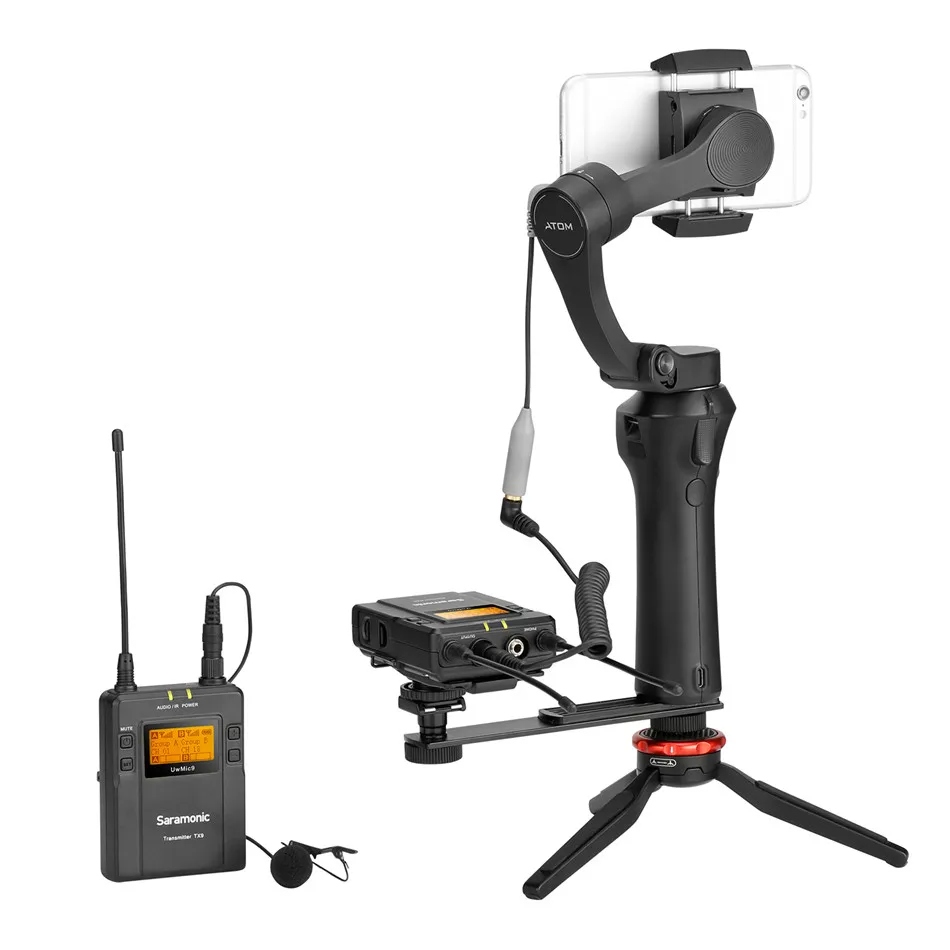

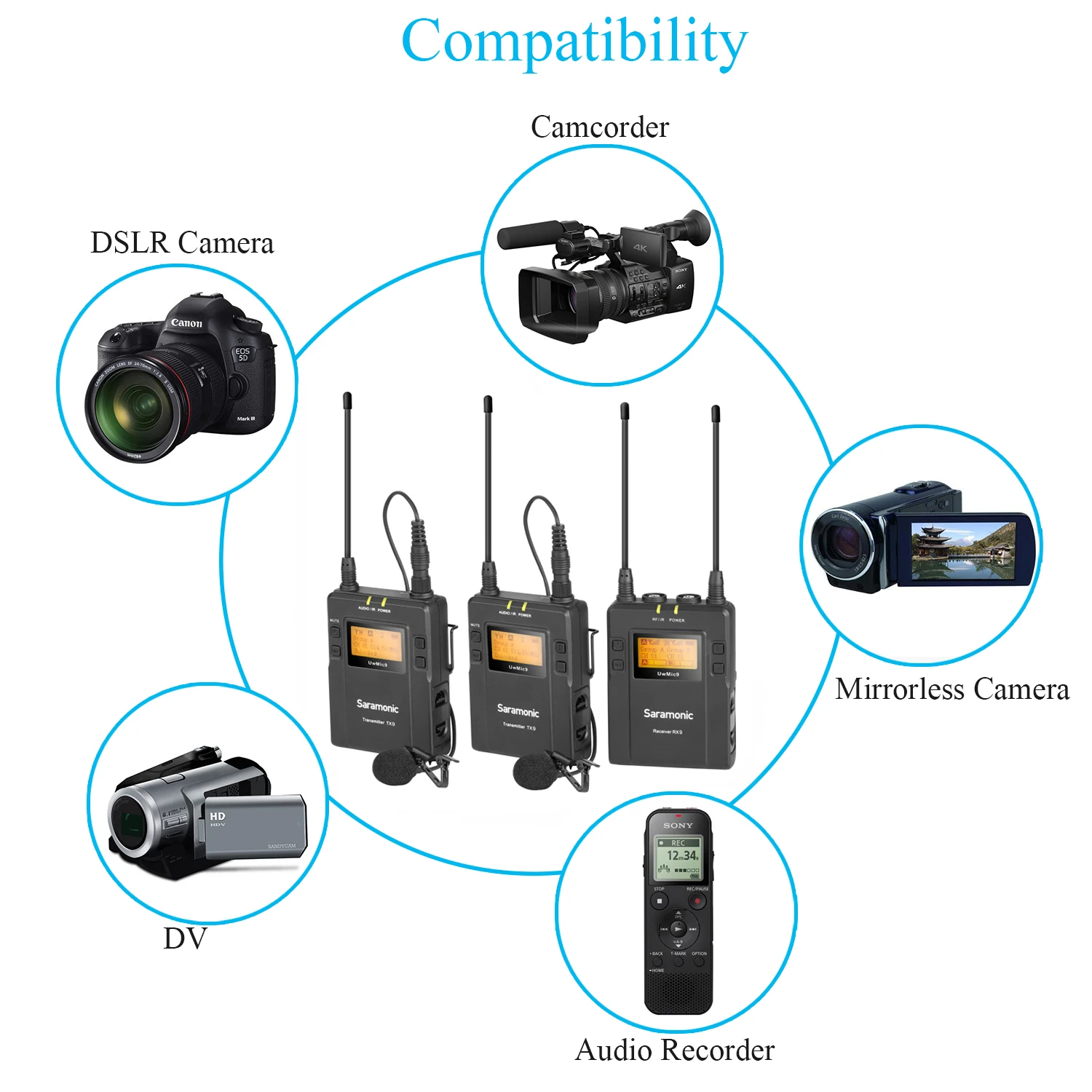

⭐Could work with DSLR or mirrorless cameras, camcorders, smartphones, GoPro cameras and computers via different cables

Specification

UwMic9-RX9
Channels: 96
Groups: A and B
Oscillator type: PLL synthesizer
Output: 3.5mm mini jack
Antenna: 1/4 wire antenna
Audio output level: -60 dBV
Headphone output level: 30mW (16 ohm)
Frequency Range: 514 MHz - 596 MHz
Sensitivity: -95 dBm
Signal to noise ratio: 70 dB or more
Voice delay: 12 ms
Reference deviation: +/- 5 kHz
Frequency response: 40 Hz to 18 kHz (+/- 3dB)
Distortion: 0.5% or less
Spur suppression: -60 dB
Weight: 218.7g (w/out batteries)
Battery: 2 AA size batteries
Dimensions: 170.9 x 63.5 x 30.0 mm
Operating temperatures: 0℃ to 50℃
Storage temperatures: -20℃ to ＋55℃

UwMic9-TX9
Channels: 96
Groups: A and B
Oscillator type: PLL synthesizer
Carriers frequencies: 514MHz-596MHz
Reference deviation: +/- 5 kHz
Signal to noise ratio: 70 dB or more
Spur supression: -60 dB
Voice delay: 12ms
Antenna: 1/4λ wire antenna
Audio input connector: TX9: 3.5mm mini jack
Reference audio input level: -60 dBV (MIC input, 0 dB attenuation)
Distortion: 0.5% or less
Battery: Two AA size batteries
Operating temperatures: 0℃ to 50℃
Storage temperatures: -20℃ to ＋55℃

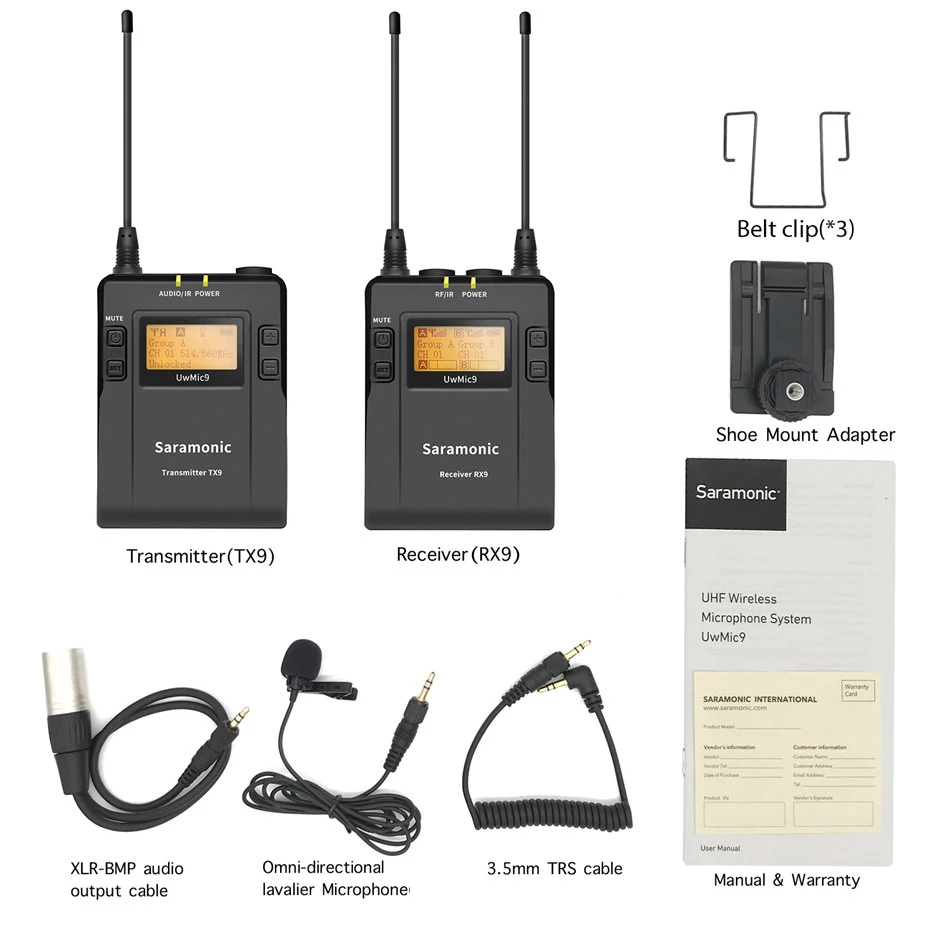

Package list

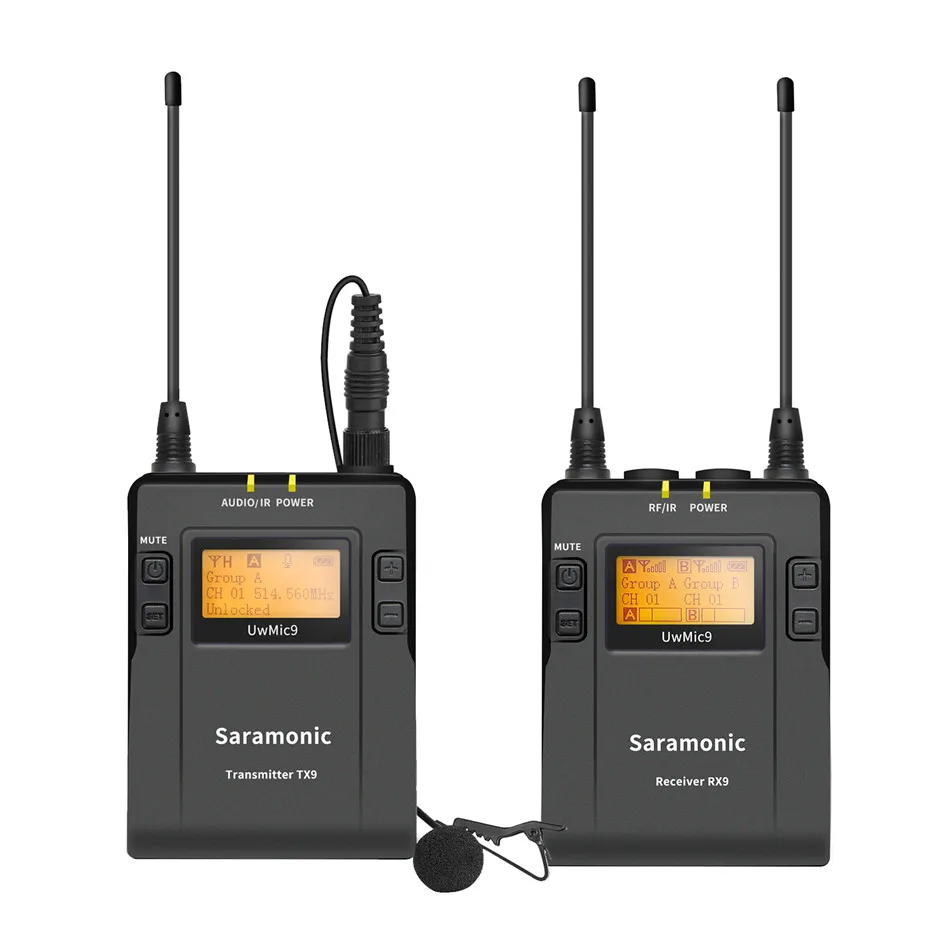

UwMic9 Kit 1
1 * Portable receiver: RX9
1 * Body-pack transmitter: TX9
1 * Omni-directional lavalier microphone
1 * 3.5mm locking-type plug audio cable
2 * Belt clip
1 * Wind screen
1 * XLR to 3.5mm locking-type plug audio cable
1 * Shoe mount adapter
1 * Microphone holder clip

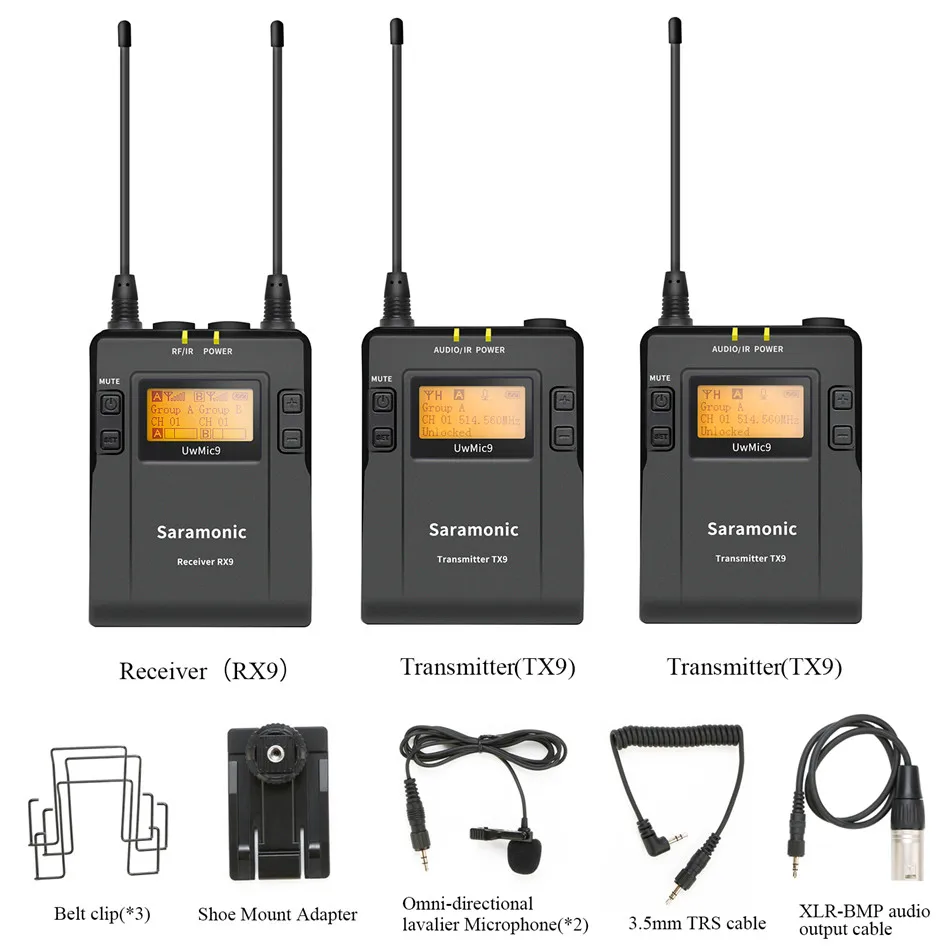

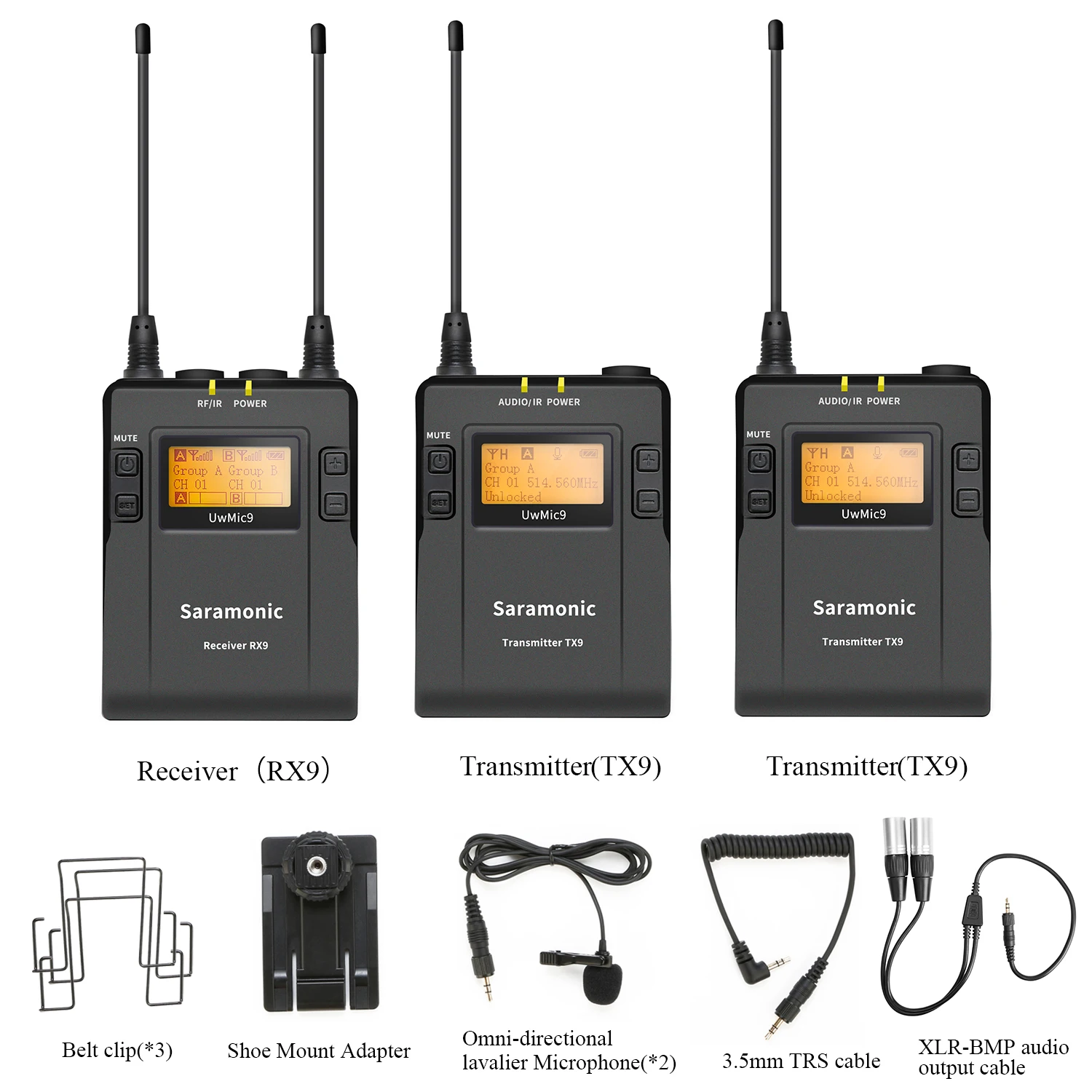

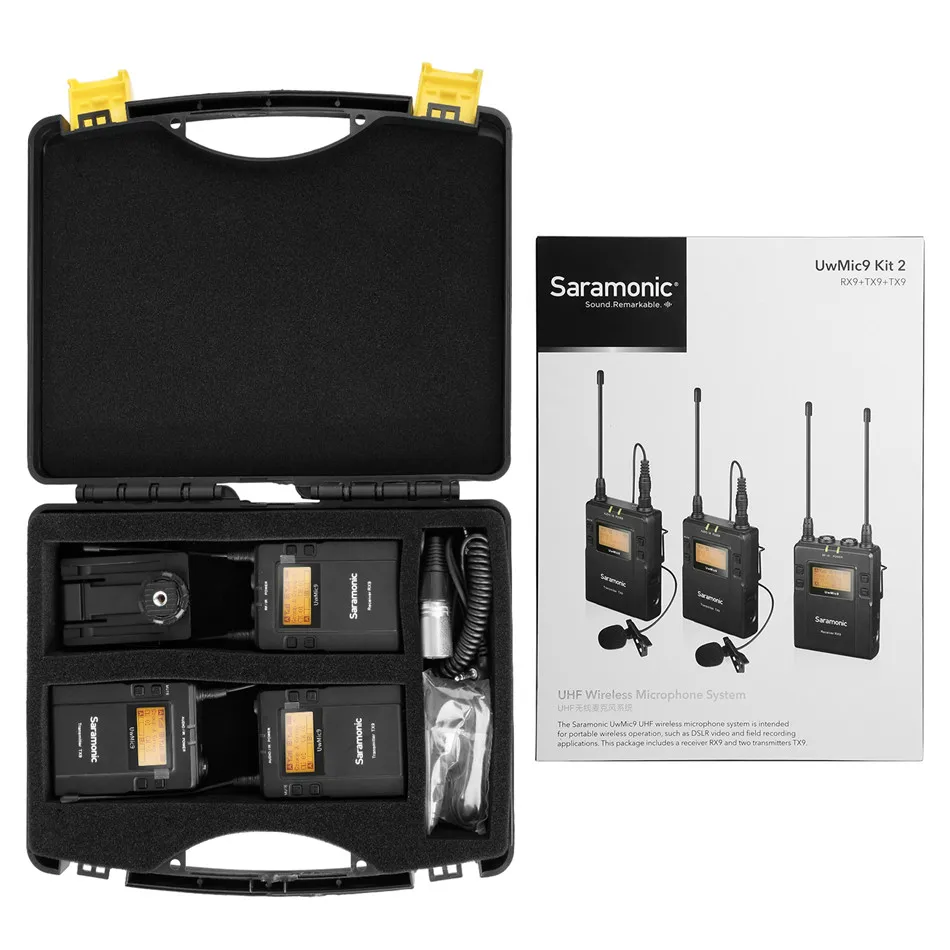

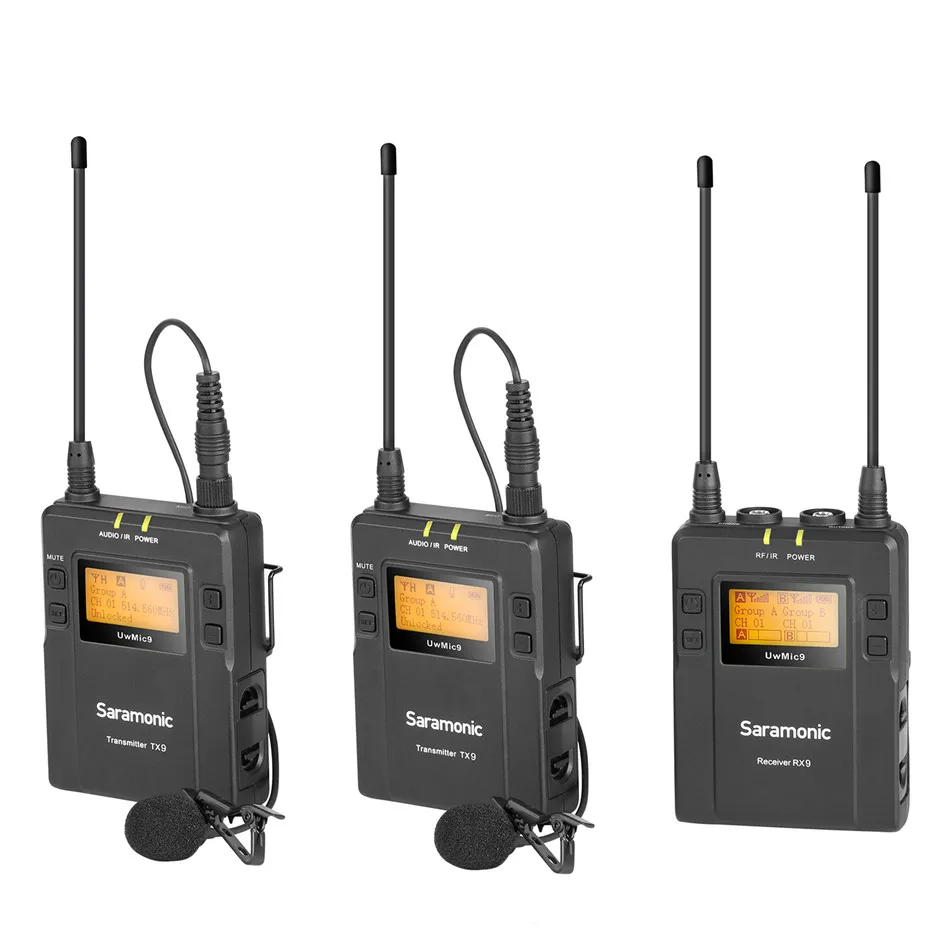

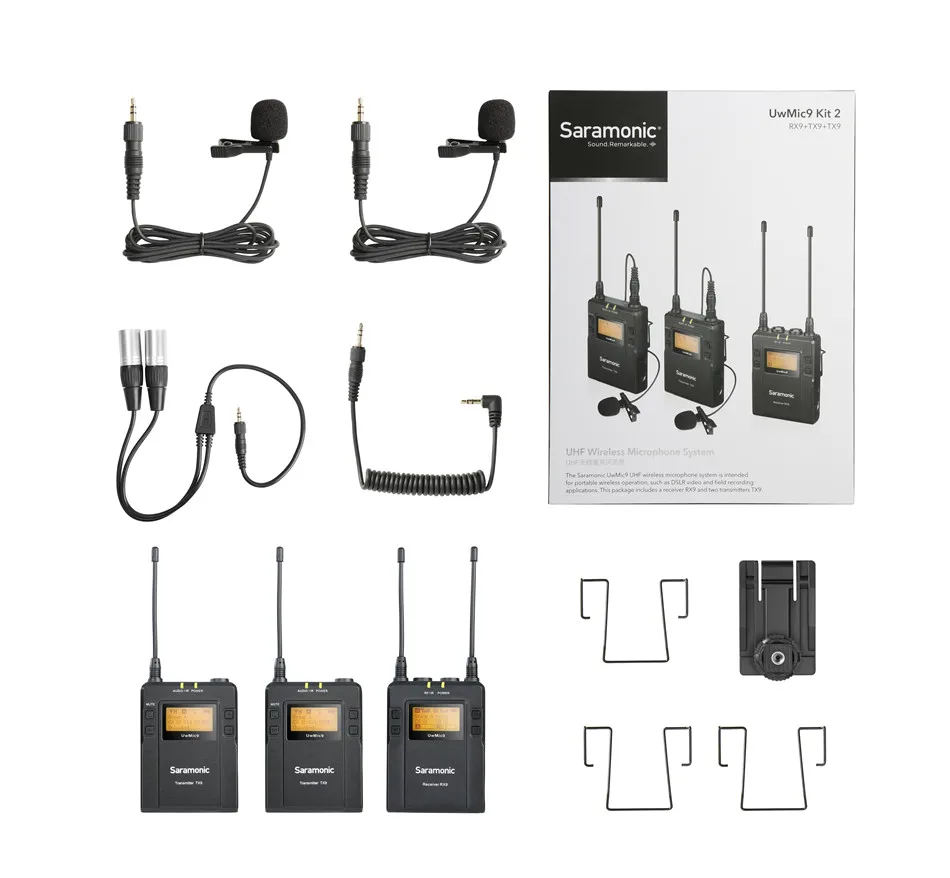

UwMic9 Kit 2
1 * Portable receiver: RX9
2 * Body-pack transmitter: TX9
2 * Omni-directional lavalier microphone
1 * 3.5mm locking-type plug audio cable
3 * Belt clip
2 * Wind screen
1 * XLR to 3.5mm locking-type plug audio cable
1 * Shoe mount adapter
2 * Microphone holder clip

UwMic9 TX9
1 * Body-pack transmitter: TX9
1 * Omni-directional lavalier microphone
1 * Belt clip
1 * Wind screen
1 * Microphone holder clip
