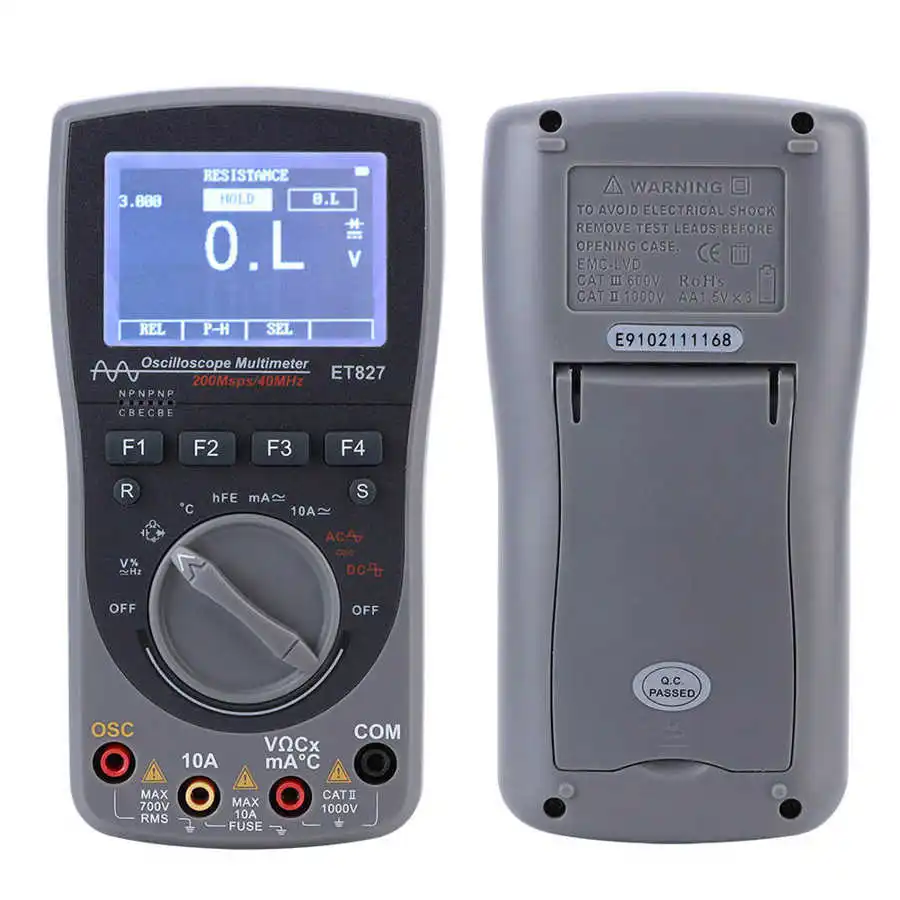

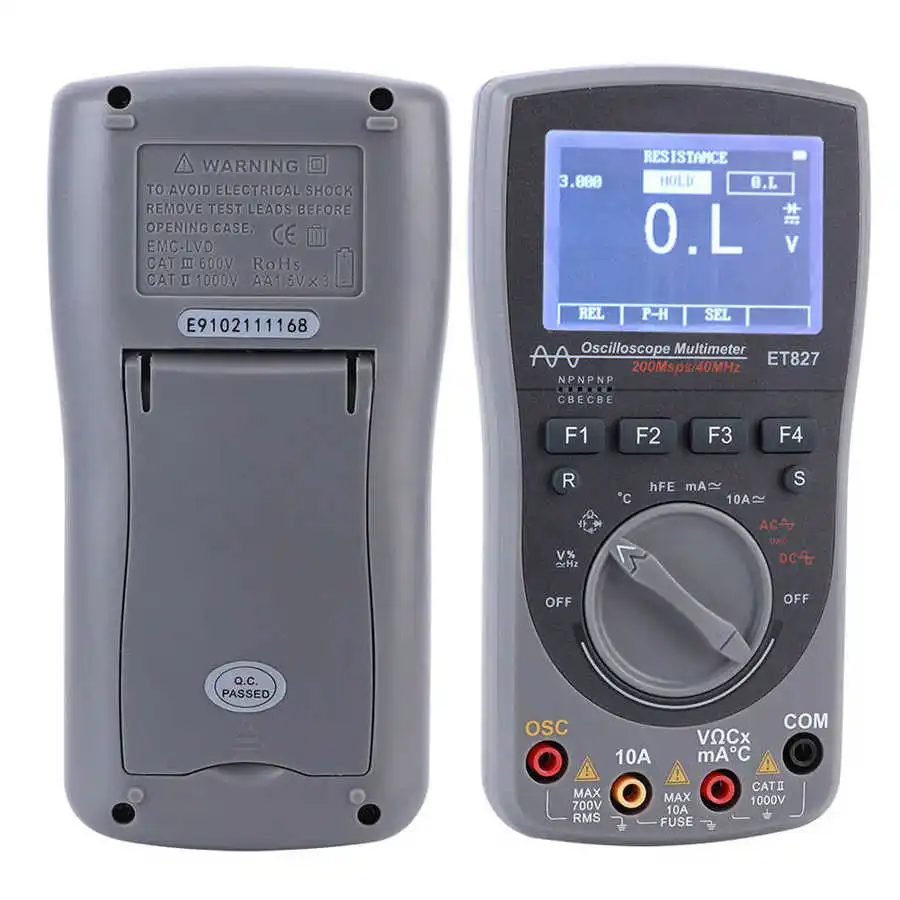

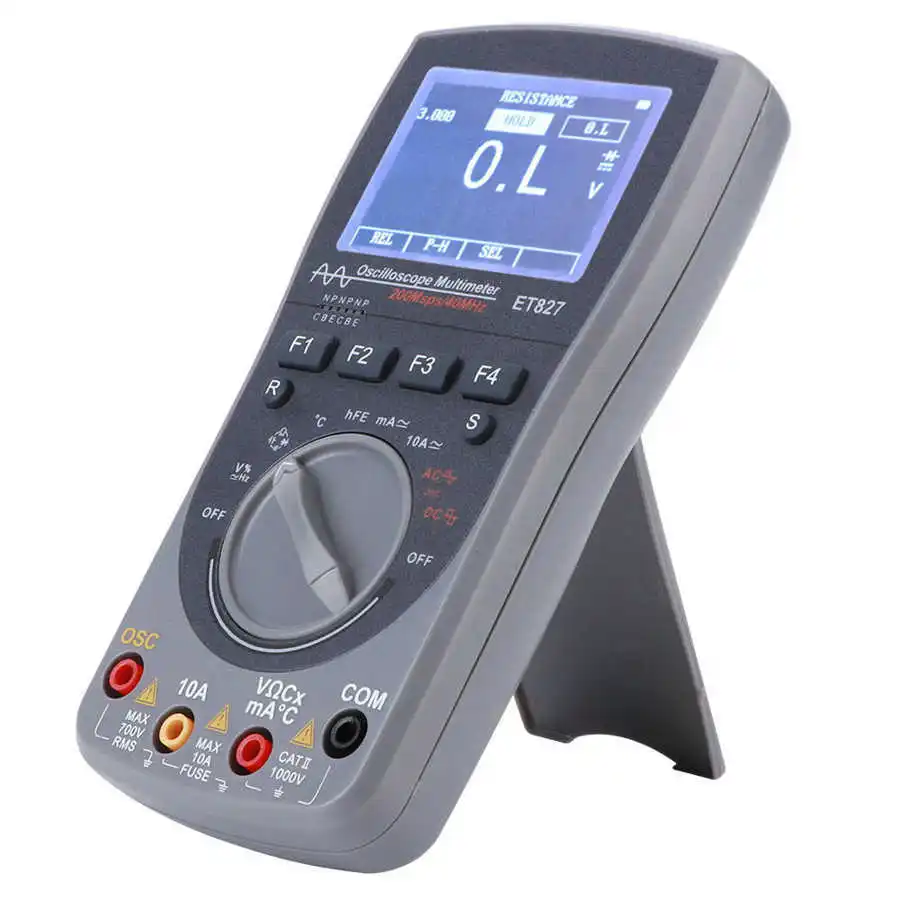

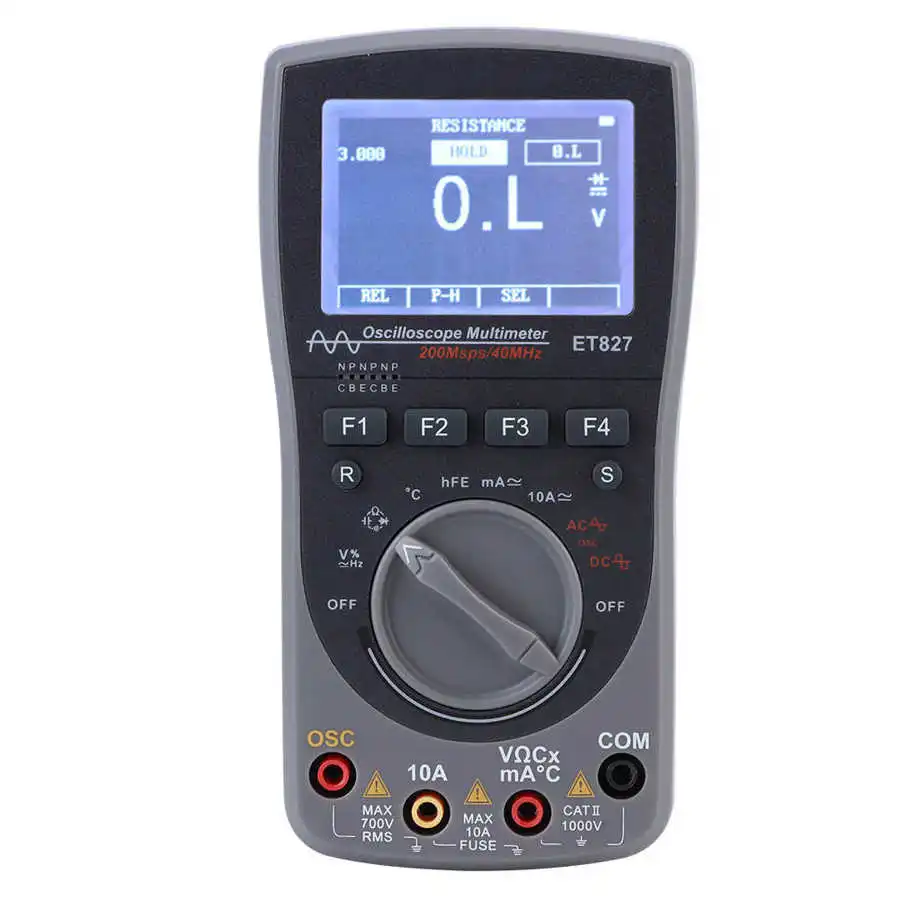

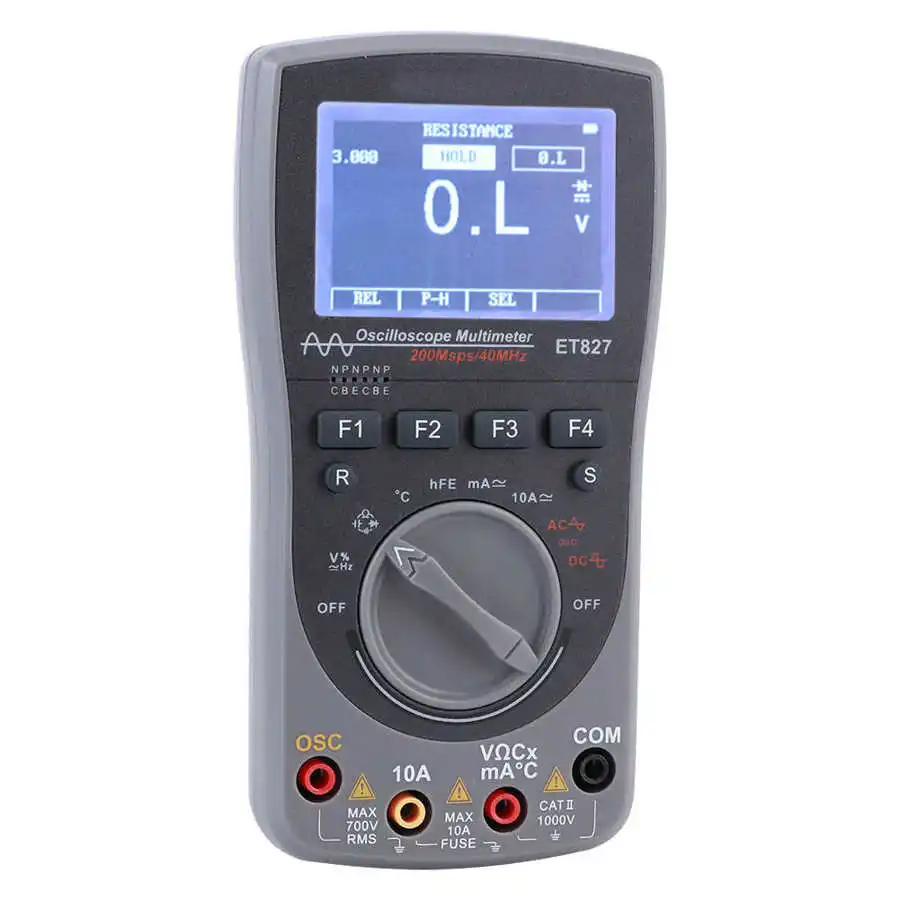

ET827 Multimeter 2 in 1 High Definition Screen 40Mhz 200Msps Handheld Professional Digital counts Meter Tester | Инструменты

ET827 Multimeter 2 in 1 High Definition Screen 40Mhz 200Msps Handheld Professional Digital Multimeter counts Meter Tester



Feature:

1. Waveform automatic mode, normal mode and single mode, can be used for different users' waveform requirements.
2. High definition screen ensures and provides with clear and intuitive display, bright backlight.
3. 2 in 1 function, multimeter + oscilloscope, easy to operate and fast measurement, practical to use.
4. The oscilloscope probe is not needed, and the waveform can be measured quickly and accurately.
5. The data waveform holding function in the measurement can be 100 data sets and 50 waveforms.



Specification:

Condition: 100% Brand New
Item Type: Oscilloscope Multimeter
Material: ABS

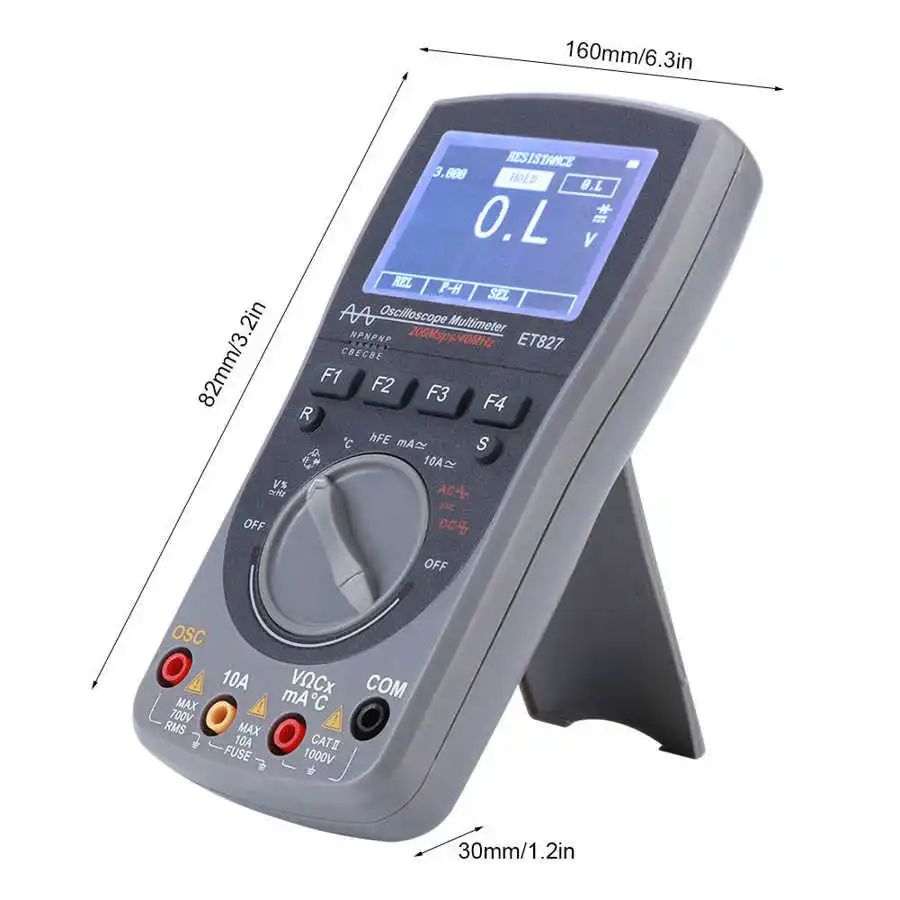

General Characteristics Display 240x160 crossbar graphics Backlight On Battery 3 x AA Batteries (Not Included) Low Voltage Prompt Yes Usage Time More than 8 hours Use Environment 0℃-40℃; <75%RH Product Size Approx. 160 x 82 x 30 mm / 6.3 x 3.2 x 1.2 in Analog Bandwidth 40MHZ Vertical Resolution 8bit Input Resistance About 10MQ Vertical Sensitivity Range 500mV/div-200V/div Vertical Amplitude Accuracy ±(5%+0.2div) Automatic 0 Reference During DC measurement Trigger Level ±6div (0.1div per step) Trigger Position Adjustment ±12div (0.1div per step) Cursor Measurement Function dV, dt, 1/dt (frequency) Automatic Measurement Accuracy ±(5%+0.2div) Observation Area 60x40 mm Input Resistance 10M&; Automatic Shut-Down 15 minutes or disabled Operating Height 0-2000m Storage Capacity 100DMM data, 50 OSC waveform records Storage Condition -10℃-60℃; <90%RH Weight Approx. 411g / 14.5oz Maximum Real-Time Sampling Rate 200MSPS Nonlinearity ±1bit Indexing Vertical ±6.0, horizontal 24.0 Time Base Range 12.5ns/div-10s/div Time Base Accuracy ±(0.01%+0.1div) Scan Mode Auto/normal/single Trigger Slope Selection Rising/falling edge Auto Configuration Automatically set time base and vertical amplitude Automatic Measurement Function Vp-p, Vavg, Vrms Record Length 24.0div Analog bandwidth to 40MHz refers to the bandwidth when the voltage is attenuated to 3db. When there is interference in the input signal, use a conversion connector and a special high-frequency shielded wire. Vertical attenuation is 1-2-5 range switching. Function Range Resolution Accuracy DC Voltage 600mV 0.1mV ±(1.0%rdg+10dgt) 6V 1mV 60V 10mV 600V 100mV 1000V 1V ±(1.5%rdg+10dgt) AC Voltage AC True RMS 600mV 0.1mV 50Hz~400Hz (1.5%rdg+10dgt) 400Hz-1kHz (above 1kHz, just for reference) ±(2.0%rdg+10dgt) 6V 1mV 60V 10mV 600V 100mV 750V 1V ±(2.0%rdg+10dgt) 50Hz~400Hz DC Current (A) 60/500mA 10uA/100uA ±(1.2%rdg+10dgt) 6/10A 1mA/10mA AC Current True RMS (A) 60.00/500.0mA 10uA/100μA ±(1.5%rdg+10dgt) 50Hz-1kHz (above 1kHz, just for reference) 6.000/10.00A 1mA/10mA Resistance (&;) 600&; 0.1&; ±(1.2%rdg+5dgt) 6K&; 1&; 60K&; 10&; 600K&; 100&; 6M&; 1K&; 60M&; 10K&; ±(3.0%rdg+10dgt) Capacitance (F) 9.999nF 1PF ±(3.0%rdg+10dgt) 99.99nF 10PF 999.9nF 100pF 9.999uF 1nF 99.99uF 10nF 999.9uF 100nF 9.999mF 1uF ±(10.0%rdg+10dgt) 99.99mF 10uF Temperature 0℃~600℃ 0.1℃ ±(2.0%rdg+2℃) Triode 1-1999 1   Frequency (HZ) 9.999Hz-9.999MHz 0.001Hz-1kHz ±(1.0%rdg+5dgt), (signal amplitude is not less than 1Vp-p, ACV or 20mA RMS, AC Duty Cycle 0.01-99.99% (AC500mVp-p) Diode Test Open circuit voltage is about 3.0V, maximum test current is about 2mA Continuity Test Judgment resistance: about 50&; Automatic Range Switching Can be applied to each measurement function Range Overflow Prompt O.L (Over Load) Multimeter Measurement Rate 2.5 times/second Dynamic Data Window After the main display is kept, continue to dynamically refurbish the actual measurement data Fuse Specification 500mA/250V10/500V

Package List:

1 x Oscilloscope Multimeter (Battery Not Included) 1 x K Thermocouple 2 x Test Lead 1 x Cloth Bag 1 x User Manual
